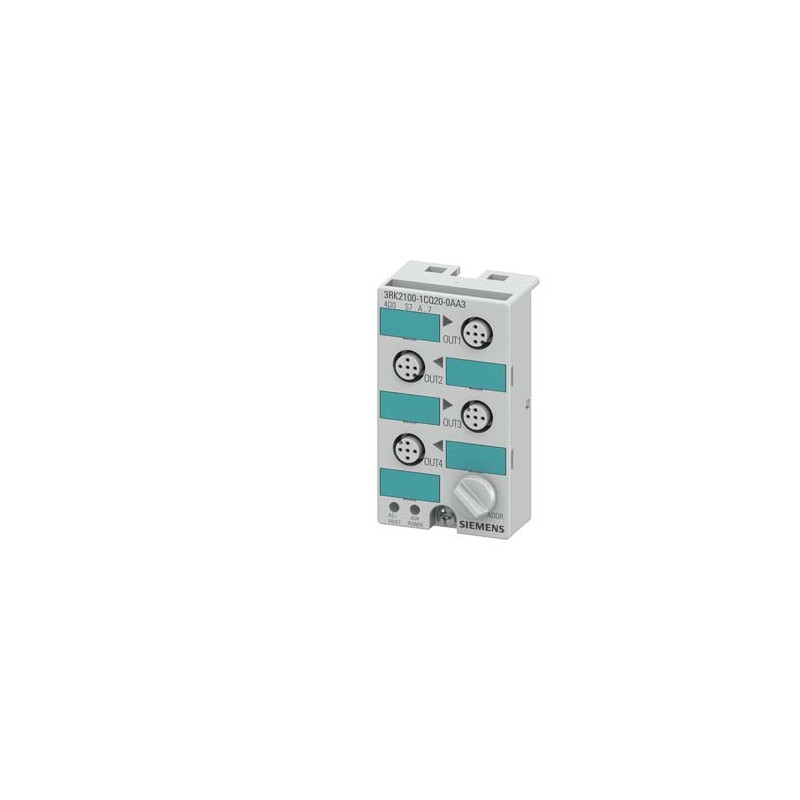

3RK2100-1CQ20-0AA3 SIEMENS AS-i compact module K45 digital A/B slave, 4 DQ, IP67 4 x output, 1 A 24 V DC max.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

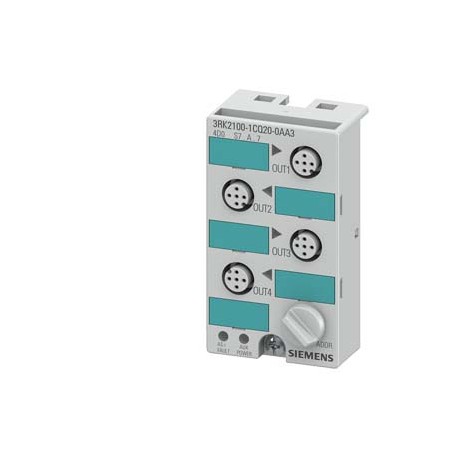

3RK2100-1CQ20-0AA3 SIEMENS AS-i compact module K45 digital A/B slave, 4 DQ, IP67 4 x output, 1 A 24 V DC max..

3RK2100-1CQ20-0AA3

SIEMENS

AS-i compact module K45 digital A/B slave, 4 DQ, IP67 4 x output, 1 A 24 V DC maximal 3 A for all outputs 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately

More details


PLC's > Fieldbus, decentr. periphery - digital I/O module

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total price: $224.93
Unit price: $224.93

Quantity Price
1+$224.93
2+$196.36
3+$192.32
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AS-i compact module K45 digital A/B slave, 4 DQ, IP67 4 x output, 1 A 24 V DC maximal 3 A for all outputs 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately
General technical data
design of the productdigital I/O modules for operation in the field, IP67 - K45
Type4 outputs
design of the slave typeA/B slave (Spec. 3.0)
I/O configuration7
ID/ID2 codeA/7
Number I/O sockets4
type of electrical connection of the inputs and outputsM12 screw-type terminals
AS interface total current input max45 mA
operating voltage according to AS-Interface spezification18 ... 31.6 V
Ground terminalUsing PIN5 on the M12 sockets. Outgoing via flat tab sleeve (2.8 x 0.8 mm form A)
Addressingfront addressing socket
AS interface Connection Polarity reversal protectionbuilt-in
Delivery notethe modules are delivered without mounting plate
Note 1An external additional supply (AUX POWER) of 20 to 30 V DC is required for the supply of the output circuits. The additional supply must comply with VDE 0106 (PELV), protection class III.
Note 2This module requires a master according to AS-i specifications 3.0
Sensor supply
input voltage16.5 ... 30 V
ampacity of the sensor supply for all inputs
● at ambient temperature 40 °C200 mA
Inputs
number of digital inputs0
Input circuitPNP transistor
Inputs socket assignment
● PIN 5ground terminal
Outputs
number of digital outputs4
type of voltage of output voltagesDC
Outputs external power supply 24 V DCusing black AS-Interface flat cable
ampacity of the semiconductor output at DC-13 at 24 V1 A
Outputs aggregate current
● max3 A
type of switching outputPNP transistor
design of the pin assignment of the outputsstandard assignement
Outputs socket assignment3 = "-", 4 = output, 5 = ground terminal
property of the output short-circuit proofYes
Outputs
● short-ciruit protectionbuilt-in
● induction protectionbuilt-in
● watchdogbuilt-in
Display
Status display
● display of I/Osyellow LED
● display of Uauxgreen LED
● display of AS-Interface/diagnosticsgreen/red dual LED
Assignment of the data bits
Assignment of data bits
● socketPIN 4 = OUT1 (D0)
● socket 2PIN 4 = OUT2 (D1)
● socket 3PIN 4 = OUT3 (D2)
● socket 4PIN 4 = OUT4 (D3)
Ambient conditions
ambient temperature
● during operation-25 ... +85 °C
● during storage-40 ... +85 °C
protection class IPIP67
Mechanical data
width45 mm
height80 mm
depth30 mm
fastening methodstandard rail mounting/wall mounting using mounting plate for K45 compact module
shock resistance15g / 11 ms
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

CSA

Confirmation

UL

EAC

RCM

EC/EU-Declaration of Conformity

Marine / Shippingother

ABS (American Bureau of Shipping)

PRS / Polski Rejestr Statkow

RMRS / Russian Maritime Register

ASI-Certification

Confirmation

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:3/11/2021
Date
5/5/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3RK2100-1CQ20-0AA3
Product DescriptionAS-i compact module K45 digital A/B slave, 4 DQ, IP67 4 x output, 1 A 24 V DC maximal 3 A for all outputs 4 x M12 socket Mounting plate 3RK1901-2EA00 or 3RK1901-2DA00 must be ordered separately
Product familyDigital I/O modules, IP67 - K45
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42C / 42C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works120 Day/Days
Net Weight (kg)0,100 Kg
Packaging Dimension50,00 x 105,00 x 45,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209543768
UPC887621548544
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group3720
Group CodeR711
Country of originCzech Republic
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-04
eClass7.127-24-26-04
eClass827-24-26-04
eClass927-24-26-04
eClass9.127-24-26-04
ETIM5EC001599
ETIM6EC001599
ETIM7EC001599
ETIM8EC001599
IDEA43566
UNSPSC1532-15-17-05

ETIM data

ETIM: EC001599 - Fieldbus, decentr. periphery - digital I/O module

Value Unit
SIL according to IEC 61508 (EF009889) -
Supply voltage AC 50 Hz (EF007532) ['-', '-']V
Supply voltage AC 60 Hz (EF007533) ['-', '-']V
Supply voltage DC (EF007534) ['-', '-']V
Voltage type of supply voltage (EF002991) DC
Number of digital inputs (EF001992) 0
Number of digital outputs (EF001993) 4
Digital inputs configurable (EF008516) FALSE
Digital outputs configurable (EF008520) false
Permitted voltage at input (EF007554) ['-', '-']V
Type of voltage (input voltage) (EF003033) #NO_DATA# / DC
Type of digital output (EF003601) Other
Output current (EF003202) 1.0A
Permitted voltage at output (EF007553) ['-', '-']V
Type of output voltage (EF008222) DC / DC
Short-circuit protection, outputs available (EF003203) true
Number of HW-interfaces industrial Ethernet (EF003020) 0
Number of interfaces PROFINET (EF006932) 0
Number of HW-interfaces RS-232 (EF003021) 0
Number of HW-interfaces RS-422 (EF003022) 0
Number of HW-interfaces RS-485 (EF003023) 0
Number of HW-interfaces serial TTY (EF003024) 0
Number of HW-interfaces parallel (EF003026) 0
Number of HW-interfaces Wireless (EF006933) 0
Number of HW-interfaces USB (EF003025) 0
Number of HW-interfaces other (EF003027) 0
With optical interface (EF003028) false
Supporting protocol for TCP/IP (EF003050) false
Supporting protocol for PROFIBUS (EF003052) false
Supporting protocol for CAN (EF003053) false
Supporting protocol for INTERBUS (EF003054) false
Supporting protocol for ASI (EF003051) true
Supporting protocol for KNX (EF003055) false
Supporting protocol for Modbus (EF003057) false
Supporting protocol for Data-Highway (EF003058) false
Supporting protocol for DeviceNet (EF003059) false
Supporting protocol for SUCONET (EF003060) false
Supporting protocol for LON (EF003017) false
Supporting protocol for PROFINET IO (EF007525) false
Supporting protocol for PROFINET CBA (EF007524) false
Supporting protocol for SERCOS (EF006657) false
Supporting protocol for Foundation Fieldbus (EF007522) false
Supporting protocol for EtherNet/IP (EF007521) false
Supporting protocol for AS-Interface Safety at Work (EF007519) false
Supporting protocol for DeviceNet Safety (EF007520) false
Supporting protocol for INTERBUS-Safety (EF006662) false
Supporting protocol for PROFIsafe (EF007526) false
Supporting protocol for SafetyBUS p (EF007527) false
Supporting protocol for other bus systems (EF003062) false
Radio standard Bluetooth (EF007178) false
Radio standard WLAN 802.11 (EF007179) false
Radio standard GPRS (EF008523) false
Radio standard GSM (EF008524) false
Radio standard UMTS (EF008525) false
IO link master (EF007298) false
System accessory (EF004118) true
Degree of protection (IP) (EF005474) IP67
Type of electric connection (EF003961) Screw connection
Time delay at signal exchange (EF002382) ['-', '-']ms
Fieldbus connection over separate bus coupler possible (EF004002) -
Rail mounting possible (EF003972) FALSE
Wall mounting/direct mounting (EF007020) FALSE
Front build in possible (EF007016) false
Rack-assembly possible (EF007018) false
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) -
Performance level according to EN ISO 13849-1 (EF007399) -
Appendant operation agent (Ex ia) (EF004141) -
Appendant operation agent (Ex ib) (EF004142) -
Explosion safety category for gas (EF003997) None
Explosion safety category for dust (EF003998) None
Width (EF000008) 45.0mm
Height (EF000040) 80.0mm
Depth (EF000049) 30.0mm
Input current at signal 1 (EF001428) -mA


Datasheet - PDF

▲
