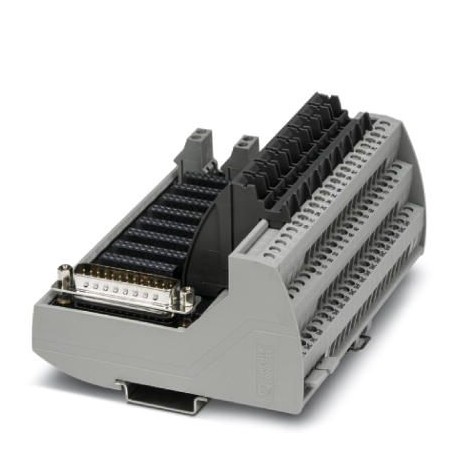

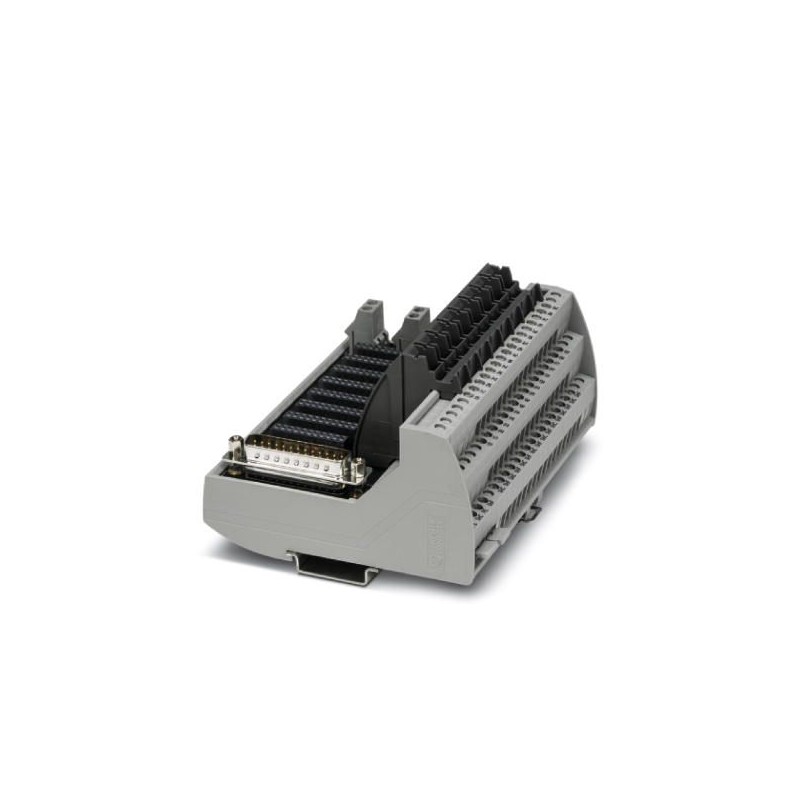

VIP/S/D25M/BASE 1-8/L/C/EX 2906595 PHOENIX CONTACT Base module
VIP/S/D25M/BASE 1-8/L/C/EX
2906595
PHOENIX_CONTACT
Base module
Marshalling 8-channel VIP I/O base element for universal use. All connections as screw connection technology. Using the D-SUB 25 connector, this module is pin-compatible with the Foxboro I/A Series PLS.
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2906595 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 552 (C-5-2017) |
| GTIN | 4055626184609 |
| Weight per Piece (excluding packing) | 396.400 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 75 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
General
| Max. operating voltage Umax | 30 V DC (field terminals) |
|---|---|
| Max. operating voltage | 30 V DC (field terminals) |
| 230 V AC (field terminals) | |
| 30 V DC (A and B terminals) | |
| 30 V DC (D-SUB 25 connector) | |
| Max. perm. current (per branch) | 3 A (field signal) |
| 1 A (control contacts) | |
| Max. permissible current | 4 A (A and B terminals) |
| Max. permissible total current | 15 A (per module) |
| Status display | No |
| Mounting position | As desired on 35 mm DIN rail in acc. with EN 60715 |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Torque | 0.5 Nm ... 0.6 Nm |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB 25 |
| Torque | 0.3 Nm ... 0.34 Nm |
| Number of connections | 1 |
| Number of positions | 25 |
Safety data
| Input voltage Ui | 30 V (per channel) |
|---|---|
| Input current Ii | 1 A (per channel) |
| Inductance Li | 0 mH |
| Capacitance Ci | 0 µF |
| ATEX | Sira 17ATEX4367X Ex II 3G Ex nA IIC T4 Gc; Ex II (3)G [Ex ic Gc] IIC; Ex II (3)D [Ex ic Dc] IIIC Ex II 3(3)G Ex nA [ic] IIC T4 Gc; Ex II (3)D [Ex ic Dc] IIIC Sira 18ATEX2007X Ex II 3(1)G Ex nA [ia Ga] IIC T4 Gc; Ex II (1)G [Ex ia Ga] IIC Ex II 3G (1)D Ex nA [ia IIIC Da] IIC T4 Gc; Ex II (1)D [Ex ia DA] IIIC |
| IECEx | IECEx SIR 17.0086X Ex nA IIC T4 Gc; Ex nA [ic] IIC T4 Gc; [Ex ic Gc] IIC; [Ex ic Dc] IIIC Ex nA [ia Ga] IIC T4 Gc; Ex nA [ic IIIC Dc] IIC T4 Gc; Ex nA [ia IIIC Da] IIC T4 Gc; [Ex ia Ga] IIC; [Ex ia Da] IIIC |
| FM approval | Nonincendive: Class I, Div. 2, Groups ABCD T4 Connection to Class I, II, III, Div. 2, Groups ABCDEFG Class I, Zone 2, AEx nA IIC T4 Gc Class I, Zone 2 with connection to Class I, Zone 2, AEx nA [ic Gc] IIC T4 Gc Class I, Zone 2 with connection to Class I, Zone 0, AEx nA [ia Ga] IIC T4 Gc Class I, Zone 2 with connection to Zone 22, AEx nA [ic IIIC Dc] IIC T4 Gc Class I, Zone 2 with connection to Zone 20, AEx nA [ia IIIC Da] IIC T4 Gc |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
| CSA, USA/Canada | Nonincendive: Class I, Div. 2, Groups ABCD T4 Connection to Class I, II, III, Div. 2, Groups ABCDEFG Class I, Zone 2, (A)Ex nA IIC T4 Gc, Class I, Zone 2 Class I, Zone 2 with connection to Class I, Zone 2, (A)Ex nA [ic] IIC T4 Gc Class I, Zone 2 with connection to Class I, Zone 0, (A)Ex nA [ia Ga] IIC T4 Gc Class I, Zone 2 with connection to Zone 22, (A)Ex nA [ic IIIC Dc] IIC T4 Gc Class I, Zone 2 with connection to Zone 20, (A)Ex nA [ia IIIC Dc] IIC T4 Gc |
| Safety-related maximum voltage Um | 253 V AC/DC (A and B terminals and D-SUB 25) |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| DIN EN 50178 | |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Conformance | ANSI/ISA 60079-0; 60079-11; 60079-15 |
| ANSI/IEC 60529 | |
| FM 3600; 3611; 3810 | |
| ATEX | Sira 17ATEX4367X Ex II 3G Ex nA IIC T4 Gc; Ex II (3)G [Ex ic Gc] IIC; Ex II (3)D [Ex ic Dc] IIIC Ex II 3(3)G Ex nA [ic] IIC T4 Gc; Ex II (3)D [Ex ic Dc] IIIC Sira 18ATEX2007X Ex II 3(1)G Ex nA [ia Ga] IIC T4 Gc; Ex II (1)G [Ex ia Ga] IIC Ex II 3G (1)D Ex nA [ia IIIC Da] IIC T4 Gc; Ex II (1)D [Ex ia DA] IIIC |
| IECEx | IECEx SIR 17.0086X Ex nA IIC T4 Gc; Ex nA [ic] IIC T4 Gc; [Ex ic Gc] IIC; [Ex ic Dc] IIIC Ex nA [ia Ga] IIC T4 Gc; Ex nA [ic IIIC Dc] IIC T4 Gc; Ex nA [ia IIIC Da] IIC T4 Gc; [Ex ia Ga] IIC; [Ex ia Da] IIIC |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4 Class I, Zone 2, IIC T4 |
| CSA, USA/Canada | Nonincendive: Class I, Div. 2, Groups ABCD T4 Connection to Class I, II, III, Div. 2, Groups ABCDEFG Class I, Zone 2, (A)Ex nA IIC T4 Gc, Class I, Zone 2 Class I, Zone 2 with connection to Class I, Zone 2, (A)Ex nA [ic] IIC T4 Gc Class I, Zone 2 with connection to Class I, Zone 0, (A)Ex nA [ia Ga] IIC T4 Gc Class I, Zone 2 with connection to Zone 22, (A)Ex nA [ic IIIC Dc] IIC T4 Gc Class I, Zone 2 with connection to Zone 20, (A)Ex nA [ia IIIC Dc] IIC T4 Gc |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127250313eCl@ss 6.027242600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | D-Sub |
| Number of poles (EF001391) | 25 |
| Rated current (EF000227) | 4 A |
| Depth (EF000049) | 72.2 mm |
| Width (EF000008) | 123.1 mm |
| Height (EF000040) | 102.7 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
