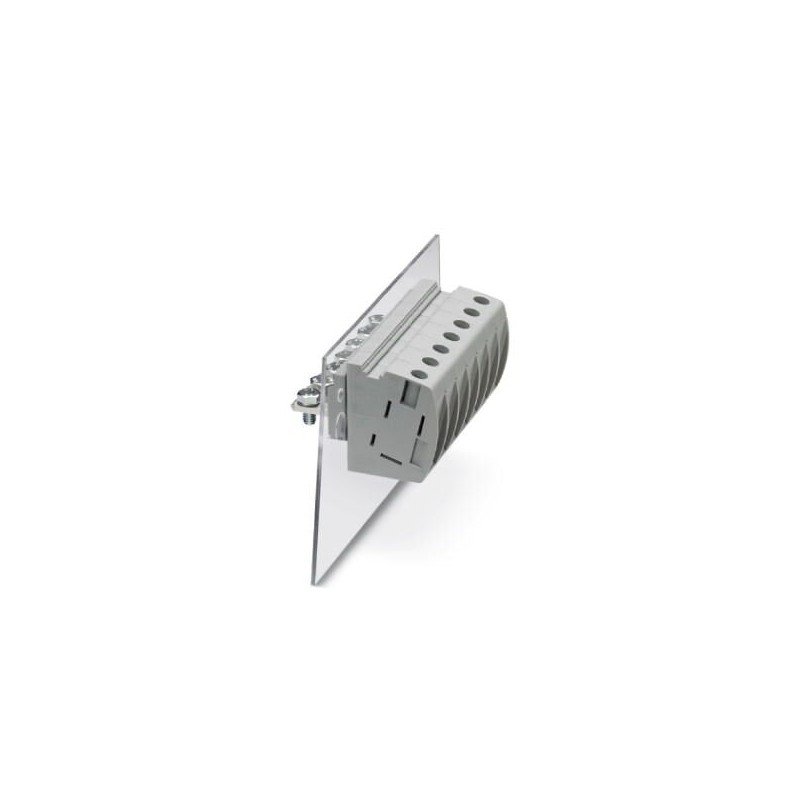

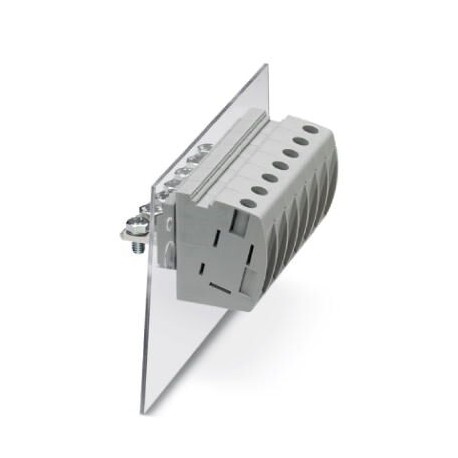

UW 25-POT BK 1036567 PHOENIX CONTACT Panel feed-through terminal block, number of positions: 1
UW 25-POT BK
1036567
PHOENIX_CONTACT
25
Panel feed-through terminal block, number of positions: 1
Terminal blocks > Panel feed-through terminal block
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Item properties
| Brief article description | Panel feed-through terminal block |
|---|---|
| Range of articles | UW 25-POT |
| Pitch | 15.1 mm |
| Number of positions | 1 |
| Connection method | Screw connection with tension sleeve |
| Number of connections | 2 |
| Number of potentials | 1 |
Connection capacity, external
| Connection method | Screw connection with tension sleeve |
|---|---|
| Connection direction of the conductor to plug-in direction | 0 ° |
| Conductor cross section solid | 6 mm² ... 35 mm² |
| Conductor cross section flexible | 10 mm² ... 25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 4 mm² ... 25 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 4 mm² ... 25 mm² |
| 2 conductors with same cross section, solid | 2.5 mm² ... 10 mm² |
| 2 conductors with same cross section, flexible | 4 mm² ... 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve | 2.5 mm² ... 10 mm² |
| 2 conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve | 2.5 mm² ... 10 mm² |
| Internal cylindrical gage | B7 |
| Stripping length | 19 mm |
| Torque | 4 Nm ... 4.5 Nm |
Connection capacity, internal
| Connection method | Cable lug connection |
|---|---|
| Connection direction of the conductor to plug-in direction | 0 ° |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | tin-plated |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
General product information
| Type of note | Notes on safety |
|---|---|
| Note on application | |
| Note | The cable entry funnel is not touch-proof. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch proofness. |
| To maintain the nominal voltage, align the cable lugs straight and centered, and cast the terminals on the inside. |
Air clearances and creepage distances
| Rated insulation voltage (III/3) | 630 V |
|---|---|
| Rated surge voltage (III/3) | 6 kV |
Standards and Regulations
| Safety note | • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. |
|---|---|
| • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
| • The cable entry funnel is not safe to touch. Never connect or disconnect the terminal when it is energized. Take appropriate steps to ensure touch protection. | |
| • To maintain the nominal voltage, align the cable lugs straight and centered, and cast the terminals on the inside. |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.0 | 27141100 |
|---|---|
| eCl@ss 5.1 | 27141100 |
| eCl@ss 6.0 | 27141100 |
| eCl@ss 7.0 | 27141134 |
| eCl@ss 8.0 | 27141134 |
| eCl@ss 9.0 | 27141134 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
