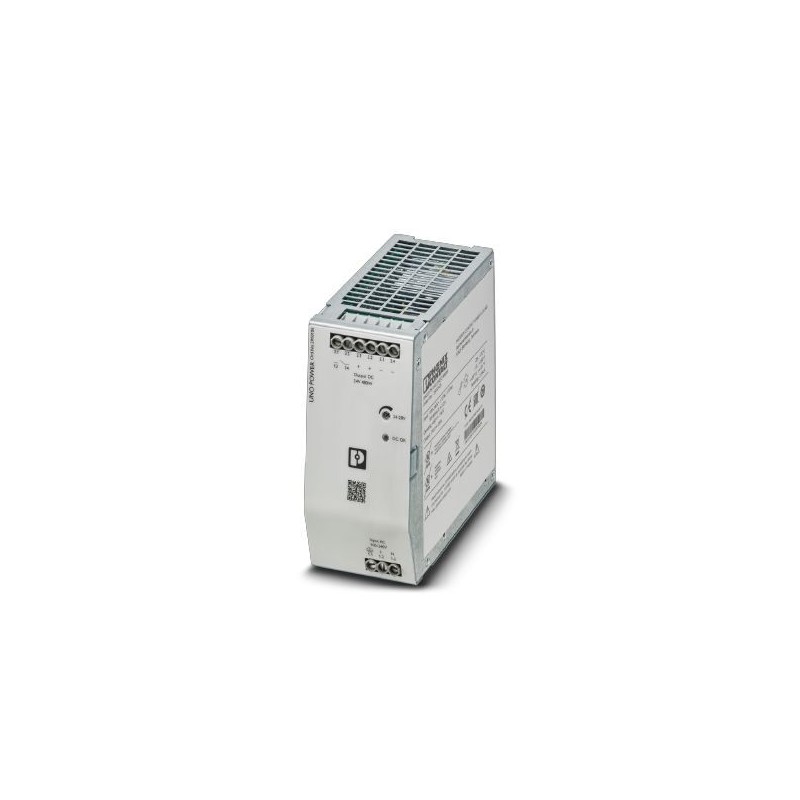

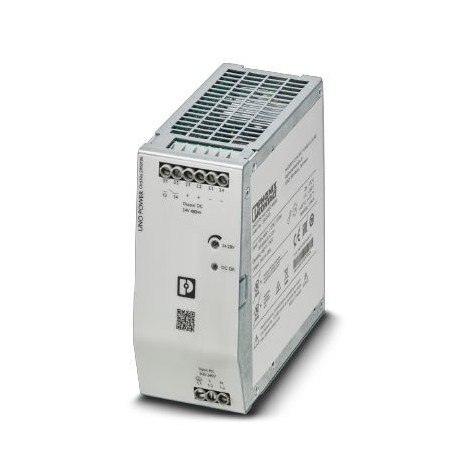

UNO2-PS/1AC/24DC/480W 2910105 PHOENIX CONTACT Primary Switching Power Supplies, UNO POWER, Screw Connection,..
UNO2-PS/1AC/24DC/480W
2910105
PHOENIX_CONTACT
Primary Switching Power Supplies, UNO POWER, Screw Connection, DIN Rail Mounting, Input: 1 Phase, Output: 24 V DC / 20 A, Adjustable from 24 V DC ... 28 V DC
Primary switching power supplies, UNO POWER, Screw connection, Rail mounting, input:1phase, output: 24 VDC / 20 A
Primary-switched power supply unit, UNO POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 20 A
Low-voltage industrial components > DC-power supply
Power Supplies (PS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2910105 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 268 (C-4-2019) |
| GTIN | 4055626456652 |
| Weight per Piece (excluding packing) | 1,240.000 g |
| Custom tariff number | 85044030 |
| Country of origin | TH (Thailand) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Dimensions
| Width | 59 mm |
|---|---|
| Height | 130 mm |
| Depth | 125 mm |
| Installation distance right/left (active, passive) | 0 mm / 0 mm (POut≥50% ) |
| Installation distance top/bottom (active, passive) | 30 mm / 30 mm (POut≥50% ) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Flammability rating according to UL 94 | V0 () |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 55 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) | -40 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
| Installation height | ≤ 3000 m (> 2000 m, Derating: 10 %/1000 m) |
General
| Net weight | 1 kg |
|---|---|
| Environmental protection directive | RoHS Directive 2011/65/EU |
| WEEE | |
| Reach | |
| Efficiency | typ. 93 % (120 V AC) |
| typ. 94.6 % (230 V AC) | |
| MTBF (IEC 61709, SN 29500) | > 900000 h (25 °C) |
| > 530000 h (40 °C) | |
| > 280000 h (55 °C) | |
| Insulation voltage input/output | 4 kV AC (type test) |
| 3 kV AC (routine test) | |
| Insulation voltage input / PE | 3.5 kV AC (type test) |
| 2.4 kV AC (routine test) | |
| Degree of protection | IP20 |
| Protection class | I |
| Housing material | Aluminum (AlMg3) / sheet steel, zinc-plated |
| Foot latch material | Sheet steel, zinc-plated |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: 0 mm horizontally, 30 mm vertically |
Standards
| EMC requirements for noise immunity | EN 61000-6-2 |
|---|---|
| Standard designation | Safety of power supply units up to 1100 V (insulation distances) |
| Standards/regulations | DIN EN 61558-2-16 |
| Standard designation | Electrical safety |
| Standards/regulations | IEC 61010-2-201 (SELV) |
| Standard designation | Equipping high voltage installations with electronic equipment |
| Standards/regulations | EN 50178/VDE 0160 (PELV) |
| Standard designation | Safety for equipment for measurement, control, and laboratory use |
| Standards/regulations | IEC 61010-1 |
| Standard designation | Safety extra-low voltage |
| Standards/regulations | IEC 61010-1 (SELV) |
| IEC 61010-2-201 (PELV) | |
| Standard designation | Safe isolation |
| Standards/regulations | IEC 61558-2-16 |
| IEC 61010-2-201 | |
| Standard designation | Limitation of harmonic line currents |
| Standards/regulations | EN 61000-3-2 |
| Standard designation | Requirement of the semiconductor industry with regard to mains voltage dips |
| Standards/regulations | SEMI F47 - 0706 (185 V AC) |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Conducted noise emission | EN 55016 |
| EN 61000-6-3 (Class B) | |
| Noise emission | EN 55016 |
| EN 61000-6-3 (Class B) | |
| Harmonic currents | EN 61000-3-2 |
| EN 61000-3-2 (Class A) | |
| Electrostatic discharge | EN 61000-4-2 |
| Contact discharge | 6 kV (Test Level 3) |
| Discharge in air | 8 kV (Test Level 3) |
| Electromagnetic HF field | EN 61000-4-3 |
| Frequency range | 80 MHz ... 1 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 1 GHz ... 2 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Frequency range | 2 GHz ... 3 GHz |
| Test field strength | 10 V/m (Test Level 3) |
| Comments | Criterion A |
| Fast transients (burst) | EN 61000-4-4 |
| Input | 4 kV (Test Level 4 - asymmetrical) |
| Output | 2 kV (Test Level 3 - asymmetrical) |
| Comments | Criterion A |
| Surge voltage load (surge) | EN 61000-4-5 |
| Input | 2 kV (Test Level 3 - symmetrical) |
| 4 kV (Test Level 4 - asymmetrical) | |
| Output | 1 kV (Test Level 2 - symmetrical) |
| 2 kV (Test Level 3 - asymmetrical) | |
| Comments | Criterion A |
| Conducted interference | EN 61000-4-6 |
| Frequency range | 0.15 MHz ... 80 MHz |
| Voltage | 10 V (Test Level 3) |
| Comments | Criterion A |
| Voltage dips | EN 61000-4-11 |
| Voltage | 230 V AC |
| Frequency | 50 Hz |
| Voltage dip | 70 % |
| Number of periods | 25 / 30 periods |
| Comments | Criterion A |
| Voltage dip | 40 % |
| Number of periods | 12 periods |
| Additional text | Test Level 2 |
| Comments | Criterion A |
| Voltage dip | 0 % |
| Number of periods | 1 period |
| Additional text | Test Level 2 |
| Comments | Criterion B |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Voltage type (supply voltage) (EF002991) | AC |
| 1st secondary output voltage (EF006792) | 24 V |
| Max. output current 1 (EF008284) | 20 A |
| Secondary voltage adjustable (EF007002) | Yes |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output current 1 (EF009396) | 20 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 85 V |
| Rated supply voltage AC 60 Hz (EF007077) | 85 V |
| Output voltage stabilized (EF003092) | Yes |
| Power output (EF003034) | 480 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in height (EF000332) | 130 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 59 mm |
| Height (EF000040) | 130 mm |
| Depth (EF000049) | 129 mm |
| Suitable for safety functions (EF001597) | Yes |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
