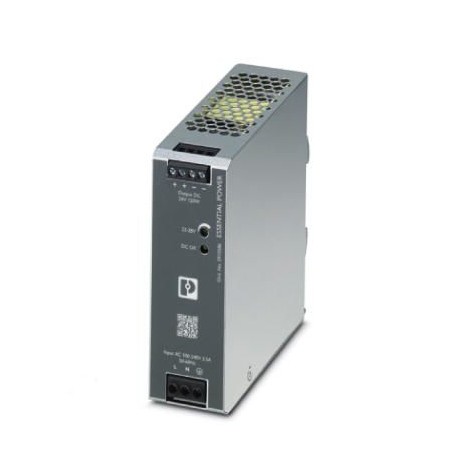

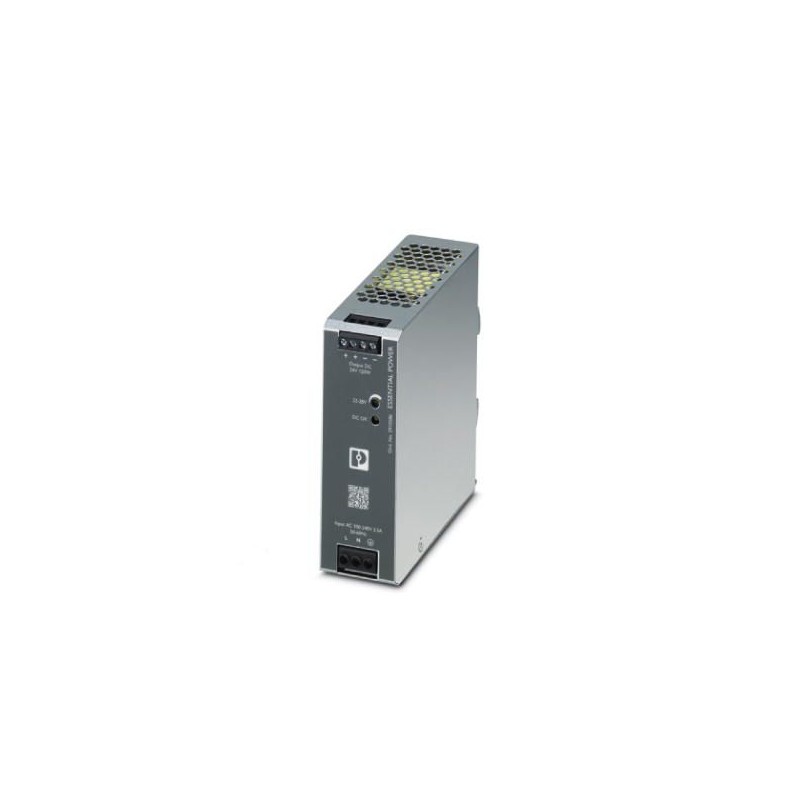

ESSENTIAL-PS/1AC/24DC/120W/EE 2910586 PHOENIX CONTACT Power supply unit
ESSENTIAL-PS/1AC/24DC/120W/EE
2910586
PHOENIX_CONTACT
Power supply unit
ESSENTIAL edition primary switching power supply for rail mounting, input: single-phase, output: 24 V DC/120 W
Low-voltage industrial components > DC-power supply
Power Supplies (PS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2910586 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626464411 |
| Weight per Piece (excluding packing) | 674.800 g |
| Custom tariff number | 85044030 |
| Country of origin | TH (Thailand) |
Dimensions
| Width | 40 mm |
|---|---|
| Height | 123.6 mm |
| Depth | 117.6 mm |
| Installation distances left/right | 10 mm |
| Installation distances top/bottom | 50 mm |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Degree of pollution | 2 |
| Installation height | ≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
Input data
| Nominal input voltage range | 100 V AC ... 240 V AC |
|---|---|
| Input voltage range | 85 V AC ... 264 V AC (< 100 V AC derating 1%/V AC) |
| AC frequency range | 47 Hz ... 63 Hz |
| Discharge current to PE | < 0.25 mA (264 V AC) |
| Current consumption | 2.2 A (115 V AC) |
| 1.2 A (230 V AC) | |
| Inrush surge current | typ. 20 A (115 V AC) |
| typ. 40 A (230 V AC) | |
| Mains buffering | typ. 20 ms (115 V AC) |
| typ. 90 ms (230 V AC) | |
| Input fuse | 4 A (slow-blow, internal) |
| Type of protection | Transient surge protection |
| Protective circuit/component | Varistor |
Output data
| Nominal output voltage | 24 V DC ±2 % |
|---|---|
| Setting range of the output voltage (USet) | 22 V DC ... 28 V DC (max. power ≤ 120 W) |
| Nominal output current (IN) | 5 A |
| Derating | -20 °C ... -10 °C (2 % / °C) |
| > 40 °C (1.67 % / °C, 115 V AC) | |
| > 50 °C (2.5 % / °C, 230 V AC) | |
| Max. capacitive load | 8000 μF |
| Active current limitation | 105% - 150% of the max. output power (in the event of short circuit) |
| Residual ripple | < 120 mVPP(-10 °C ... +70 °C) |
| < 240 mVPP(-20 °C ... -10 °C) | |
| Output power | 120 W |
| Typical response time | 200 ms |
| Maximum power dissipation in no-load condition | 0.65 W (115 V AC / 230 V AC) |
| Power loss nominal load max. | 13.3 W (115 V AC / 230 V AC) |
General
| Net weight | 0.54 kg |
|---|---|
| Operating voltage display | Green LED |
| Efficiency | 85 % (115 V AC) |
| 88 % (230 V AC) | |
| Insulation voltage input/output | 3 kV AC |
| Insulation voltage input / PE | 2 kV AC |
| Insulation voltage output / PE | 0.5 kV AC |
| Protection class | I (with PE connection) |
| Degree of protection | IP20 |
| MTBF (Telcordia SR-332) | > 700000 h |
| Assembly instructions | alignable: horizontally 10 mm, vertically 50 mm |
Connection data, input
| Connection method | Screw connection |
|---|---|
| Conductor cross section AWG min. | 18 |
| Conductor cross section AWG max. | 8 |
| Stripping length | 7 mm |
Connection data, output
| Connection method | Screw connection |
|---|---|
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise immunity | EN 61000-6-2 |
| EN 61000-6-1 | |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| Standard - Electrical safety | EN 60950-1 |
| Standard – Safety extra-low voltage | EN 60950-1 (SELV) |
| UL approvals | UL/C-UL listed UL 508 |
| Shock | IEC 60068-2-27, 27, half sinusoidal wave: 50g for 11 ms; 3x per direction, 9x overall |
| Vibration (operation) | IEC 60068-2-6, sinusoidal waves: 10 Hz ... 500 Hz, 19,6 m/s² (2g peak), 10 min. per cycle, 60 min. in the X direction |
| Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47 - 0706 (200 V AC) |
Classifications
| Feature Name | Feature Value |
|---|---|
| 1st secondary output voltage (EF006792) | 22 V |
| Max. output current 1 (EF008284) | 5 A |
| Secondary voltage adjustable (EF007002) | Yes |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Nominal value output current 1 (EF009396) | 5 A |
| Short-circuit-proof (EF007332) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 85 V |
| Rated supply voltage AC 60 Hz (EF007077) | 100 V |
| Rated supply voltage DC (EF007078) | 120 V |
| Output voltage stabilized (EF003092) | Yes |
| Power consumption (EF000346) | 249.56 VA |
| Power output (EF003034) | 120 W |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting possible (EF003973) | No |
| Modular version (EF001126) | No |
| Built-in height (EF000332) | 123.6 mm |
| Direct mounting possible (EF005689) | No |
| Width (EF000008) | 40 mm |
| Height (EF000040) | 123.6 mm |
| Depth (EF000049) | 117.6 mm |
| Suitable for safety functions (EF001597) | Yes |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Degree of protection (IP) (EF005474) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
