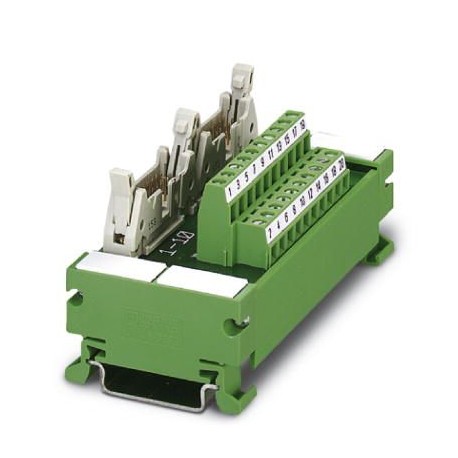

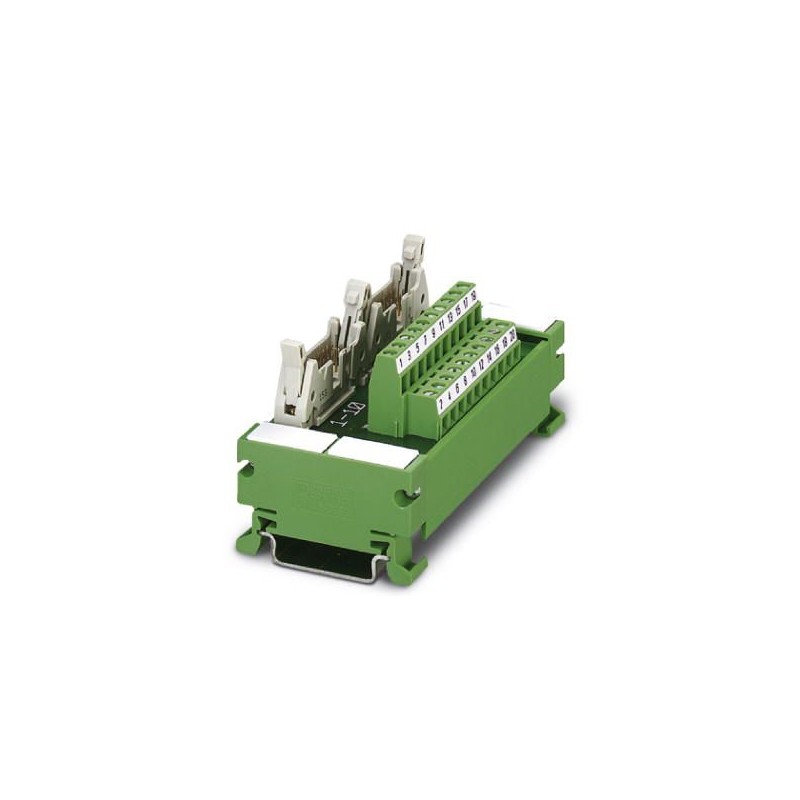

UM 45- 2FLK14/S7 2965143 PHOENIX CONTACT Passive module
UM 45-2FLK14/S7
2965143
PHOENIX_CONTACT
Passive module
VARIOFACE interconnect module for Siemens SIMATIC® S7-300, for up to 16 channels with SIMATIC-specific® marking (1 - 20), screw connection, module width: 98 mm
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2965143 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 201 (IF-2007) |
| GTIN | 4017918130930 |
| Weight per Piece (excluding packing) | 104.000 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Note | When coupling 40-pos. modules, the supplied marking strips can be placed over the factory terminal markings (1 ... 20). The “21, 23, 25, 27, 29, 31, 33, 35, 37, 39” marking strip can be placed over numbers “1, 3, 5, 7, 9, 11, 13, 15, 17, 19”. The “22, 24, 26, 28, 30, 32, 34, 36, 38, 40” marking strip can be placed over numbers “2, 4, 6, 8, 10, 12, 14, 16, 18, 20”. The “21-30 31-40” marking strip can be placed over PCB marking “1-10 11-20”. |
|---|---|
| Max. perm. operating voltage | < 50 V AC |
| 60 V DC | |
| Max. perm. current (per branch) | 1 A |
| Mounting position | any |
| Degree of protection | IP00 |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 6 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Standards and Regulations
| Standards/regulations | IEC 60664 |
|---|---|
| DIN EN 50178 | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Degree of pollution | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | Screw connection |
| Type of electrical connection, control sided (EF008549) | Blade terminal |
| Number of poles (EF001391) | 20 |
| Rated voltage (EF000228) | 30 V |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 50.1 mm |
| Width (EF000008) | 96.8 mm |
| Height (EF000040) | 45 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
