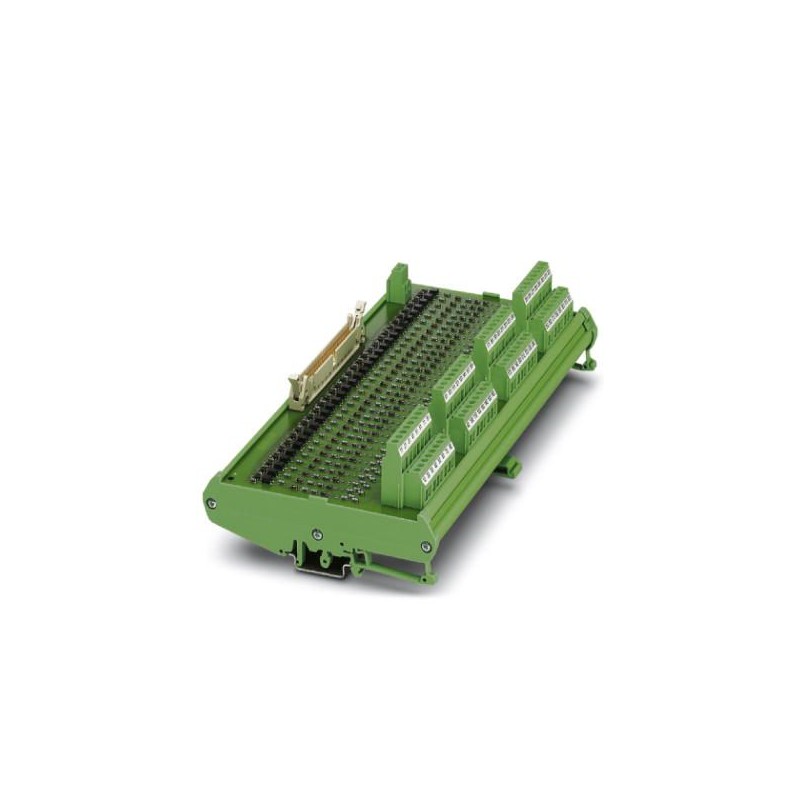

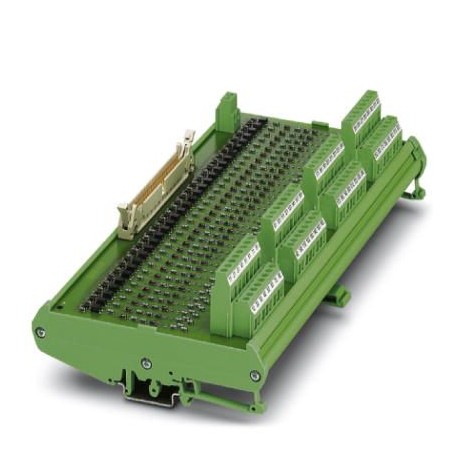

UM-32 OM- 24DC/48DC/I/M/PLC 2394979 PHOENIX CONTACT Active module
UM-32 OM- 24DC/48DC/I/M/PLC
2394979
PHOENIX_CONTACT
Active module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2394979 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 285 (NTK-2006) |
| GTIN | 4017918995812 |
| Weight per Piece (excluding packing) | 402.160 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | 7.6 mA |
| Switching level 0 signal ("L") | ≤ 12 V DC |
| Switching level 1 signal ("H") | ≥ 19.2 V DC |
| Transmission frequency | 100 Hz |
Output data
| Nominal supply voltage | 24 V DC |
|---|---|
| Supply voltage range | 10 V DC ... 48 V DC |
| Continuous load current | 10 mA |
| Status display | Yellow LED |
General
| No. of channels | 32 |
|---|---|
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Housing insulation material | PVC, side panel PA non-reinforced, |
| Color | green |
Connection data for connection 1
| Connection name | Field level |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of connections | 66 |
| Number of positions | 6 |
Connection data for connection 2
| Connection name | Controller level |
|---|---|
| Connection method | IDC/FLK pin strip |
| Number of connections | 1 |
| Number of positions | 50 |
| Pitch | 2.54 mm |
Standards and Regulations
| Standards/regulations | DIN EN 50178 |
|---|---|
| Rated surge voltage | 4 kV (basic insulation) |
| Degree of pollution | 2 |
| Overvoltage category | III |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250313eCl@ss 4.127250313eCl@ss 5.027250313eCl@ss 5.127371000eCl@ss 6.027371000eCl@ss 7.027141152eCl@ss 8.027141152eCl@ss 9.027141152
