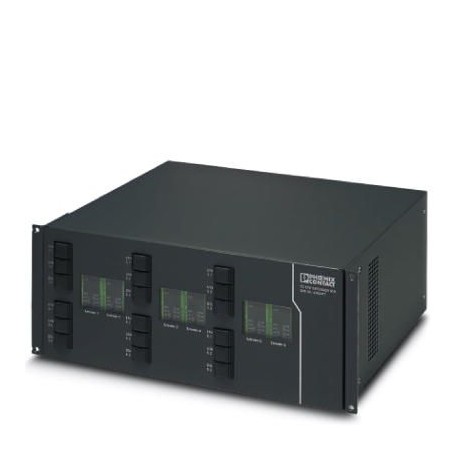

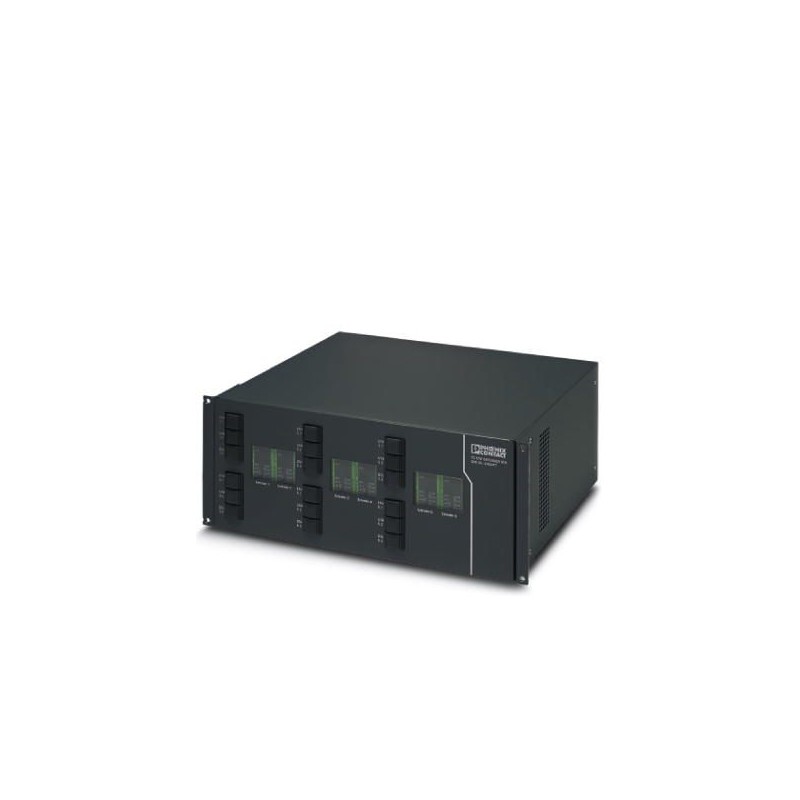

TC ETH EXTENDER S19 2702077 PHOENIX CONTACT Modem
TC ETH EXTENDER S19
2702077
PHOENIX_CONTACT
Modem
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2702077 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 361 (C-6-2017) |
| GTIN | 4046356945516 |
| Weight per Piece (excluding packing) | 10,900.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | 5 °C ... 35 °C (Cabinet temperature) |
|---|---|
| Ambient temperature (storage/transport) | 0 °C ... 50 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2 |
General
| Electrical isolation | VCC // Ethernet // DSL (A) // DSL (B) // FE |
|---|---|
| Test voltage data interface/power supply | 1.5 kVrms(50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Net weight | 10900 g |
| Housing material | Steel, powder-coated |
| MTTF | 34 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 26 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 16 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) | |
| Conformance | CE-compliant |
Power supply
| Nominal supply voltage | 230 V AC (50 Hz ... 60 Hz) |
|---|---|
| Supply voltage range | 100 V AC ... 240 V AC |
| Typical current consumption | < 300 mA (220 V AC) |
Serial interface
| Interface 1 | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
|---|---|
| Interface | Ethernet |
| No. of ports | 4 |
| Connection method | RJ45 socket, shielded |
| Transmission length | < 100 m (shielded twisted pair) |
| Protocols supported | Transparent protocol for IPv4 and IPv6 |
| Serial transmission speed | 10/100 Mbps, auto negotiation |
| Interface 2 | SHDSL interface according to ITU-T G.991.2.bis |
| No. of ports | 12 (2-wire operation) |
| Connection method | Socket M8 |
| Transmission length | < 20 km (Depending on data rate and cable cross section) |
| Serial transmission speed | 4-wire operation: 64 kbps ... 30 Mbps |
| 2-wire operation: 32 kbps ... 15.3 Mbps | |
| Interface 3 | USB 2.0 |
| Connection method | USB Type B |
| Transmission length | < 5 m (only for configuration and diagnostics) |
Function
| Management | Plug and Play, diagnostics via PSI-CONF software or web-based management (only with managed Ethernet extenders) |
|---|
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise immunity | EN 61000-6-2 |
| Vibration (operation) | DIN EN 60068-2-6 |
| Conformance | CE-compliant |
Protective circuit
| IEC test classification | B2 |
|---|---|
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| VDE requirement class | B2 |
| C1 | |
| C2 | |
| C3 | |
| D1 | |
| Maximum continuous voltage UC | 185 V DC |
| 130 V AC | |
| Rated current | ≤ 380 mA (25 °C) |
| Operating effective current ICat UC | ≤ 6 µA |
| Residual current IPE | ≤ 4 µA |
| Nominal discharge current In(8/20) µs (line-line) | ≤ 5 kA |
| Nominal discharge current In(8/20) µs (line-earth) | ≤ 5 kA |
| Pulse discharge current Iimp(10/350) µs | 2.5 kA (Number of pulses category D1) |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Nominal pulse current Ian (10/700) µs (line-line) | 150 A |
| Nominal pulse current Ian (10/700) µs (line-earth) | 150 A |
| Voltage protection level Up(line-line) | 250 V (B2 - 100 A) |
| ≤ 250 V (C1 - 500 A) | |
| ≤ 410 V (C2 - 5 kA) | |
| ≤ 250 V (C3 - 100 A) | |
| Voltage protection level Up(line-earth) | ≤ 580 V (B2 - 100 A) |
| ≤ 580 V (C1 - 500 A) | |
| ≤ 790 V (C2 - 5 kA) | |
| ≤ 300 V (C3 - 100 A) | |
| Response time tA(line-line) | ≤ 100 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | |
| typ. 0.3 dB (≤ 2,8 MHz / 100 Ω) | |
| typ. 3 dB (≤ 25 MHz / 100 Ω) | |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system | 25 MHz |
| Capacity (line-line) | 55 pF |
| Capacity (line-earth) | 7 pF |
| Resistance in series | 3.3 Ω 20 % |
| Surge protection fault message | none |
| Impulse durability (line-line) | C1 - 1 kV/500 A |
| C2 - 10 kV/5 kA | |
| B2 - 4 kV/100 A | |
| Impulse durability (line-earth) | B2 - 4 kV/100 A |
| C1 - 1 kV/500 A | |
| C2 - 10 kV/5 kA | |
| D1 - 1 kA |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
