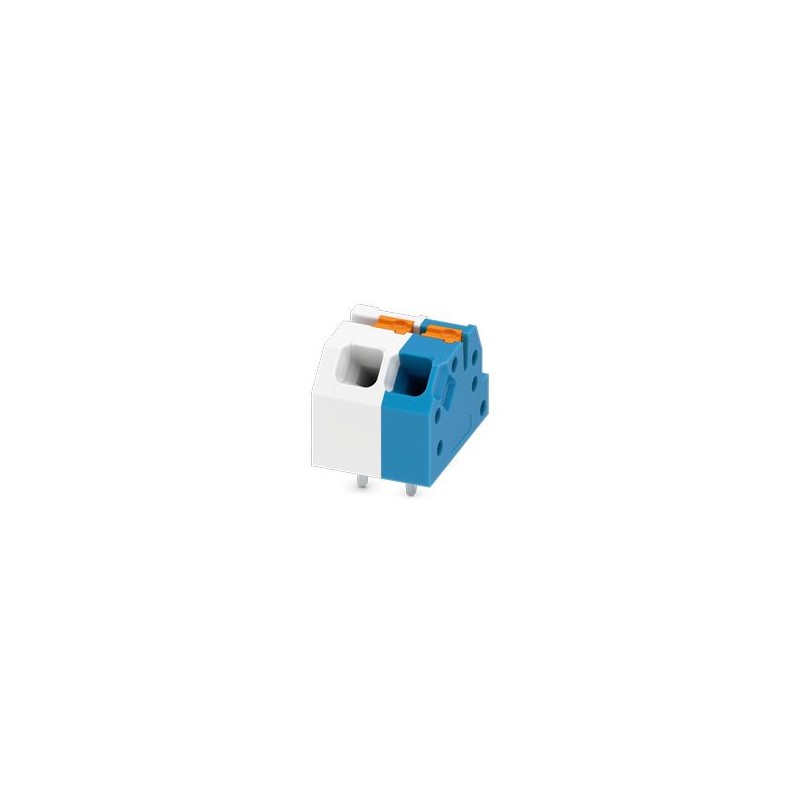

SPTAF 1/ 2-3,5-IL SPE 1548376 PHOENIX CONTACT Printed circuit board terminal, nominal current: 16 A, nominal..
SPTAF 1/ 2-3,5-IL SPE
1548376
PHOENIX_CONTACT
210
Printed circuit board terminal, nominal current: 16 A, nominal voltage (III/2): 160 V, nominal section: 1.5 mm2, number of potentials: 2, number of rows: 1, number of poles per row: 2, family of articles: SPTAF 1/.. -IL, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 45 °, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.6 mm, number of solder pins per potential: 2, packaging type: Tray
PCB terminal, nominal current: 16 A, nominal voltage (III/2): 160 V, nominal cross-section: 1.5 mm², number of potentials: 2, number of rows: 1, number of poles per row: 2, article family: SPTAF 1/.. -IL, pitch: 3.5mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45°, color: multicolor, Pin Arrangement: Linear Pin Arrangement, Pin Length [P]: 2.6mm, Number of Solder Pins by Potential: 2, Packing Type: Tray
PCB terminal block, nominal current: 16 A, reference voltage (III/2): 160 V, nominal cross-section: 1.5 mm2, number of potentials: 2, number of rows: 1, number of poles per row: 2, range of articles: SPTAF 1/.. -IL, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/PCB plugging direction: 45 °, colour: multicolour, Pin layout: Linear pinout, Spindle length [P]: 2.6 mm, number of pins per potential: 2, Packaging type: Tray
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Type | Multi-pole terminal block for I.C. |
| Product Line | COMBICON Terminals S |
| Product Type | Printed circuit board terminal |
| Product range | SPTAF 1/.. -IL |
| Number of poles | 2 |
| Steps | 3.5 mm |
| Number of connections | 2 |
| Number of rows | 1 |
| Number of potentials | 2 |
| Pinout plot | Linear pinout |
| Number of pins per potential | 2 |
| Rated Current IN | 16 A |
| Rated voltage UN | 160 V |
| Degree of pollution | 3 |
| Reference voltage (III/3) | 160 V |
| Rated Shock Resistance Voltage (III/3) | 2.5 kV |
| Rated Voltage (III/2) | 160 V |
| Rated Shock Withstand Voltage (III/2) | 2.5 kV |
| Reference voltage (II/2) | 320 V |
| Rated Shock Withstand Voltage (II/2) | 2.5 kV |
| Connection technology | |
| Nominal cross-section | 1.5 mm² |
| Conductor connection | |
| Connection type | Push-in spring connection |
| Rigid conductor cross-section | 0.2 mm² ... 1.5 mm² (When connecting and possibly aligning a 1.5 mm² rigid conductor, the transverse mechanical forces, which may be exerted on the terminal block, must be compensated for by a lateral support.) |
| 0.34 mm² ... 1.5 mm² (Push-in connection) | |
| Soft conductor section | 0.2 mm² ... 1.5 mm² |
| Conductive section. AWG | 24 ... 16 |
| Soft conductor section with end cap, without plastic bushing | 0.25 mm² ... 0.75 mm² (Conductor connection for open connection point) |
| 0.5 mm² ... 0.75 mm² (Push-in connection) | |
| Soft conductor section with plastic end cap and socket | 0.25 mm² ... 0.75 mm² (Conductor connection for open connection point) |
| 0.5 mm² ... 0.75 mm² (Push-in connection) | |
| Stripping length | 8 mm |
| Mounting Type | Wave Welding |
| Pinout plot | Linear pinout |
| Connection type | Push-in spring connection |
| Material indication - contact | |
| Note | WEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface quality | Tinned by hot dipping |
| Metal surface connection point (top layer) | Tin (2 - 4 μm Sn) |
| Metal surface, welding area (top layer) | Tin (2 - 4 μm Sn) |
| Material indication - housing | |
| Colors (Cases) | multicolor () |
| Insulating material | PA |
| Insulation Group | I |
| CRI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| GWFI glow wire flammability class according to EN 60695-2-12 | 850 |
| GWIT glow wire ignition temperature according to EN 60695-2-13 | 775 |
| Ball pressure test temperature according to EN 60695-10-2 | 125 °C |
| Material Indications - Actuation Element | |
| Colour (Actuation Element) | Orange (2003) |
| Insulating material | PBT |
| Insulation Group | IIIa |
| CRI according to IEC 60112 | 275 |
| Flammability class according to UL 94 | V0 |
| Application Note | Maximum outer diameter, allowed from the insulation of the strands≤ 3 mm |
| Dimensioned drawing |  |
| Steps | 3.5 mm |
| Width [w] | 8.5 mm |
| Height [h] | 10.6 mm |
| Length [l] | 11 mm |
| Mounting height | 8 mm |
| Welding pin length [P] | 2.6 mm |
| Dimensions of the pins | 0.75 x 0.3 mm |
| PCB design | |
| Pimple spacing | 5 mm |
| Drilling Diameter | 1.1 mm |
| Investigation of damage and loosening of conductors | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Successful test |
| Repeated logins and disconnections | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Successful test |
| Traction Control | |
| Control Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor cross-section/conductor type/tractive force, nominal/actual | 0.2 mm² / rigid / > 10 N |
| 0.25 mm² / soft / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / soft / > 40 N | |
| Warm-up test | |
| Control Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Requirement for heating control | The total of the ambient temperature and the heating of the PCB terminal block must not exceed the upper temperature limit. |
| Resistance to short-term currents | |
| Control Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Insulation resistance | |
| Control Specification | DIN EN 60512-3-1:2003-01 |
| Insulation resistance of neighboring poles | > 5 MΩ |
| Air Distances and Trailing Lines | |
| Control Specification | DIN EN 60947-1 (VDE 0660-100):2011-10 |
| Insulation Group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | SIC 600 |
| Rated Insulation Voltage (III/3) | 160 V |
| Rated Shock Resistance Voltage (III/3) | 2.5 kV |
| minimum value of distance in air - non-homogeneous field (III/3) | 1.5 mm |
| minimum creepage value (III/3) | 2 mm |
| Rated Insulation Voltage (III/2) | 160 V |
| Rated Shock Voltage (III/2) | 2.5 kV |
| minimum value of distance in air - non-homogeneous field (III/2) | 1.5 mm |
| minimum creepage value (III/2) | 0.8 mm |
| Rated Insulation Voltage (II/2) | 320 V |
| Rated Shock Withstand Voltage (II/2) | 2.5 kV |
| minimum value of distance in air - non-homogeneous field (II/2) | 1.5 mm |
| minimum creepage value (II/2) | 1.6 mm |
| Vibration Resistance Test | |
| Control Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Scan Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Scan Speed | 5g (60.1 Hz ... 150 Hz) |
| Inspection time per axis | 2.5 hrs |
| Glow Wire Test | |
| Control Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2014-04 |
| Temperature | 850 °C |
| Time of action | 5 s |
| Aging | |
| Control Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Environmental conditions | |
| Ambient Temperature (Operating) | -40 °C ... 100 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Type of packaging | Tray |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 10.6 mm |
| Number of electrical connections (EF008252) | 2 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 16 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 2.6 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Other |
