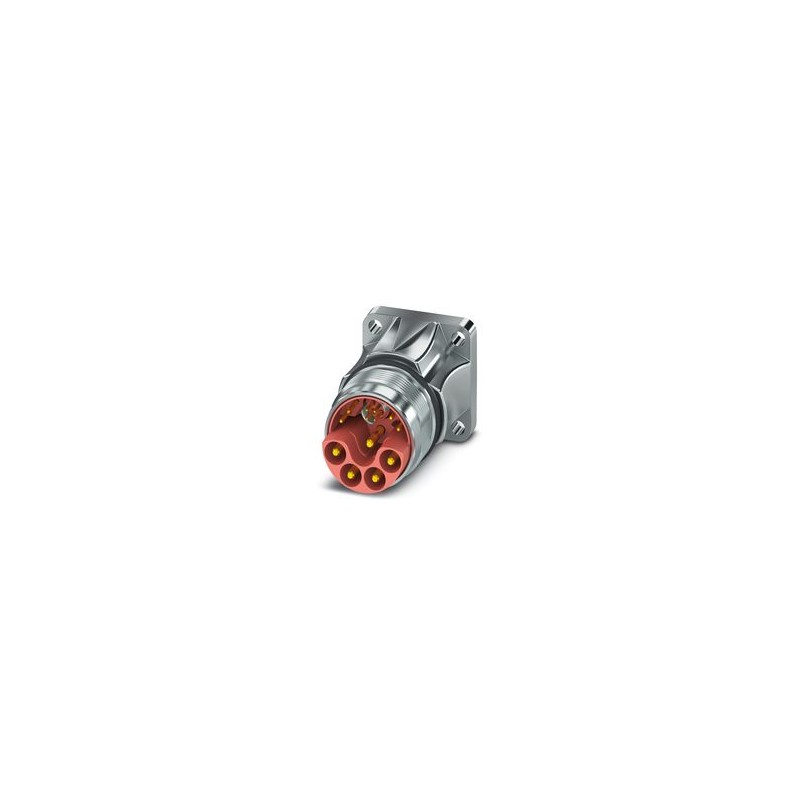

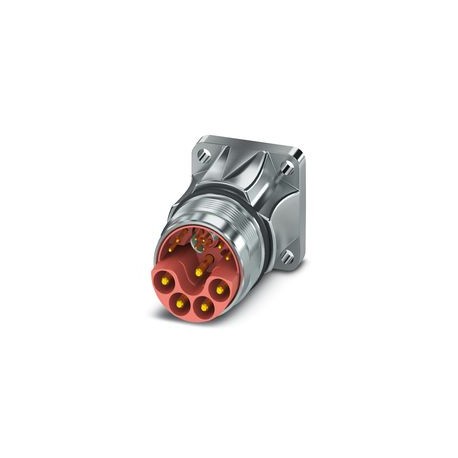

SH-8EP008A0000 1627080 PHOENIX CONTACT Connect. plug in. to apar. wall poster.
SH-8EP008A0000
1627080
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Connect. plug in. to apar. wall poster.
Device connector, rear mounting
Connectors > Contact insert for circular connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | Crimp contacts, 4 x Ø1 mm, 5 x Ø2 mm, order separately |
| Safety note | |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| • The products are suitable for applications in plant, controller, and electrical device engineering. | |
| • When operating the connectors in outdoor applications, they must be separately protected against environmental influences. | |
| • Assembled products may not be manipulated or improperly opened. | |
| • Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). | |
| • When using the product in direct connection with third-party manufacturers, the user is responsible. | |
| • For operating voltages > 50 V AC, conductive connector housings must be grounded | |
| • Ensure that the protective or functional ground has been properly connected. | |
| • VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector | |
| • Only use tools recommended by Phoenix Contact | |
| • The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
| • Operate the connector only when it is fully plugged in and interlocked. | |
| • Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. | |
| • Observe the minimum bending radius of the cable. Lay the cable without twisting it. | |
| • The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). | |
| Connection method | Crimp connection |
| Product type | Circular connector (cable-side) |
| Number of positions | 9 |
| Connection profile | 4+4+PE / 3+N+PE |
| Application | Hybrid |
| Series | SH |
| Coding | N |
| Conductor connection | |
| Connection method | Crimp connection |
| Contact | |
| Contact diameter | 2 mm |
| Min. cross section | 0.25 mm² |
| Max. cross section | 4 mm² |
| Max. current | 30 A |
| Nominal voltage UN | 630 V AC (for max. connection cross section) |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Rated voltage (II/3) power contact | 850 V DC |
| Rated voltage (III/3) power contact | 630 V AC |
| Contact | |
| Contact diameter | 1 mm |
| Min. cross section | 0.06 mm² |
| Max. cross section | 1 mm² |
| Max. current | 8 A |
| Nominal voltage UN | 50 V (Contact 1 ... 4) |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 1.5 kV |
| Rated voltage (III/3) signal contact | 50 V |
| Mechanical data | |
| Insertion/withdrawal cycles | 100 |
| Type | straight |
| Direction of rotation | Standard |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Altitude | 2000 m |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 9 |
Datasheet - PDF
