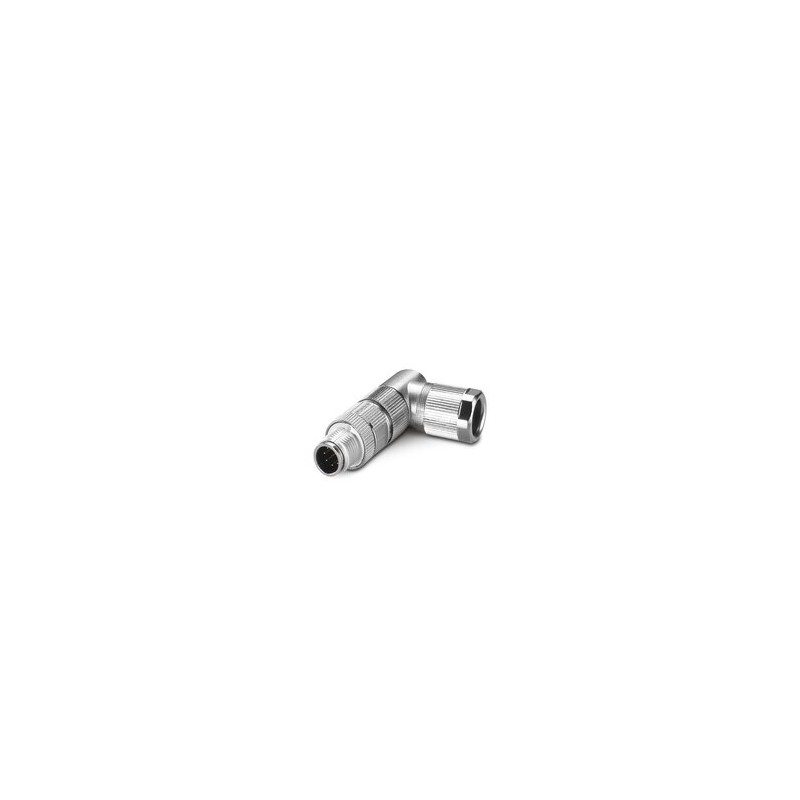

SACC-M12MR-8CT-CM SH 1319941 PHOENIX CONTACT Connector, Universal, 8-pole, shielded, M12 Angled Male Connect..
SACC-M12MR-8CT-CM SH
1319941
PHOENIX_CONTACT
Connector, Universal, 8-pole, shielded, M12 Angled Male Connector, Coding: A, Crimp Connection, Knurling Material: Zinc Die-Cast, Nickel-Plated, Cable Outer Diameter 4.5 mm ... 7.5 mm, no crimped contacts
Connector, Universal, 8-pole, shielded, M12 angled male connector, A-coded, Crimped connection, knurling material: Zinc die-cast iron, nickel-plated, cable outer diameter 4.5 mm ... 7.5 mm, no crimped contacts
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | IMPORTANT:When laying cables, respect the permissible bending radii, as excessive bending forces can impair the protection index. Relieve mechanical loads upstream of the connector (e.g. by means of cable ties). |
| Connection type | Crimp connection |
| Product Type | Circular connector (cable side) |
| Sensor Type | Universal |
| Number of poles | 8 |
| Number of Cable Outlets | 1 |
| Shielded | Yes |
| Codification | to |
| Cable outlet | Layered |
| Insulation Properties | |
| Surge Category | Ii |
| Degree of pollution | 3 |
| Dimension Scheme |  |
| Longitude | 52 mm |
| Width Between Faces - Union Nut | 15 mm |
| Width Between Faces - Locknut | 14 mm |
| Exterior Dimensions | |
| Outer diameter | 4.5 mm ... 7.5 mm |
| Housing | |
| Case Diameter | 16 mm |
| Flammability class according to UL 94 | V0 |
| Gasket material | FKM |
| Grip body material | Zinc die-cast iron, nickel-plated |
| Screw connection material | Zinc die-cast iron, nickel-plated |
| Connecting Conductors | |
| Connection type | Crimp connection |
| Connection Section | 0.14 mm² ... 0.34 mm² (flexible) |
| AWG Connection Section | 26 ... 22 (flexible) |
| Length to be de-isolated from the individual conductor | 4 mm +0.5 mm |
| Tightening torque | 0.4 Nm (M12 knurling) |
| 1.5 Nm (Plug insert with overhead housing screwed all the way in) | |
| 4 Nm (Clamping nut with coupling bushing) | |
| Dimensioning Transient Voltage | 0.8 kV |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| 30 V DC | |
| Nominal Current IN | 2 A |
| Mechanical data | |
| Plug Cycles | ≥ 100 |
| Connection 1 | |
| Header construction | Male connector |
| Header cable outlet | Layered |
| Header thread type | M12 |
| Codification | to |
| Signal Type/Category | Universal |
| Stripping Length of Individual Conductors | 4 mm +0.5 mm |
| Environmental conditions | |
| Protection Index | IP65 |
| Ambient Temperature (Service) | -40 °C ... 85°C (male/female) |
| Denomination of standard | M12 plug-in connector |
| Rules/Provisions | IEC 61076-2-101 |
| Denomination of standard | Shocks, vibrations |
| Rules/Provisions | EN 50155:2001 |
