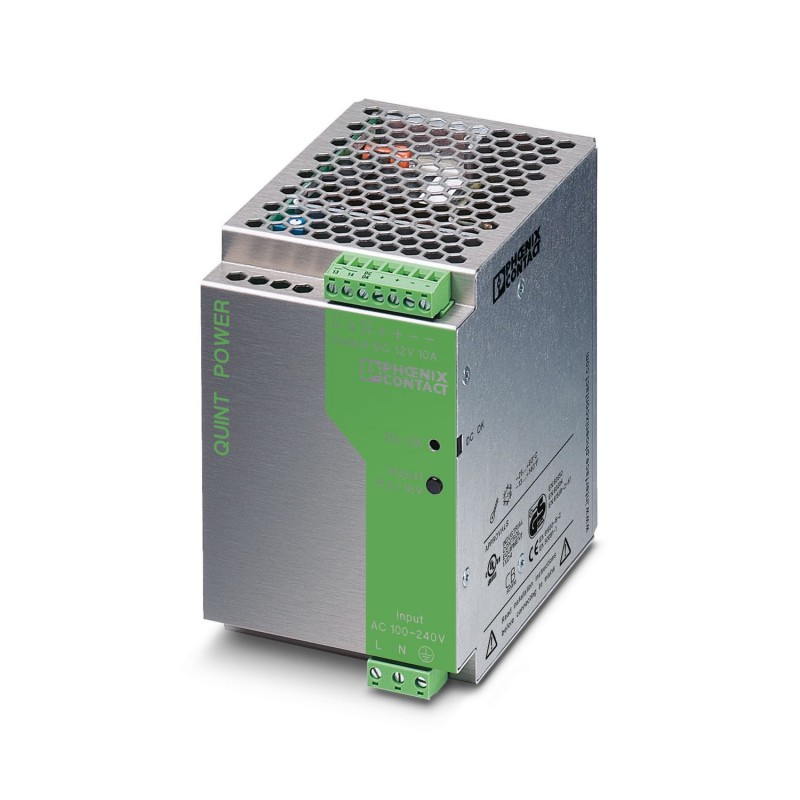

QUINT-PS-100-240AC/12DC/10 2938811 PHOENIX CONTACT Power supply unit
QUINT-PS-100-240AC/12DC/10
2938811
PHOENIX_CONTACT
Power supply unit
Power supply. Carr. system, primary switched, single-phase, output: 12 V DC / 10 A
DIN rail power supply unit 12 V DC/10 A, primary-switched, 1-phase.Please use the following item in new systems: 2904608
Power Supplies (PS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Technical data
Input data
| Nominal input voltage range | 100 V AC ... 240 V AC |
| Input voltage range | 85 V AC ... 264 V AC |
| 90 V DC ... 350 V DC | |
| Input voltage range AC | 85 V AC ... 264 V AC |
| Input voltage range DC | 90 V DC ... 350 V DC |
| Voltage type of supply voltage | AC/DC |
| Inrush current | < 15 A (typical) |
| Inrush current integral (I2t) | 1 A2s |
| AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz |
| Mains buffering time | > 50 ms (120 V AC) |
| > 50 ms (230 V AC) | |
| Current consumption | approx. 1.5 A (120 V AC) |
| 0.6 A (230 V AC) | |
| Nominal power consumption | 139 W |
| Typical response time | < 1 s |
| Input fuse | 6.3 A (slow-blow, internal) |
| Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
| Recommended breaker for input protection | 10 A ... 16 A (Characteristics B, C, D, K) |
Output data
| Efficiency | > 84 % |
| Nominal output voltage | 12 V DC ±1 % |
| Setting range of the output voltage (USet) | 11.5 V DC ... 18 V DC |
| Nominal output current (IN) | 10 A (up to 60 °C) |
| POWER BOOST (IBoost) | 16 A |
| Derating | 60 °C ... 70 °C (2.5 %/K) |
| Feedback voltage resistance | 35 V DC |
| Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
| Max. capacitive load | unlimited |
| Residual ripple | < 30 mVPP |
| Output power | 120 W |
| Peak switching voltages nominal load | < 50 mVPP(20 MHz) |
| Maximum no-load power dissipation | < 4 W |
| Power loss nominal load max. | < 22 W |
| Connection in parallel | yes, for redundancy and increased capacity |
| Connection in series | yes |
| Signal: DC OK active | |
| Output description | UOUT> 0.9 x UN: High signal |
| Maximum switching voltage | ≤ 12 V |
| Output voltage | + 12 V DC |
| Maximum inrush current | ≤ 40 mA |
| Continuous load current | ≤ 40 mA |
| Signal: DC OK floating | |
| Output description | Relay contact, UOUT> 0.9 x UN: Contact closed |
| Maximum switching voltage | ≤ 30 V AC/DC |
| Maximum inrush current | ≤ 1 A |
| Continuous load current | ≤ 1 A |
Connection data
| Input | |
| Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Output | |
| Connection method | Screw connection |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Tightening torque, min | 0.5 Nm |
| Signal | |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Screw thread | M3 |
| Tightening torque, min | 0.5 Nm |
| Tightening torque max | 0.6 Nm |
Signaling
| Types of signaling | LED |
| Active switching output | |
| Relay contact | |
| Operating voltage display | Green LED |
| Signal output: DC OK active | |
| Status display | "DC OK" LED green |
| Note on status display | UOUT< 0.9 x UN: LED flashing |
| Signal output: DC OK floating | |
| Status display | "DC OK" LED green |
Electrical properties
| Number of phases | 1.00 |
| Insulation voltage input/output | 2 kV (routine test) |
| 4 kV (type test) |
Product properties
| Product type | Power supply |
| Product family | QUINT POWER |
| MTBF (IEC 61709, SN 29500) | > 500000 h |
| Data management status | |
| Article revision | 22 |
| Insulation characteristics | |
| Protection class | I (with PE connection) |
| Degree of pollution | 2 |
Dimensions
| Width | 85 mm |
| Height | 130 mm |
| Depth | 130 mm |
| Installation dimensions | |
| Installation distance right/left | 0 mm / 0 mm |
| Installation distance top/bottom | 50 mm / 50 mm |
| Alternative assembly | |
| Width | 122 mm |
| Height | 88 mm |
| Depth | 88 mm |
Mounting
| Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
Material specifications
| Housing material | Metal |
| Type of housing | AluNox (AlMg1) |
Environmental and real-life conditions
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) |
Standards and regulations
| Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
| Standard - Electrical safety | EN 62368-1 |
| Standard - Equipment safety | GS (tested safety) |
| Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment | EN 62368-1 |
| Standard – Safety extra-low voltage | EN 62368-1 (SELV) |
| EN 60204 (PELV) | |
| Standard - Safe isolation | DIN VDE 0100-410 |
Approvals
| Shipbuilding approval | DNV GL (EMC A) |
| UL approvals | UL/C-UL Recognized UL 60950-1 |
| UL/C-UL listed UL 508 | |
| UL/C-UL Listed UL 1604 Class I, Division 2, Groups A, B, C, D |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
| EMC requirements for noise emission | EN 61000-6-3 |
| EN 61000-6-4 | |
| EMC requirements for noise immunity | EN 61000-6-1 |
| EN 61000-6-2 |
