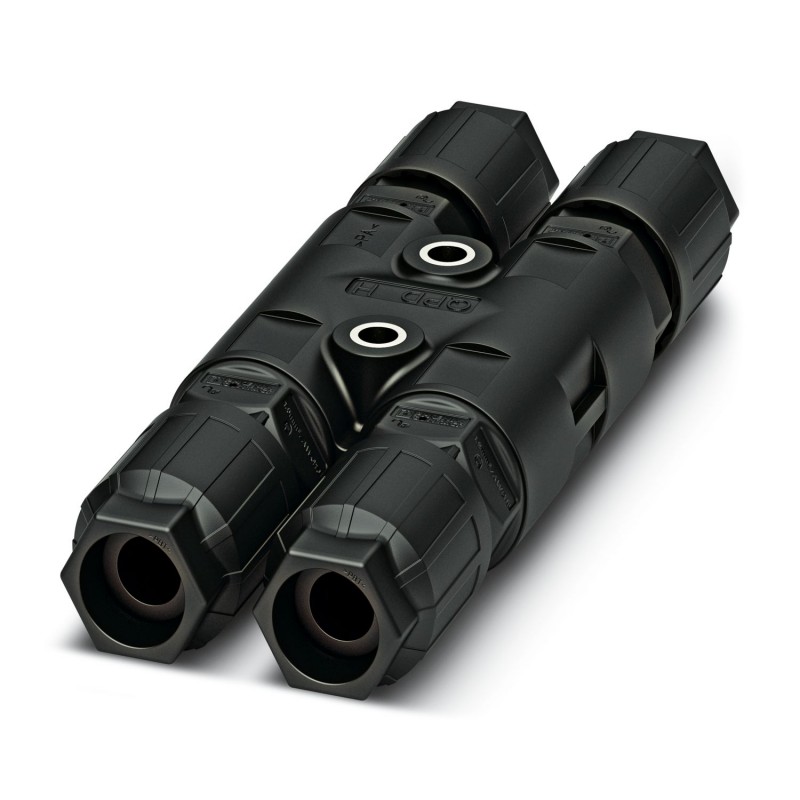

QPD H3PE2,5 4X9-14 BK 1423972 PHOENIX CONTACT H distributor
QPD H3PE2,5 4X9-14 BK
1423972
PHOENIX_CONTACT
H distributor
H Distributor, QUICKON Connection, number of poles: 3+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, with four QUICKON nuts, cable outer diameter: 9 mm ... 14 mm
H distributor, product family: QPD, connection method: IDC connection, number of positions: 3+PE, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, black, with four QUICKON nuts, coding: Coding profile, external cable diameter: 9 mm ... 14 mm
Pluggable building installation systems > Compact distributor for plug-in building installation
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | Power distributor |
| Product family | QPD |
| Type | H-distributor |
| Number of positions | 4 |
| Connection profile | 3+PE |
| Position marking | 1, 2, 3, PE |
| Number of connections | 4 |
| Number of connections per position | 1 |
| No. of cable outlets | 4 |
| Coding | Coding profile |
| Data management status | |
| Article revision | 05 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection technology | |
| Connection method | IDC connection |
| Frequency of connections between conductors of the same cross section | max. 10 |
| Conductor connection | |
| Conductor cross section flexibel | 1 mm² ... 2.5 mm² |
| Conductor cross section solid | 1 mm² ... 2.5 mm² |
| Connection cross section AWG | 16 ... 14 |
| Tightening torque Union nut | 10 Nm |
| Wrench size Union nut | 22 mm |
| Dimensional drawing |  |
| Width | 65 mm |
| Height | 31 mm |
| Length | 152 mm |
| Diameter | 5.5 mm |
| Rated surge voltage (II/2) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (III/3) | 6 kV |
| Rated current | 20 A |
| Contact resistance | < 3 mΩ |
| rated voltage (II/2) | 1000 V |
| rated voltage (III/2) | 690 V |
| Rated voltage (III/3) | 690 V |
| Nominal voltage UN | 690 V AC |
| 690 V DC | |
| Nominal current IN | 20 A |
| Mechanical data | |
| Insertion/withdrawal cycles | max. 50 |
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | silver-plated |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC/PE/TPE/rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| External cable diameter | 9 mm ... 14 mm |
| Wire diameter including insulation | 2 mm ... 3.6 mm |
| Position marking | 1, 2, 3, PE |
| Material wire insulation | PVC/PE/TPE/rubber |
| Halogen-free | yes |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 24 h) | |
| IP69K (Distance from the nozzle 150 mm) | |
| Touch-proof when not plugged in (IP2X) | |
| Impact strength | IK07 (-25 °C) |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Feature Name | Feature Value |
|---|---|
| Rated voltage (EF000228) | 690 V |
| Rated current (EF000227) | 20 A |
| Number of poles (EF001391) | 4 |
| Degree of protection (IP) (EF005474) | IP66 |
| Number of inputs (EF000318) | 1 |
| Number of outputs (EF000319) | 3 |
| Phase pickup (EF008328) | Selectable |
| Pole codification (EF006771) | 1, 2, 3, PE |
| Mechanical coding (EF002910) | No |
| Colour coding/contact insert (EF006772) | Black |
| Colour of the separate adapter piece (EF008312) | Black |
| Halogen free (EF000025) | Yes |
| Housing material (EF001596) | Polyamide (PA) |
| Surface treatment contacts (EF002558) | Silver-plated |
| Length (EF001438) | 152 mm |
| Height (EF000040) | 31 mm |
| Width (EF000008) | 65 mm |
| Type of distributor (EF008304) | Other |
| Type of integrated switching (EF008302) | None |
