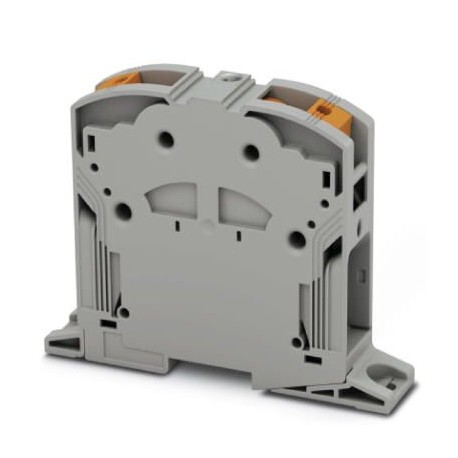

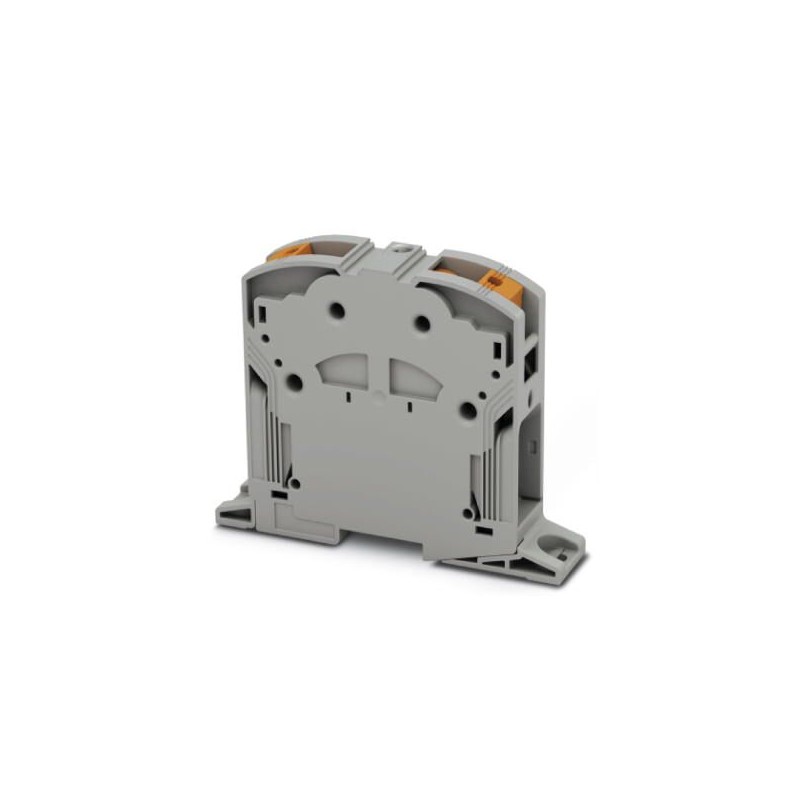

PTPOWER 185 P-F 1054739 PHOENIX CONTACT High-current terminal block, with test socket, nom. voltage: 1500 V ..
PTPOWER 185 P-F
1054739
PHOENIX_CONTACT
3
High-current terminal block, with test socket, nom. voltage: 1500 V DC / 1000 V AC, nominal current: 309 A, connection method: Power-Turn connection, number of connections: 2, number of positions: 1, cross section: 95 mm² - 185 mm², AWG: 3/0 - 350 kcmil, width: 31 mm, height: 108.3 mm, color: gray, mounting type: direct screw connection
Power terminal block, with test socket, nominal voltage: 1000 V, nominal current: 309 A, number of connections: 2, number of poles: 1, connection type: PowerTurn connection, 1st floor, cross-section: 95 mm² - 185 mm², mounting class: direct screwed, colour: grey
Terminal blocks > Feed-through terminal block
Modular TBs
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1054739 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 3 pc |
| Catalog page | Page 141 (C-1-2019) |
| GTIN | 4055626690889 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
General
| Number of positions | 1 |
|---|---|
| Number of levels | 1 |
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 150 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 11.21 W |
| Maximum load current | 309 A (with 150 mm² conductor cross section) |
| Nominal current IN | 309 A |
| Nominal voltage UN | 1500 V DC |
| 1000 V AC | |
| Open side panel | No |
Dimensions
| Width | 31 mm |
|---|---|
| Length | 150 mm |
| Height | 108.3 mm |
| Hole diameter | 6.5 mm |
| Drill hole spacing | 137.2 mm |
| Pitch | 31 mm |
Connection data
| Connection | 1 level |
|---|---|
| Connection method | Power-Turn connection |
| Stripping length | 40 mm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section solid min. | 95 mm² |
| Conductor cross section solid max. | 185 mm² |
| Conductor cross section AWG min. | 3/0 |
| Conductor cross section AWG max. | 350 kcmil |
| Conductor cross section flexible min. | 95 mm² |
| Conductor cross section flexible max. | 185 mm² |
| Min. AWG conductor cross section, flexible | 3/0 |
| Max. AWG conductor cross section, flexible | 350 kcmil |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 95 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 150 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 95 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 150 mm² |
| Cross section with insertion bridge solid min. | 95 mm² |
| Cross section with insertion bridge, solid max. | 150 mm² |
| Cross section with insertion bridge stranded min. | 95 mm² |
| Cross section with insertion bridge, stranded max. | 150 mm² |
| Cross section with insertion bridge stranded, with ferrule without plastic sleeve min. | 95 mm² |
| Cross section with insertion bridge stranded, with ferrule without plastic sleeve max. | 120 mm² |
| Cross section with insertion bridge stranded, with ferrule without plastic sleeve min. | 95 mm² |
| Cross section with insertion bridge stranded, with ferrule with plastic sleeve max. | 120 mm² |
| Internal cylindrical gage | B14 |
Standards and Regulations
| Connection in acc. with standard | IEC 60947-7-1 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 5.1 | 27141120 |
|---|---|
| eCl@ss 6.0 | 27141100 |
| eCl@ss 7.0 | 27141120 |
| eCl@ss 8.0 | 27141120 |
| eCl@ss 9.0 | 27141120 |
UNSPSC
| UNSPSC 6.01 | 30211811 |
|---|---|
| UNSPSC 7.0901 | 39121410 |
| UNSPSC 11 | 39121410 |
| UNSPSC 12.01 | 39121410 |
| UNSPSC 13.2 | 39121410 |
| UNSPSC 18.0 | 39121410 |
| UNSPSC 19.0 | 39121410 |
| UNSPSC 20.0 | 39121410 |
| UNSPSC 21.0 | 39121410 |
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 95 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 95 mm² |
| Connectable conductor cross section solid-core (EF007337) | 95 mm² |
| Rated current In (EF008250) | 309 A |
| Rated voltage (EF000228) | 1000 V |
| Type of electrical connection 1 (EF002526) | Other |
| Type of electrical connection 2 (EF002527) | Other |
| Number of clamp positions per level (EF002660) | 2 |
| Suitable for conductor material (EF012572) | Aluminium/copper |
| Material insulation body (EF007543) | Other |
| Operating temperature (EF002393) | -60 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 31 mm |
| Height (EF000040) | 150 mm |
| Depth (EF000049) | 108.3 mm |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Grey |
| Internally connected stages (EF002661) | Yes |
