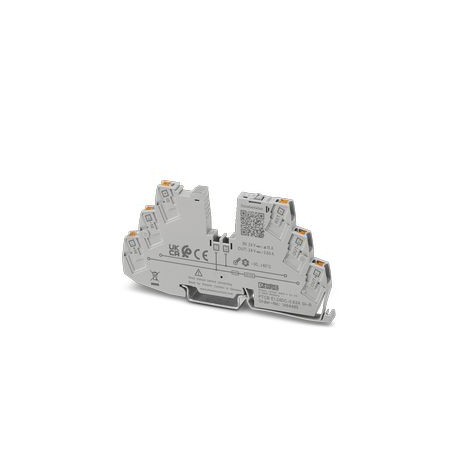

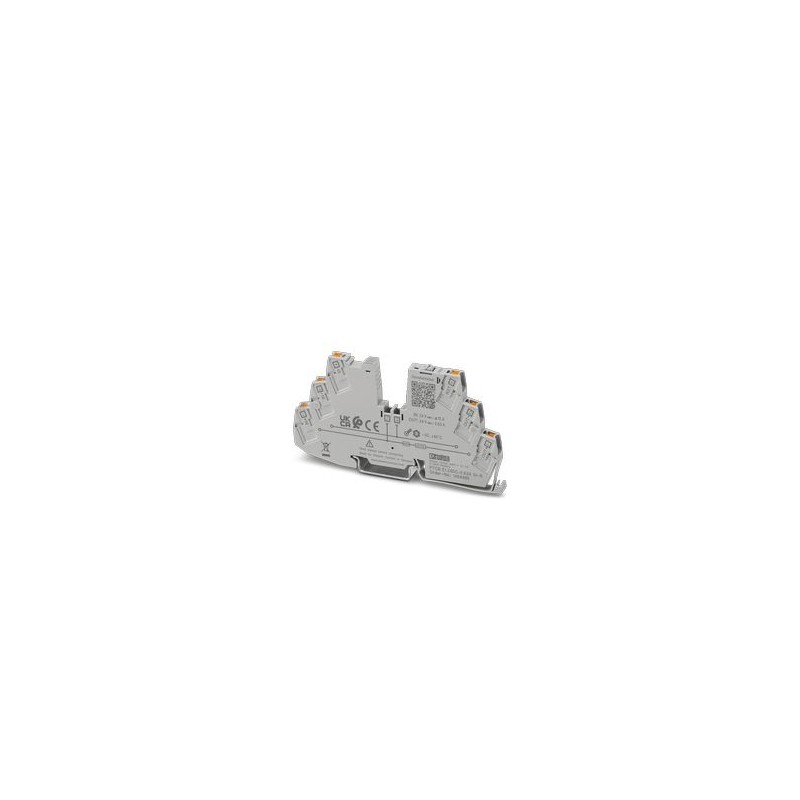

PTCB E1 24DC/0.63A SI-R 1464485 PHOENIX CONTACT Protection of single-channel electronic equipment for consum..
PTCB E1 24DC/0.63A SI-R
1464485
PHOENIX_CONTACT
Protection of single-channel electronic equipment for consumers of 12-24 V DC. Fixed rated current value: 0.63 A. With remote signal, remote reset and active current limiting. Can be combined with CLIPLINE rail terminals. For installation on DIN rails.
Electronic Appliance Protection Switches
Single-channel electronic device protection for 12-24 V DC consumers. Fixed current rating: 0.63 A With remote signaling, remote reset and active current limiting. Can be combined with CLIPLINE terminal blocks. For installation on DIN rails.
Circuit breakers and fuses > Device circuit breaker
Over Current Protection
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General notes | |
| note | Connection for the controlled signal line according to EN 61000-4-4 with 1 kV; possibly provide for safety measures to be taken by the customer |
| Any repeated strong short circuits can reduce the melt integral of the integrated prefuse. | |
| type | Monolithic Rail Module |
| Product Type | Electronic protection switch |
| Product Family | PTCB |
| No. of poles | 1 |
| Number of channels | 1 |
| Insulation characteristics | |
| Security class | Iii |
| Degree of pollution | 2 |
| Number of channels | 1 |
| General notes | |
| Operating voltage | 10 V DC ... 30 V DC |
| Nominal voltage | 24 V DC |
| Dimension. IN | 15 A DC (Total Input Current) |
| 0.63 A DC (Rated Output Current) | |
| Rated Current IN | 0.63 A DC |
| Rated current (preset) | 0.63 A |
| Sizing Impulse Voltage | 0.5 kV |
| Release type | E (electronic) |
| Return Feed Resistor | max. 35 V DC |
| Prefuse required | Needed only if IMaxof the power supply > short-circuit breaking capacity. Integrated Fail-Safe element. |
| Short circuit breaking capacity | 300 A |
| Voltage resistance | max. 35 V DC (Load circuit) |
| Active current limitation | typ. 1.08 x IN |
| Fuse | electronic |
| Efficiency | > 98.5 % |
| Quiescent current I0 | tip. 3.8 mA |
| Power dissipation | tip. 0.1 W (No-load) |
| < 0.7 W (Rated Operation) | |
| Module initialization time | 40 ms |
| Wait time after a channel is deactivated | 5 s (overload / short circuit) |
| Measurement Tolerance I | ± 7 % |
| Temperature derating | 15 A (Total current at 60 °C) |
| 20 A (Total current at 50 °C) | |
| MTBF (IEC 61709, SN 29500) | 27034333 h (at 25 °C with 21 % load) |
| 11609008 h (at 40 °C at 34,25 % load) | |
| 1631800 h (at 60 °C at 100 % load) | |
| Dissipated voltage | 0.35 V (AT 0.63 A) |
| Fail-Safe Element | 4 A DC |
| Load circuit | |
| Cut-off time | ≤ 600 ms |
| ≥ 12 ms (Depending on available load) | |
| Disable tip. 1.08 x IN | |
| Undervoltage deactivation | ≤ 9.2 V DC (active) |
| ≥ 10.2 V DC (Idle) | |
| Overvoltage deactivation | ≥ 30.5 V DC (active) |
| ≤ 29.5 V DC (Idle) | |
| Max. capacitive load | 4.7 mF (Depending on current setting and available short-circuit current) |
| Reset | |
| Input voltage range | 7 V DC ... 30 V DC (Reset with falling edge) |
| Current consumption | tip. 0.4 mA (at 24 V DC) |
| Pulse length | ≥ 50 ms (High) |
| ≥ 50 ms (Low) | |
| tension | < 5 V DC (Low State) |
| > 8 V DC (High State) | |
| Stripping length | 8 mm |
| Rigid conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 2.5 mm² |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 2.5 mm² |
| Status Output | |
| Output voltage | 24 V DC (Error) |
| 0 V DC (No Error) | |
| Output current | max. 0.015 A (Short-circuit resistant) |
| Stripping length | 8 mm |
| Rigid conductor cross-section | 0.2 mm² ... 4 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.25 mm² ... 2.5 mm² |
| Flexible conductor cross-section with cable lug without plastic collar | 0.25 mm² ... 2.5 mm² |
| Conductor cross-section AWG | (converted according to IEC) |
| IN+ Main Circuit | |
| Link | Push-in connection |
| Stripping length | 8 mm |
| Flexible conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Rigid conductor cross-section | 0.2 mm² ... 4 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.2 mm² ... 2.5 mm² |
| Flexible conductor cross-section with cable lug without plastic collar | 0.2 mm² ... 2.5 mm² |
| Main circuit IN- | |
| Link | Push-in connection |
| Stripping length | 8 mm |
| Flexible conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Rigid conductor cross-section | 0.2 mm² ... 4 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.2 mm² ... 2.5 mm² |
| Flexible conductor cross-section with cable lug without plastic collar | 0.2 mm² ... 2.5 mm² |
| Main circuit OUT | |
| Link | Push-in connection |
| Stripping length | 8 mm |
| Flexible conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Rigid conductor cross-section | 0.2 mm² ... 4 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with mounted lug and plastic collar | 0.2 mm² ... 2.5 mm² |
| Flexible conductor cross-section with cable lug without plastic collar | 0.2 mm² ... 2.5 mm² |
| LED Channel Off | Off (Channel Off) |
| Yellow LED Channel | flashes (Active Programming Mode) |
| Green LED Channel | lights up (Channel On) |
| Red LED Channel | lights up (Channel off, overvoltage or undervoltage active) |
| Temporary light (Channel off, 5 s cooling phase, trip in case of overload or short circuit) | |
| flashes (Channel off, ready to rearm, trip in case of overload or short circuit) | |
| fast flashing (Channel off, external output voltage, possible installation error) |
| Dimensioned Drawing |  |
| width | 6.2 mm |
| height | 105.8 mm |
| Depth | 55.6 mm (With 7.5 mm DIN rail) |
| Material | PBT |
| PBT | |
| Combustibility class according to UL 94 | V-0 |
| Environmental conditions | |
| Degree of protection | Ip20 |
| Ambient temperature (operating) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Elevated position | ≤ 3000 m up to 52 °C (amsl) |
| ≤ 4000 m up to 46 °C (amsl) | |
| Moisture Proof | 96 h, 95 % RH, 40 °C |
| Shocks (exercise) | 30g (IEC 60068-2-27, Test Ea) |
| Vibration (exercise) | 10 Hz ... 59.6 Hz (Amplitude ± 0.35 mm; acc. to IEC 60068-2-6; Fc Test) |
| 59.6 Hz ... 150 Hz (5g acceleration; according to IEC 60068-2-6, Fc Test) | |
| 5 Hz ... 100 Hz (4g resonance search; 4g resonant frequency; 90 min according to DNV GL class B) | |
| UL Listed | |
| Marking | UL/C-UL Listed UL 508 |
| UL Recognized UL 2367 | |
| NEC Class 2 according to UL 1310 | |
| UL/C-UL Listed ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | |
| DNV GL | |
| Marking | Approval for the naval sector |
| DNV GL data | |
| Temperatures | at |
| Humidity | b |
| Vibration | b |
| EMC | at |
| Enclosure | at |
| Standards/Regulations | EN 61000-6-2 |
| note | EMC - Noise Immunity for Industrial Environments |
| Standards/Regulations | EN 61000-6-3 |
| note | EMC - Noise Emission for Residential, Commercial and Light Industrial Environments |
| Standards/Regulations | EN 60068-2-78 |
| note | Environmental influences - Humidity and heat, constant |
| Standards/Regulations | EN 50178 |
| note | Electronic equipment for use in power installations |
| Standards/Regulations | EN 60068-2-6 |
| note | Environmental influences - Vibrations (sinusoidal) |
| Standards/Regulations | EN 60068-2-27 |
| note | Environmental influences - Shocks |
| Standards/Regulations | EN 60068-2-30 |
| note | Environmental influences - Part 2-30: Test methods - test Db: moist heat, cyclically |
| Mounting type | Support rail: 35 mm |
| Feature Name | Feature Value |
|---|---|
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
| Number of poles (EF001391) | 1 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 105.8 mm |
| Depth (EF000049) | 55.6 mm |
| Mounting method (EF000003) | Other |
| Operating voltage (EF000111) | 30 V |
| Nominal current (EF000001) | 15 A |
| Active current limitation x IN (EF011922) | 0 |
| Fuse type (EF011923) | Electronic |
| Fail safe element (EF011924) | 4 A |
| Switch-off time (EF011925) | 0.6 ms |
| Max. capacitive load (EF011926) | 0.0047 µF |
| With remote signalling contact (EF000422) | No |
| Ambient temperature during operating (EF007515) | -30 °C |
