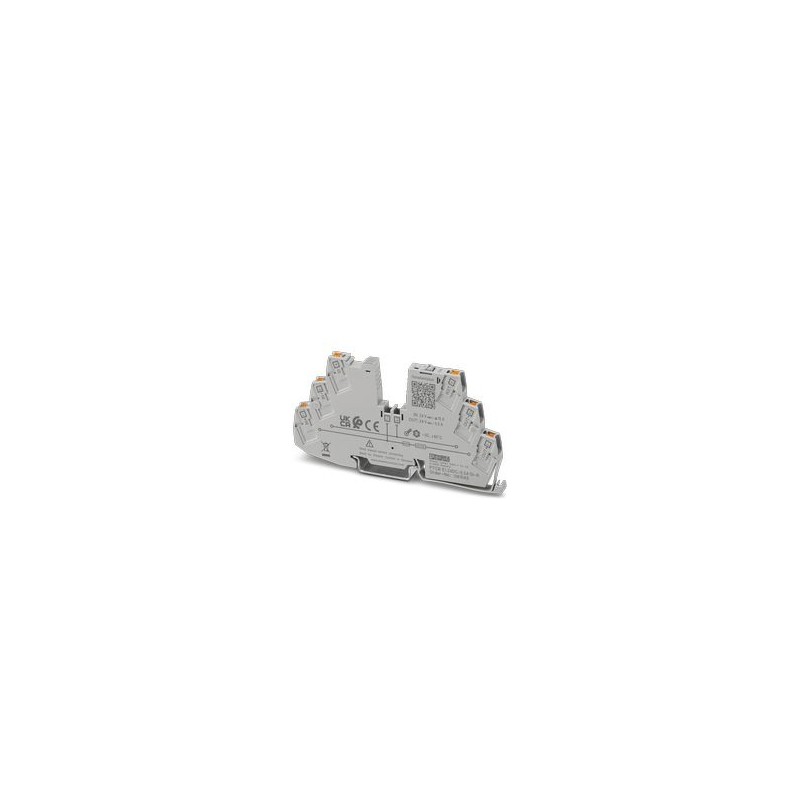

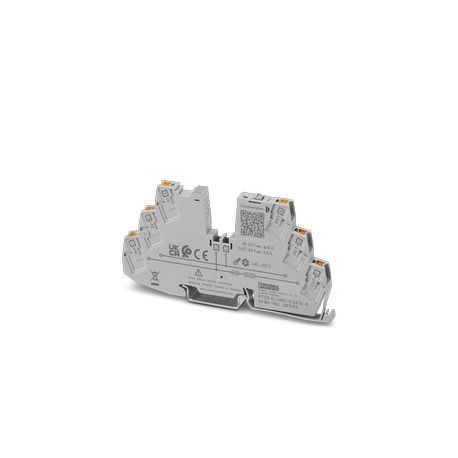

PTCB E1 24DC/0.5A SI-R 1361043 PHOENIX CONTACT Protection of single-channel electronic equipment for consume..
PTCB E1 24DC/0.5A SI-R
1361043
PHOENIX_CONTACT
Protection of single-channel electronic equipment for consumers of 12-24 V DC. Fixed rated current value: 0.5 A. With remote signal, remote reset and active current limiting. Can be combined with CLIPLINE rail terminals. For installation on DIN rails.
Electronic Appliance Protection Switches
Circuit breakers and fuses > Device circuit breaker
Over Current Protection
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Technical data
Notes
| General | |
| Observation | Connection for the signal line tested according to EN 61000-4-4 with 1 kV; If applicable, protective measures should be provided on the client's side |
| Repeated strong short circuits can reduce the melting integral of the integrated safety fuse. | |
Item Properties
| Construction | Rail-mounted, one-piece module |
| Product Type | Appliance Protection Switches, Electronic |
| Product Family | PTCB |
| Number of poles | 1 |
| Number of channels | 1 |
| Insulation Properties | |
| Kind of protection | Iii |
| Degree of pollution | 2 |
Electrical Properties
| Number of channels | 1 |
| General | |
| Operating voltage | 10 V DC ... 30 V DC |
| Nominal voltage | 24 V DC |
| Rated Current IN | 15 A DC (Total Input Current) |
| 0.5 A DC (Rated Current Output) | |
| Rated Current IN | 0.5 A DC |
| Rated current (preset) | 0.5 A |
| Dimensioning Transient Voltage | 0.5 kV |
| Shot Type | E (electronic) |
| Recirculation Resistance | max. 35 V DC |
| Pre-fuse required | It is only necessary if IMaxof the power supply is > the ability to short circuit. Built-in safety feature. |
| Short-circuit breakdown capability | 300 A |
| Dielectric Strength | max. 35 V DC (Charging circuit) |
| Active Current Limiting | Typ. 1.1 x IN |
| Fuse | electronic |
| Yield | > 98.5% |
| Resting Current I0 | Typ. 3.8 mA |
| Dissipated Power | Typ. 0.1W (no load) |
| < 0.7 W (in nominal operation) | |
| Module Initialization Time | 40 ms |
| Timeout after disconnecting a channel | 5 sec (in overload/short circuit) |
| Measurement Tolerance I | ± 7% |
| Temperature derating | 15 A (Total current at 60°C) |
| 20 A (Total current at 50°C) | |
| MTBF (IEC 61709, SN 29500) | 27129679 h (at 25°C at 21% load) |
| 12000480 h (at 40°C at 34.25% load) | |
| 1768284 h (at 60°C at 100% load) | |
| Voltage drop | 0.28 V (with 0.5 A) |
| Fail Safe Element | 4 A DC |
| Charging circuit | |
| Disconnection Time | ≤ 600 ms |
| ≥ 24ms (depending on available charge) | |
| Typical disconnection. 1.1 x IN | |
| Undervoltage disconnect | ≤ 9.2 V DC (active) |
| ≥ 10.2 V DC (idle) | |
| Surge Disconnect | ≥ 30.5 V DC (active) |
| ≤ 29.5 V DC (idle) | |
| Max. capacitive load | 5.7 mF (Depending on current setting and available short-circuit current) |
| Reset | |
| Input Voltage Range | 7 V DC ... 30 V DC (Downside Reset) |
| Current absorption | Typ. 0.4 mA (with 24 V DC) |
| Pulse Length | ≥ 50 ms (High) |
| ≥ 50 ms (Low) | |
| tension | < 5V DC (Low State) |
| > 8V DC (High State) | |
| Length to be de-insulated | 8 mm |
| Rigid conductor section | 0.2 mm² ... 2.5 mm² |
| AWG Conductor Section | 24 ... 12 |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| State Output | |
| Output voltage | 24 V DC (Error) |
| 0 V DC (no error) | |
| Output current | max. 0.015 A (Short Circuit Resistant) |
| Length to be de-insulated | 8 mm |
| Rigid conductor section | 0.2 mm² ... 4 mm² |
| AWG Conductor Section | 24 ... 12 |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 2.5 mm² |
Connection data
| AWG Conductor Section | (Converted according to IEC) |
| IN+ Main Circuit | |
| Connection type | Push-in connection |
| Length to be de-insulated | 8 mm |
| Flexible conductor section | 0.2 mm² ... 2.5 mm² |
| Rigid conductor section | 0.2 mm² ... 4 mm² |
| AWG Conductor Section | 24 ... 12 |
| Flexible conductor section with toe cap, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Flexible conductor section with toe cap, without plastic sleeve | 0.2 mm² ... 2.5 mm² |
| IN- Main Circuit | |
| Connection type | Push-in connection |
| Length to be de-insulated | 8 mm |
| Flexible conductor section | 0.2 mm² ... 2.5 mm² |
| Rigid conductor section | 0.2 mm² ... 4 mm² |
| AWG Conductor Section | 24 ... 12 |
| Flexible conductor section with toe cap, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Flexible conductor section with toe cap, without plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Main Circuit OUT | |
| Connection type | Push-in connection |
| Length to be de-insulated | 8 mm |
| Flexible conductor section | 0.2 mm² ... 2.5 mm² |
| Rigid conductor section | 0.2 mm² ... 4 mm² |
| AWG Conductor Section | 24 ... 12 |
| Flexible conductor section with toe cap, with plastic sleeve | 0.2 mm² ... 2.5 mm² |
| Flexible conductor section with toe cap, without plastic sleeve | 0.2 mm² ... 2.5 mm² |
Signage
| LED Channel Off | Off (Channel Off) |
| Yellow LED Channel | flashes (Programming Mode On) |
| Green LED Channel | On (Channel Connected) |
| Red LED Channel | Ignition (Channel Off, Overvoltage, or Active Undervoltage) |
| Temporarily illuminates (Channel disconnected, 5 sec cooling phase, overload or short-circuit shutdown) | |
| flashes (Channel disconnected, ready for reconnection, disconnection due to overload or short circuit) | |
| flashes rapidly (channel disconnected, extraneous voltage at the output, possible installation failure) |
Dimensions
| Dimension Scheme |  |
| Width | 6.2 mm |
| Height | 105.8 mm |
| Depth | 55.6 mm (With 7.5 mm rail) |
Material Data
| Material | PBT |
| PBT | |
| Flammability class according to UL 94 | V-0 |
Environmental and life-life conditions
| Environmental conditions | |
| Protection Index | IP20 |
| Ambient Temperature (Service) | -30 °C ... 60 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Altitude | ≤ 3000 m up to 52 °C (amsl) |
| ≤ 4000 m up to 46 °C (amsl) | |
| Humidity check | 96 h, 95% RH, 40 °C |
| Crashes (in service) | 30g (IEC 60068-2-27, Ea test) |
| Vibration (in service) | 10 Hz ... 59.6 Hz (Amplitude ±0.35 mm; according to IEC 60068-2-6, Fc test) |
| 59.6 Hz ... 150 Hz (5g acceleration; according to IEC 60068-2-6, Fc test) | |
| 5 Hz ... 100 Hz (4g resonance search; 4g resonance frequency; 90 min according to DNV GL class B) | |
Approvals
| UL Homologation | |
| Marked | UL/C-UL Listed UL 508 |
| UL Recognized UL 2367 | |
| NEC Class 2 according to UL 1310 | |
| UL/C-UL Listed ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | |
| DNV GL | |
| Marked | Approval for shipbuilding |
| DNV GL Data | |
| Temperature | to |
| Humidity | B |
| Vibration | B |
| EMC | to |
| Enclosure | to |
Standards & Specifications
| Rules/Provisions | EN 61000-6-2 |
| Observation | EMC - Interference Immunity for Industrial Areas |
| Rules/Provisions | EN 61000-6-3 |
| Observation | CEM - Disturbance Emission for Domestic, Commercial and Industrial Environments as well as Small Businesses |
| Rules/Provisions | EN 60068-2-78 |
| Observation | Environmental Influences - Humidity and Heat, Constant |
| Rules/Provisions | EN 50178 |
| Observation | Equipping high-intensity installations with electronic equipment |
| Rules/Provisions | EN 60068-2-6 |
| Observation | Environmental Influences - Oscillations (Sinusoidal) |
| Rules/Provisions | EN 60068-2-27 |
| Observation | Environmental Influences - Impacts |
| Rules/Provisions | EN 60068-2-30 |
| Observation | Environmental Influences - Part 2-30: Test Method - Db Test: Moist, Cyclic Heat |
assembly
| Type of mounting | Symmetrical rail: 35 mm |
| Feature Name | Feature Value |
|---|---|
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
| Number of poles (EF001391) | 1 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 105.8 mm |
| Depth (EF000049) | 55.6 mm |
| Mounting method (EF000003) | Other |
| Operating voltage (EF000111) | 30 V |
| Nominal current (EF000001) | 15 A |
| Active current limitation x IN (EF011922) | 0 |
| Fuse type (EF011923) | Electronic |
| Fail safe element (EF011924) | 4 A |
| Switch-off time (EF011925) | 0.6 ms |
| Max. capacitive load (EF011926) | 0.0057 µF |
| With remote signalling contact (EF000422) | No |
| Ambient temperature during operating (EF007515) | -30 °C |
