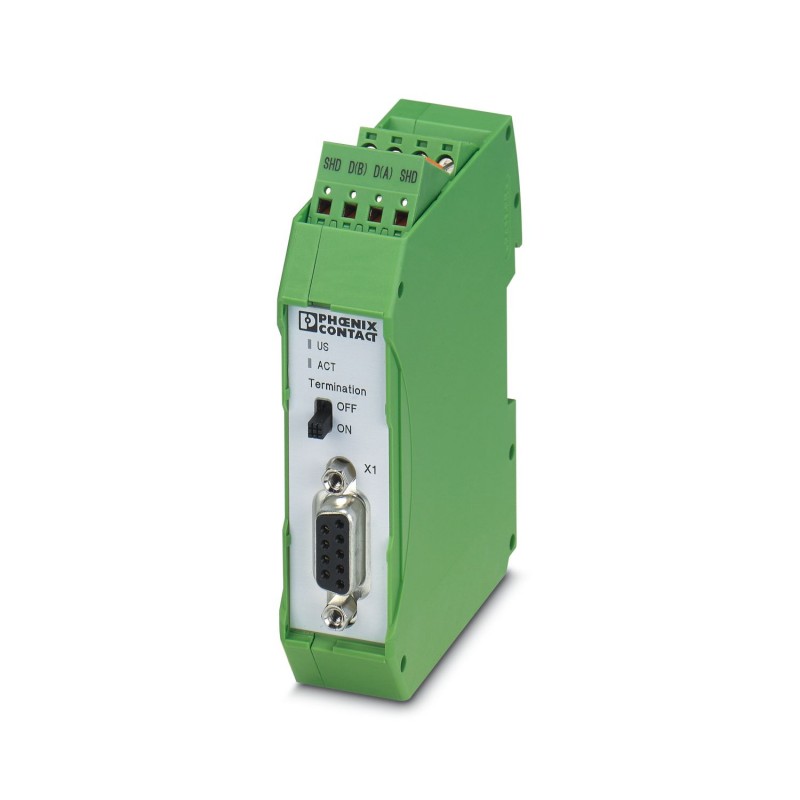

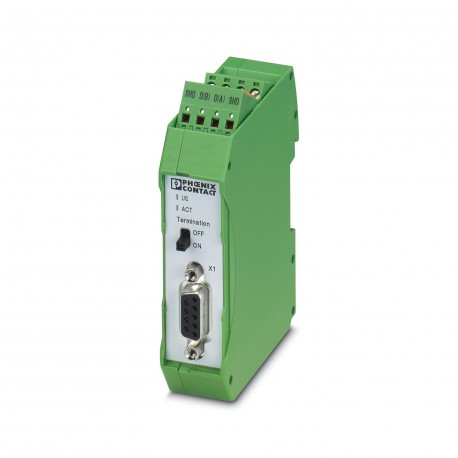

PSI-TERMINATOR-PB-TBUS 2702636 PHOENIX CONTACT Termination resistor
PSI-TERMINATOR-PB-TBUS
2702636
PHOENIX_CONTACT
Termination resistor
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2702636 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 320 (C-6-2017) |
| GTIN | 4055626251530 |
| Weight per Piece (excluding packing) | 74.650 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Altitude | ≤ 5000 m (For restrictions see manufacturer's declaration) |
| ≤ 2000 m (When used in EX zone 2) | |
| Degree of protection | IP20 |
General
| Electrical isolation | DIN EN 50178 (RS-485 // VCC) |
|---|---|
| Test voltage data interface/power supply | 1.5 kV AC (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Net weight | 74.65 g |
| Housing material | PA 6.6-FR |
| Color | green |
| MTTF | 3305 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 1923 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 911 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) | |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc X (Please follow the special installation instructions in the documentation!) |
| UL, USA/Canada | 508 Listed |
Power supply
| Nominal supply voltage | 24 V DC (via pluggable COMBICON screw terminal block) |
|---|---|
| Supply voltage range | 18 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Max. current consumption | 12 mA (18 V DC, no load on D-SUB) |
| 77 mA (18 V DC, current drain at D-SUB of 150 mA) | |
| Typical current consumption | 10 mA (24 V DC, no load on D-SUB) |
| 60 mA (24 V DC, current drain at D-SUB of 150 mA) | |
| Conductor cross section flexible max. | 2.50 mm² |
| Conductor cross section flexible min. | 0.20 mm² |
| Conductor cross section solid max. | 2.50 mm² |
| Conductor cross section solid min. | 0.20 mm² |
| Max. AWG conductor cross section, flexible | 12 |
| Min. AWG conductor cross section, flexible | 24 |
Serial interface
| Interface 1 | PROFIBUS acc. to IEC 61158, RS-485 2-conductor |
|---|---|
| Connection method | D-SUB 9, COMBICON |
| Transmission length | ≤ 1200 m (Depends on transmission speed and cable type) |
| Termination resistor | 390 Ω |
| 220 Ω | |
| 390 Ω (Can be connected) | |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 16 |
| Serial transmission speed | ≤ 12 Mbps |
| Output nominal voltage | 5 V DC |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Type of test | Free fall in acc. with EN 60068-2-31 |
| Test result | 1 m |
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | 25g, 11 ms period, half-sine shock pulse |
| Free from substances that could impair the application of coating | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV (Test Level 3) |
| Indirect discharge | ± 6 kV |
| Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 3 GHz (Test Level 3) |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 1 kV (Data line, asymmetrical) |
| Standards/regulations | EN 55011 |
| EN 61000-4-6 | |
| Frequency range | 0.15 MHz ... 80 MHz |
| Conformance | CE-compliant |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| UL, USA/Canada | 508 Listed |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027240490eCl@ss 4.127240490eCl@ss 5.027242208eCl@ss 5.119070400eCl@ss 6.019070400eCl@ss 7.019070403eCl@ss 8.019070403eCl@ss 9.019070403
