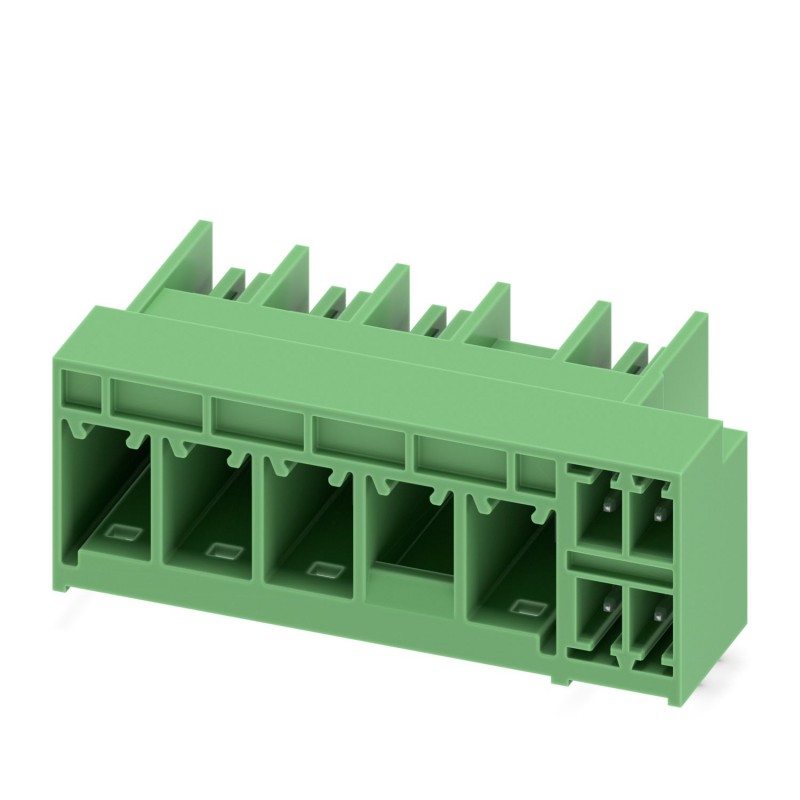

PCH 6/ 4+4-GL4-7,62 1054545 PHOENIX CONTACT Interline interval-based hybrid plate circ. printed, nominal cur.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

PCH 6/ 4+4-GL4-7,62 1054545 PHOENIX CONTACT Interline interval-based hybrid plate circ. printed, nominal cur..

PCH 6/ 4+4-GL4-7,62

1054545

PHOENIX_CONTACT

50

Interline interval-based hybrid plate circ. printed, nominal current: 41 A, number of poles: 8, pitch: 7.62 mm, color: green, surface of contact: Tin, assembly: wave Soldering

Hybrid base strip for circ plate. printed, nominal section: 6 mm², color: green, nominal current: 41 A, 8 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, article family: PCH 6/.. +4-GL, pitch: 7.62 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.1 mm, plug-in system: COMBICON PC 6 hybrid, Plug-in face orientation: Standard, locking: Snap-in lock, fixing type: Snap flange, packaging type: boxed

PCB hybrid header, nominal cross section: 6 mm2, color: green, nominal current: 41 A, 8 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: PCH 6/..+4-GL, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.1 mm, plug-in system: COMBICON PC 6 hybrid, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Latching flange, type of packaging: packed in cardboard

More details


Connectors > Printed circuit board connector

PCB Connectors (PCC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $345.64
Unit price: $6.91
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Product properties
Product typePCB hybrid header
Product familyPCH 6/..+4-GL
Product lineCOMBICON Connectors L
Number of positions8
Pitch7.62 mm
Number of connections8
Number of rows1
2
Number of potentials8
Mounting flangeLatch mechanism/latching at position 4
Pin layoutLinear pinning
Data management status
Article revision01
Electrical properties
Nominal current IN41 A
Nominal voltage UN630 V
Contact resistance0.42 mΩ
Rated voltage (III/3)630 V
Rated surge voltage (III/3)6 kV
Rated voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface contact area (top layer)Tin (2 - 4 µm Sn)
Metal surface contact area (middle layer)Nickel (1.3 - 3 µm Ni)
Metal surface soldering area (top layer)Tin (2 - 4 µm Sn)
Metal surface soldering area (middle layer)Nickel (1.3 - 3 µm Ni)
Material data - housing
Color (Housing)green (6021)
Insulating materialPA GF
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Dimensions
Dimensional drawingzzyynvpzer.jpg
Pitch7.62 mm
Width [w]47.25 mm
Height [h]19.5 mm
Length [l]28.2 mm
Installed height16.4 mm
Solder pin length [P]3.1 mm
3.1 mm
Pin dimensions1 x 1.2 mm
PCB design
Hole diameter1.7 mm
1.4 mm
Mechanical tests
Conductor connection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60999-1:1999-11
ResultTest passed
Repeated connection and disconnection
SpecificationIEC 60999-1:1999-11
ResultTest passed
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.75 mm² / solid / > 30 N
0.75 mm² / flexible / > 30 N
10 mm² / solid / > 90 N
6 mm² / flexible / > 80 N
Pull-out test
SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Insertion and withdrawal forces
ResultTest passed
No. of cycles25
Insertion strength per pos. approx.7 N
Withdraw strength per pos. approx.4 N
Contact holder in insert
SpecificationIEC 60512-15-1:2008-05
Contact holder in insert
Requirements >20 N		Test passed
Resistance of inscriptions
SpecificationIEC 60068-2-70:1995-12
ResultTest passed
Polarization and coding
SpecificationIEC 60512-13-5:2006-02
ResultTest passed
Visual inspection
SpecificationIEC 60512-1-1:2002-02
ResultTest passed
Dimension check
SpecificationIEC 60512-1-2:2002-02
ResultTest passed
Electrical tests
Thermal test Test group C
SpecificationIEC 60512-5-1:2002-02
Tested number of positions4
Insulation resistance
SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ
Temperature cycles
SpecificationIEC 60999-1:1999-11
ResultTest passed
Air clearances and creepage distances Power
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)630 V
Rated surge voltage (III/3)6 kV
minimum clearance value - non-homogenous field (III/3)5.5 mm
minimum creepage distance (III/3)8 mm
Rated insulation voltage (III/2)630 V
Rated surge voltage (III/2)6 kV
minimum clearance value - non-homogenous field (III/2)5.5 mm
minimum creepage distance (III/2)5.5 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm
Air clearances and creepage distances Signal
SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)160 V
Rated surge voltage (III/3)2.5 kV
minimum clearance value - non-homogenous field (III/3)1.5 mm
minimum creepage distance (III/3)2 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.5 mm
Rated insulation voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test directionsX-, Y- and Z-axis
Durability test
SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level7.3 kV
Contact resistance R10.42 mΩ
Contact resistance R20.46 mΩ
Insertion/withdrawal cycles25
Insulation resistance, neighboring positions> 5 MΩ
Climatic test
SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3SO2on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage3.31 kV
Shocks
SpecificationIEC 60068-2-27:2008-02
Pulse shapeSemi-sinusoidal
Acceleration30g
Shock duration18 ms
Test directionsX-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf 27 Mbytes
