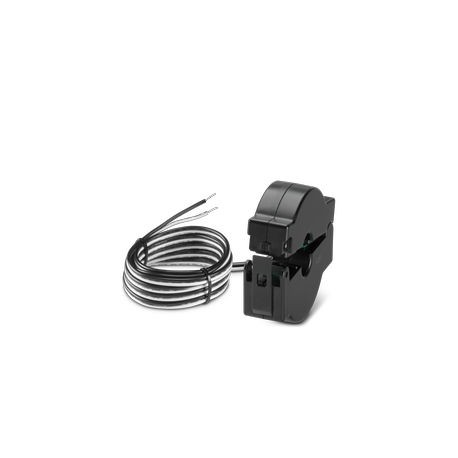

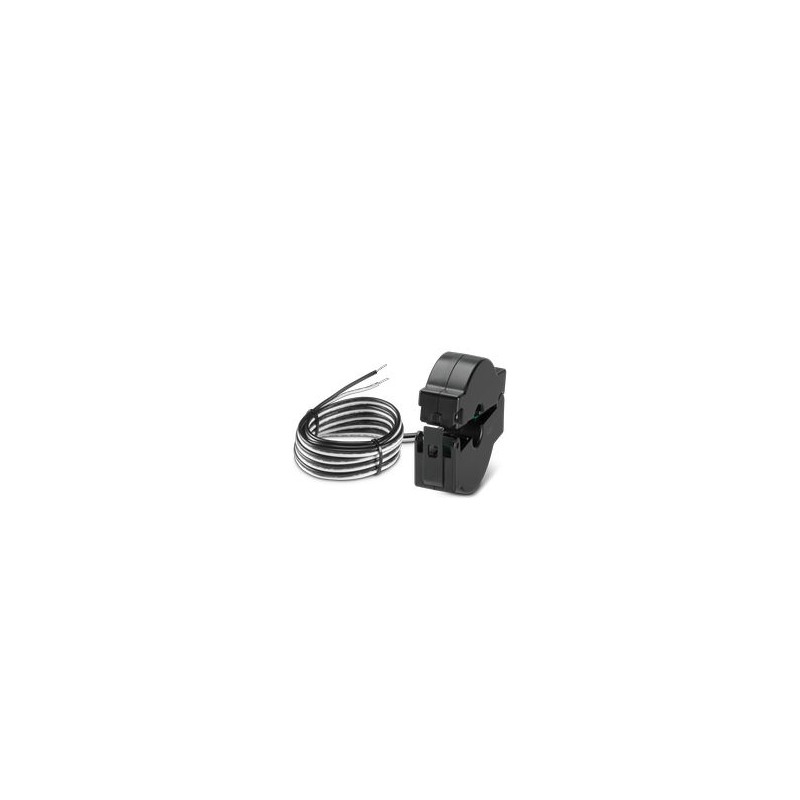

PACT SPC-20-1A-D13 1382378 PHOENIX CONTACT Split Core Current Transformers, Primary Current: 20 A AC, Second..
PACT SPC-20-1A-D13
1382378
PHOENIX_CONTACT
Split Core Current Transformers, Primary Current: 20 A AC, Secondary Current: 0 ... 1 A AC, Accuracy class: 3, rated power: 0.2 VA, signal line length: 2 m
Split-core current transformer, primary current: 0 ... 20 A AC, secondary current: 0 ... 1 A AC, rated power: 0.2 VA, length of signal cable: 2 m
Low-voltage industrial components > Current transformer
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Current transformer |
| Test voltage | 3 kV (EN 61869-1) |
| Rated insulation voltage | 0.72 kV |
| Measuring coil | |
| Length of signal cable | 2 m |
| General | |
| Converter type | Split-core current transformer |
| Current transformers | |
| Rated power | 0.2 VA |
| Thermal rated short-time current | Ith= 60 * In |
| Thermal rated continuous current | Id= 1.2 * In |
| Rated surge current | Idyn= 2.5 * Ith |
| Rated frequency fn | 50 Hz |
| 60 Hz | |
| Primary rated current range | 0 A AC ... 20 A AC (depends on type) |
| Converter type | Split-core current transformer |
| Signal | |
| Designation | Current output |
| Secondary rated current range Isn | 0 A AC ... 1 A AC |
| Surge current limitation factor | FS 5 |
| Accuracy class | 3 |
| Cross section AWG | (converted acc. to IEC) |
| Secondary connection | |
| Connection method | Single wires |
| Item dimensions | |
| Width | 73 mm |
| Height | 35 mm |
| Depth | 22 mm |
| Circular conductor | |
| Diameter | 13 mm (Inner hole) |
| Signal line | |
| Length | 2 m |
| Width | 73 mm |
| Height | 35 mm |
| Depth | 22 mm |
| Primary round conductor (diameter) | 13 mm |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 65 °C |
| Ambient temperature (storage/transport) | -45 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | Use only indoors, non-condensing |
| Standards/regulations | IEC 61010-1 |
| IEC 61010-2-032 | |
| IEC 61869-1 | |
| IEC 61869-2 |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Through-feed current converter |
| Rated primary current (EF007405) | 20 A |
| Rated secondary current (EF007471) | 1 A |
| Rated secondary apparent power (EF007470) | 0.2 VA |
| Accuracy class (EF008842) | Other |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Calibrated (EF008836) | No |
| With contact protection (EF008186) | No |
| Opening diameter (EF005153) | 13 mm |
| Snap mounting (EF007462) | Yes |
| With copper rail (EF007380) | No |
