PACT RCP-D140-10M 1033482 PHOENIX CONTACT Coil PACT RCP-D140-10M 1033482
PACT RCP-D140-10M
1033482
PHOENIX_CONTACT

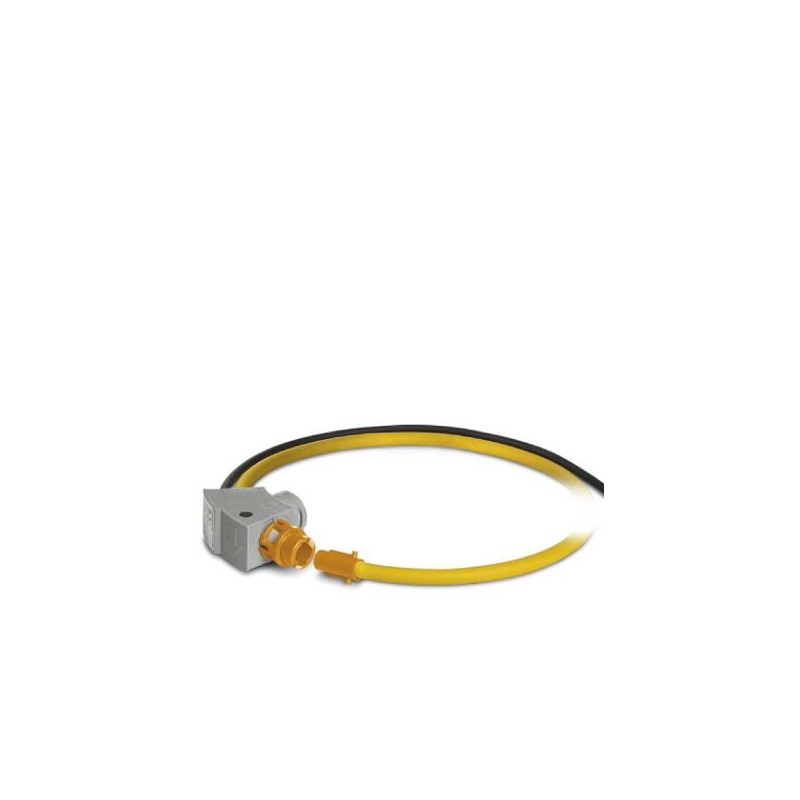

Coil - PACT RCP-D140-10M - 1033482
Rogowski Coil, The Rogowski coil measures AC current from rails and high-voltage lines.
Low-voltage industrial components > Accessories/spare parts for low-voltage switch technology
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Coil Rogowski, length of coil Rogowski: 450 mm, diameter: 140 mm, length of the signal cable: 10000 mm coil Rogowski measures the AC current of lanes and high-voltage lines.
Data commercial
| Key order | One million thirty three thousand four hundred eighty two |
|---|---|
| Packing unit | 1 pcs |
| Key selling | CK4A12 - |
| EAN | Four trillion fifty five billion six hundred twenty six million five hundred thirty nine thousand forty one |
| Unit weight (excluding packaging) | 372,400 g |
| Tariff number tariff | Ninety million three hundred nine thousand |
Environmental conditions
| Room temperature (service) | -30 °C ... 80 °C (Coil of measure) |
|---|---|
| Ambient temperature (storage / transport) | -40 °C ... 80 °C (Coil of measure) |
| Max. Height of fixing | < 2000 m |
| Humidity of air permissible (service) | 5 % ... 95 % (without condensation) |
| Degree of protection of the coil measuring | IP67 (not evaluated by UL) |
Data input coil measurement
| Range of measurement of frequency | 40 Hz ... 20000 Hz |
|---|---|
| Position Error | < 1 % |
| Linearity Error | 0,1 % |
Signals output coil measurement
| Output signal (at 50 Hz) | 100 mV (no load, with 1000 (A) |
|---|---|
| Output voltage (at idle) | VOUT= M * dI/dt |
| Output voltage (sinusoidal, running on empty) | 100 mV (VOUT= 2 * π * M * f * I (M = 0,318 µH; example: for 50 Hz, I = 1000)) |
General data coil measurement
| Length of the coil measuring | 450 mm |
|---|---|
| Diameter of the coil measuring | 8.3 mm ±0.2 mm |
| Length of the line signals | 10000 mm |
| Construction of the driver signal cable | 2x 0.22 mm (Signal (tinned)) |
| 1x 0.22 mm (Shielded (tinned)) | |
| Material of the coil | Elastollan |
| Material housing | PC |
| Isolation | Double insulation |
| Isolation voltage design | 1000 V AC (rms CAT III) |
| 600 V AC (rms CAT IV) | |
| Test voltage | 10,45 kV DC / 1 min.) |
| Basic accuracy | |
| UL, USA / Canada | UL 61010 Recognized |
General data
| Standards/specifications | IEC 61010-1 |
|---|---|
| IEC 61010-2-032 |
Standards and specifications
| Standards/specifications | IEC 61010-1 |
|---|---|
| IEC 61010-2-032 | |
| UL, USA / Canada | UL 61010 Recognized |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 10.0.1 | Twenty seven million two hundred nineteen thousand two hundred ninety |
|---|---|
| eCl@ss 9.0 | Twenty seven million two hundred nineteen thousand two hundred ninety |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 29 Mbytes |
|
