PHOENIX CONTACT INTERFACE Components (IF)FLX-D37F/32CH/DO/TDC3K 2908892 PHOENIX CONTACT Interface module

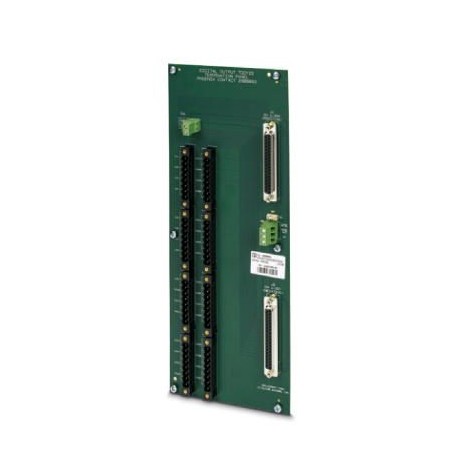

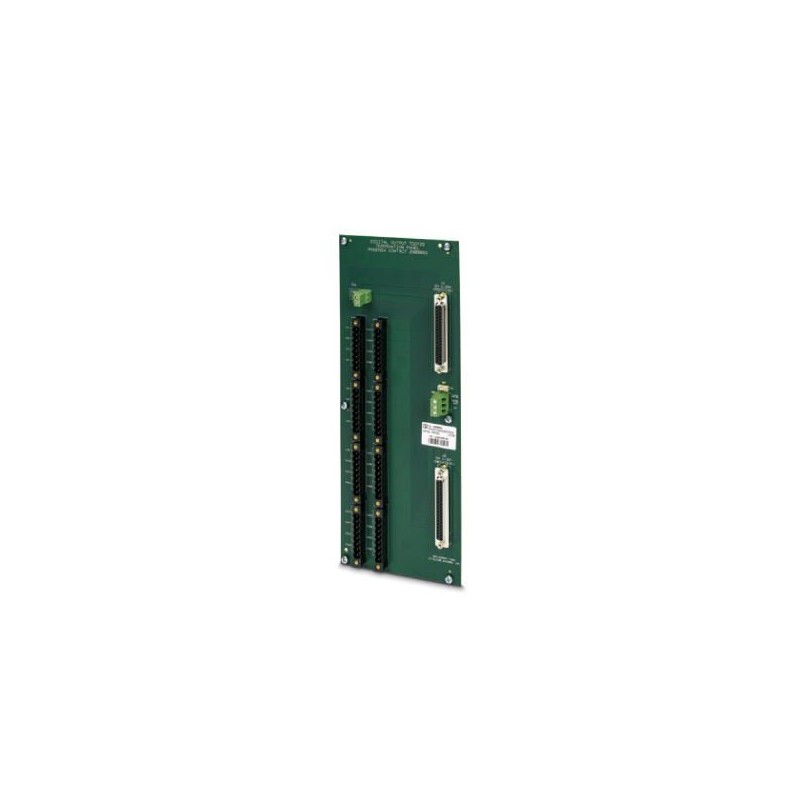

PHOENIX CONTACT FLX-D37F/32CH/DO/TDC3K 2908892 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

FLX-D37F/32CH/DO/TDC3K 2908892 PHOENIX CONTACT Interface module

Reference: FLX-D37F/32CH/DO/TDC3K

Code: 2908892

Manufacturer: PHOENIX CONTACT

Description:

Interface module
Transfer module for conversion of TDC3000 to modern control platforms, digital output, 32 channels

Categories:

  • PLC's > Interface module
  • PHOENIX CONTACT > INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 1.514,22 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Key Commercial Data

Orderkey2908892
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626733098
Weight per Piece (excluding packing)0.000 g
Custom tariff number85176200
Country of originUS (United States)

Dimensions

Width307.3 mm
Height120.7 mm
Depth38.3 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 75 °C

General

Max. operating voltage Umax30 V DC (Power supply)
Operating voltage30 V DC
Max. operating voltage30 V DC (Power supply)
Max. perm. current (per branch)500 mA
Max. permissible power (voltage feed)5 A (fuse limited)
Mounting positionany

Connection data for connection 1

Connection nameField level
Connection methodpluggable
Channels which can be connected32

Connection data for connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of connections2
Number of positions37

Supported controller

ControllerHoneywell TDC3000
- suitable I/O cardTDOY22

Classifications

ETIM for 2908892 PLC's (EC002780)

Feature nameType of electrical connection, control sided (EF008549)
Feature valueD-Sub
Feature nameNumber of poles (EF001391)
Feature value37
Feature nameRated voltage (EF000228)
Feature value30 V
Feature nameRated current (EF000227)
Feature value0.5 A
Feature nameDepth (EF000049)
Feature value38.3 mm
Feature nameWidth (EF000008)
Feature value307.3 mm
Feature nameHeight (EF000040)
Feature value120.7 mm
