PACT RCP-4000A-1A-D190-3M-UV 1033485 PHOENIX CONTACT Current transformer
PACT RCP-4000A-1A-D190-3M-UV
1033485
PHOENIX_CONTACT
Current transformer

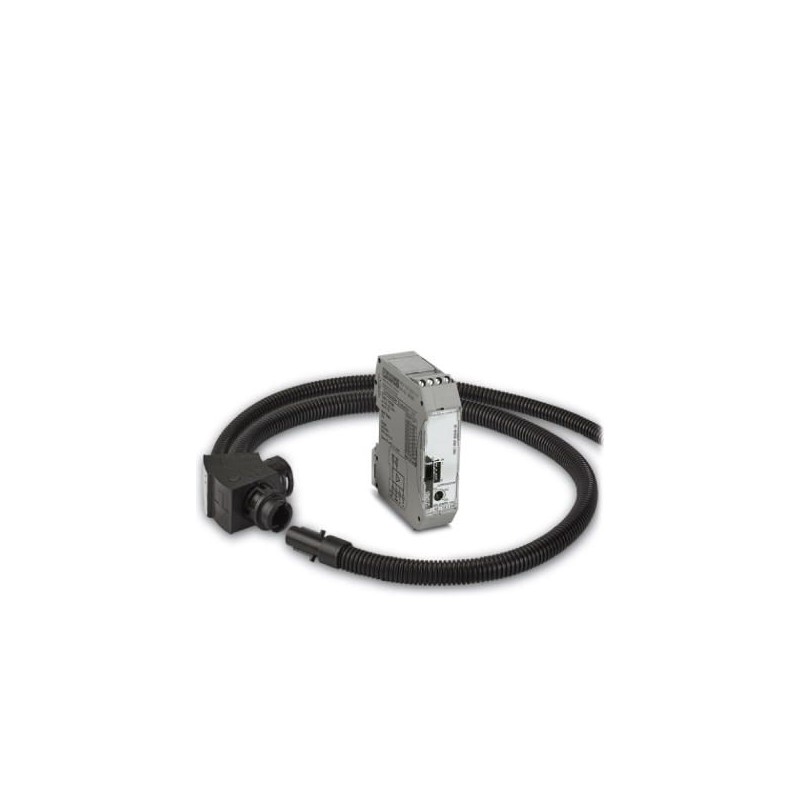

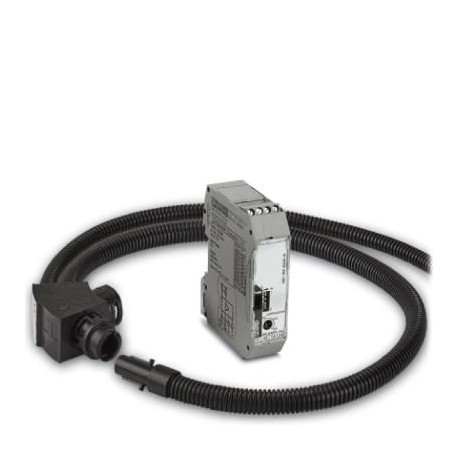

Set consisting of a 1 A measurement transducer and a Rogowski coil resistant to ultraviolet rays with signal line. Rogowski coil length: 600 mm, diameter: 190 mm. Signal line length: 3 m. The coil measures AC current from busbars and high-voltage lines.
Low-voltage industrial components > Current transformer
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1033485 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626538761 |
| Weight per Piece (excluding packing) | 440.300 g |
| Custom tariff number | 85437090 |
| Country of origin | DE (Germany) |
Measuring transducer supply
| Nominal supply voltage | 24 V DC -20 % ... +25 % |
|---|---|
| Nominal supply voltage range | 19.2 V DC ... 30 V DC |
| Max. current consumption | 190 mA |
| Power consumption | 4 W |
Measuring coil input data
| Frequency measuring range | 40 Hz ... 20000 Hz |
|---|---|
| Position error | < 1 % |
| Linearity error | 0.1 % |
Measuring transducer input data
| Measuring ranges (current) | 100 A 250 A 400 A 630 A 1000 A 1500 A 2000 A 4000 A |
|---|---|
| Configurable/programmable | Via DIP switches |
| Phase angle | < 1 ° |
| Rated power | 1.5 VA |
| Max. distances for copper cables at PN max | 32 m (0.75 mm² (AWG 20)) |
| 64 m (1.5 mm² (AWG 16)) | |
| 107 m (2.5 mm² (AWG 14)) |
Measuring transducer signal input
| Input signal (at 50 Hz) | 100 mV (1000 A) |
|---|---|
| Input impedance | 27 kΩ (smallest measuring range) |
Measuring coil signal output
| Output signal (at 50 Hz) | 100 mV (no load, at 1,000 A) |
|---|---|
| Output voltage (in no-load operation) | VOUT= M * dI/dt |
| Output voltage (sinusoidal, in no-load operation) | 100 mV (VOUT= 2 * π * M * f * I (M = 0.318 μH; example: At 50 Hz; I = 1,000 A)) |
General data, measuring coil
| Length of measuring coil | 600 mm |
|---|---|
| Diameter of measuring coil | 8.3 mm ±0.2 mm |
| Length of signal cable | 3000 mm |
| Conductor structure signal line | 2x 0.22 mm (Signal (tinned)) |
| 1x 0.22 mm (Shielding (tinned)) | |
| Coil material | Elastollan |
| Housing material | PC |
| Insulation | double insulation |
| Rated insulation voltage | 1000 V AC (rms CAT III) |
| 600 V AC (rms CAT IV) | |
| Test voltage | 10.45 kV (DC / 1 min.) |
| Basic accuracy |
General data for measuring transducer
| Linearity error | < 0.5 % (From the range end value) |
|---|---|
| Maximum transmission error | ≤ 0.5 % (From the range end value) |
| Frequency range | 45 Hz ... 65 Hz |
| Max. detectable harmonics | < 2 kHz |
| Current consumption | < 190 mA (at 19.2 V) |
| Housing material | Polyamide |
| Test voltage | 1.5 kV AC (Supply/input and output: 50 Hz, 1 min) |
| Operating voltage display | Green LED |
| UL, USA/Canada | UL 508 Listed |
General data
| Standards/regulations | IEC 61010-1 |
|---|---|
| IEC 61010-2-032 | |
| Insulation | double insulation |
| Degree of pollution | 2 |
| Overvoltage category | III (1,000 V, to neutral conductor) |
| IV (600 V, to neutral conductor) | |
| Temperature coefficients | 0.005 %/K (+10°C ... +70°C; both components have the same ambient temperature) |
| 0.07 %/K (-20°C ... +10°C; both components have the same ambient temperature) | |
| Typical measuring error | < 1 % |
Connection data
| Connection name | Measuring transducer side |
|---|---|
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Screw thread | M3 |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Torque | 0.5 Nm ... 0.6 Nm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 80 °C (Measuring coil) |
|---|---|
| -20 °C ... 70 °C (Measuring transducer) | |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C (Measuring coil) |
| -25 °C ... 85 °C (Measuring transducer) | |
| Maximum altitude | < 2000 m |
| Measuring coil degree of protection | IP67 (not assessed by UL) |
| Measuring transducer degree of protection | IP20 |
Standards and Regulations
| Standards/regulations | IEC 61010-1 |
|---|---|
| IEC 61010-2-032 | |
| Insulation | double insulation |
| Degree of pollution | 2 |
| Overvoltage category | III (1,000 V, to neutral conductor) |
| IV (600 V, to neutral conductor) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
