NBC-P12MSD/10,0-93E 1476014 PHOENIX CONTACT Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, halogen-free ..
NBC-P12MSD/10,0-93E
1476014
PHOENIX_CONTACT

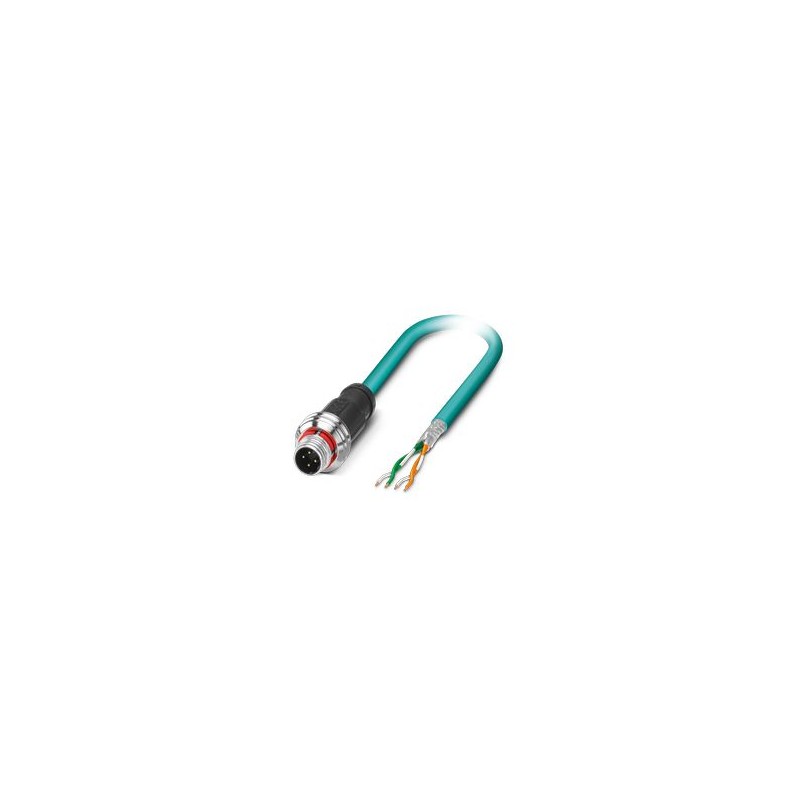

Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, halogen-free PUR, water blue RAL 5021, shielded (Advanced Shielding Technology), Straight M12 Push-pull connector, encoding: D / IP67, to free cable end, cable length: 10 m
Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, shielded (Advanced Shielding Technology), M12 straight connector, coding: D Push-pull / IP67, to free cable end, cable length: 10 m
Network cable, Ethernet CAT5 (100 Mbit/s), 4-pole, shielded (Advanced Shielding Technology), M12 Push-Pull straight male, coding: D / IP67, on free conductor end, cable length: 10 m
Sensors > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Packaged data cable |
| Sensor Type | Ethernet |
| No. of poles | 4 |
| Application | Standard |
| Shielded | Yes |
| Bus system | Ethernet |
| Signal Type/Category | Ethernet CAT5 (IEC 11801), 100 MBit/s |
| Status Reporting | no |
| Available Status Indication | no |
| Rated voltage UN | 48 V AC |
| 60 V DC | |
| Rated Current IN | 1.5 A |
| Transmission medium | copper |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Connection 1 | |
| type | M12 Push-Pull Straight Male / IP67 |
| No. of poles | 4 |
| Clamping Type | Push-Pull |
| Encoding Type | D (Data) |
| Combustibility class according to UL 94 | V0 |
| Material | CuSn (Contact) |
| Ni/Au (Contact Surface) | |
| PA (Contact Carrier) | |
| TPU, flame-retardant, self-extinguishing (Handle) | |
| Zinc Die Casting, Nickel Plated (Screw Connection) | |
| FKM (Gasket) | |
| Manoeuvring cycles | ≥ 100 |
| Mass Resistivity | ≤ 5 mΩ |
| Insulation Resistance | ≥ 100 MΩ |
| Overvoltage Category | II |
| Degree of pollution | 3 |
| Degree of protection | IP67 |
| Ambient temperature (operating) | -25 °C ... 85 °C |
| Connection 2 | |
| type | Free conductor end |
| Cable Length | 10 m |
| CAT5 Flexible Ethernet, 2-Pair [93E] | |
| Dimensioned Drawing |  |
| Line Weight | 42 kg/km |
| UL AWM Style | 20963 (80 °C / 30 V) |
| Cable Standards/Regulations | Electrical requirements EN 50288-2-2 |
| No. of poles | 4 |
| Shielded | Yes |
| Cable Type | CAT5 Flexible Ethernet, 2-Pair [93E] |
| Conductor structure | 2x2xAWG26/7, SF/UTP |
| Runtime | 5.3 ns/m |
| Line Signal Conductor Structure | 7x 0.16 mm |
| AWG Signal Line | 26 |
| Conductor cross-section | 2x 2x 0.14 mm² |
| Wire diameter with insulating sheath | 0.98 mm |
| Conductor Outer Diameter | 6.4 mm ±0.2 mm |
| Outer Sheath, Material | WHILE |
| Outer sheath, color | sea blue RAL 5021 |
| Conductor material | Bare Cu Wire |
| Material, Wire Insulation | PE foam |
| Single conductor, color | white/orange-orange, white/green-green |
| Outer sheath wall thickness | 1.2 mm |
| Stranding in pairs | 2 conductors in pairs |
| Full stranding | 2 paisa with 2 fillers to the core |
| Optical Shielded Cover | 70 % |
| Insulation Resistance | ≥ 500 MΩ*km |
| Mating resistance | ≤ 100.00 mΩ/m (with 10 MHz) |
| Twisted pair resistance | ≤ 290,00 Ω/km |
| Characteristic Impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Line Capacity | ca. 45 nF/km (at 1 kHz) |
| Nominal cable voltage | ≤ 100 V (Peak value, not for high currents) |
| Wire-to-wire test voltage | 700 V (50 Hz, 1 min.) |
| Wire/Shield Test Voltage | 700 V (50 Hz, 1 min.) |
| Permissible current load of the cable | 2 A (according to DIN VDE 0891-1) |
| Minimum bending radius, fixed | 4 x D |
| Minimum bending radius, flexible | 8 x D |
| Minimum bending radius, fixed | 26 mm |
| Minimum bending radius, movable | 52 mm |
| Tensile strength | ≤ 80 N |
| Paraphonic attenuation (NEXT) | 65.3 dB (at 1 MHz) |
| 56.3 dB (at 4 MHz) | |
| 50.3 dB (at 10 MHz) | |
| 47.2 dB (at 16 MHz) | |
| 45.8 dB (at 20 MHz) | |
| 42.9 dB (at 31.25 MHz) | |
| 38.4 dB (at 62.5 MHz) | |
| 35.3 dB (at 100 MHz) | |
| Power-sum crosstalk attenuation (PSNEXT) | 62.3 dB (at 1 MHz) |
| 53.3 dB (at 4 MHz) | |
| 47.3 dB (at 10 MHz) | |
| 44.2 dB (at 16 MHz) | |
| 42.8 dB (at 20 MHz) | |
| 39.9 dB (at 31.25 MHz) | |
| 35.4 dB (at 62.5 MHz) | |
| 32.3 dB (at 100 MHz) | |
| Return Attenuation (RL) | 23 dB (at 4 MHz) |
| 24.1 dB (at 8 MHz) | |
| 25 dB (with 10 MHz) | |
| 25 dB (with 16 MHz) | |
| 25 dB (at 20 MHz) | |
| 23.6 dB (at 31.25 MHz) | |
| 21.5 dB (at 62.5 MHz) | |
| 20.1 dB (at 100 MHz) | |
| Shielding Attenuation | 3.2 dB (at 1 MHz) |
| 6 dB (at 4 MHz) | |
| 9.5 dB (at 10 MHz) | |
| 12.1 dB (at 16 MHz) | |
| 13.6 dB (at 20 MHz) | |
| 17.1 dB (at 31.25 MHz) | |
| 24.8 dB (at 62.5 MHz) | |
| 32 dB (at 100 MHz) | |
| Halogen-free | in accordance with IEC 60754-1 |
| Flame Resistance | according to IEC 60332-1-2 |
| according to UL VW1 | |
| in accordance with UN ECE-R 118.03 | |
| Oil Resistance | according to EN 60811-2-1 |
| Ambient temperature (operating) | -40 °C ... 80 °C (cables, fixed installation) |
| -20 °C ... 80 °C (Cables, mobile installation) | |
| Ambient temperature (installation) | -20 °C ... 80 °C |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Positioning cable feed, field-sided (EF005928) | Other |
| Cable length (EF000536) | 10 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -20 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP67 |
