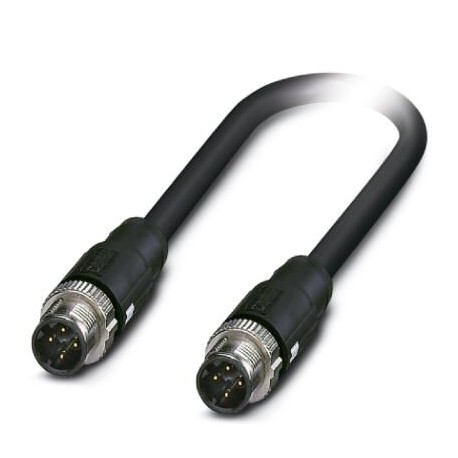

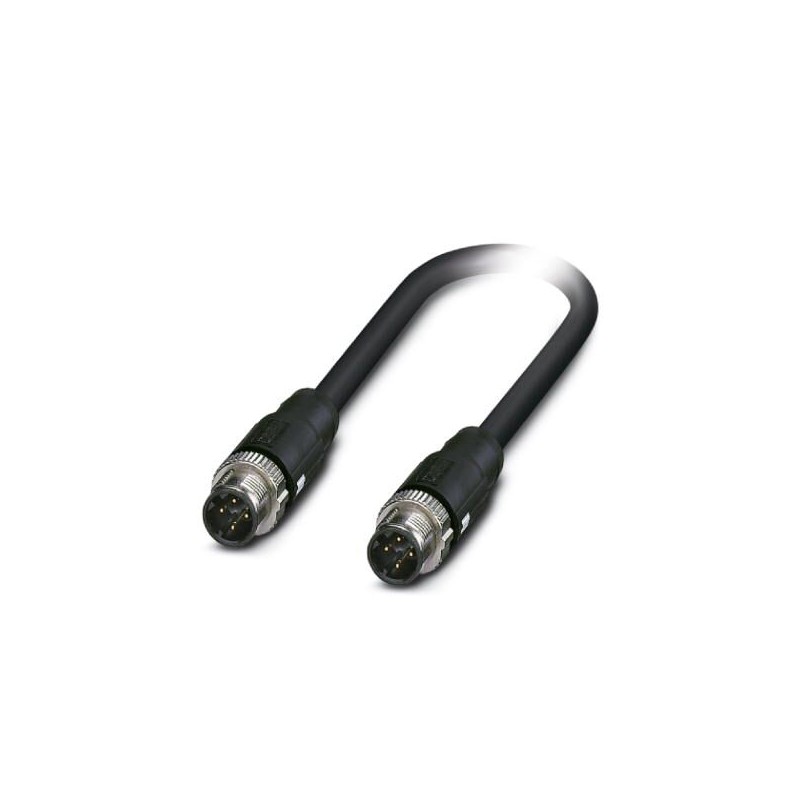

NBC-MSD/42,0-939/MSD SCO RAIL 1081336 PHOENIX CONTACT Network cable, PROFINET CAT5 (100 Mbps), 4-position, P.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

NBC-MSD/42,0-939/MSD SCO RAIL 1081336 PHOENIX CONTACT Network cable, PROFINET CAT5 (100 Mbps), 4-position, P..

NBC-MSD/42,0-939/MSD SCO RAIL

1081336

PHOENIX_CONTACT

4

Product on demand only, returns will not be accepted.

Network cable, PROFINET CAT5 (100 Mbps), 4-position, PE-X halogen-free, black, shielded, Plug straight M12 SPEEDCON / IP65, coding: D, on Plug straight M12 SPEEDCON / IP65, coding: D, cable length: 42 m, Product tested according to customer specification/rail application

Network cable, PROFINET CAT5 (100 MBit/s), 4-pole halogen-free, shielded, M12 straight connector, coding: D SPEEDCON / IP65, a M12 straight connector, coding: D SPEEDCON / IP65, cable length: 42 m, Item tested according to customer specification/railway application

More details


Sensors > Sensor-actuator patch cord

Industrial Field Connectivity (IFC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $1,713.60
Unit price: $428.40
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey1081336
Packing unit1
GTIN4055626809960
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
M12 SPEEDCON plug, straight, shielded

Circuit diagram

Circuit diagram
Contact assignment of the M12 plugs

Schematic diagram

Schematic diagram
Pin assignment M12 male connector, 4-pos., D-coded, male side

Cable cross section

Cable cross section
PROFINET railway applications [939]

Back to top

Dimensions

Length of cable42 m
Back to top

General data

NoteThe cable is 100% electrically tested for continuity.
Rated current at 40°C4 A
Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Standards/regulationsM12 connector IEC 61076-2-101
Overvoltage categoryII
Degree of pollution3
Contact materialCuSn
Contact carrier materialTPU GF
Contact surface materialNi/Au
Back to top

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP65
No. of positions (pin connector pattern)4
CodingD (Data)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Shieldedyes
Insulation resistance≥ 100 MΩ
Test voltage500 V DC ±15 V DC (for 60 s, insulation resistance according to DIN EN 60512-3-1)
1.4 kV AC (for 60 s, dielectric strength according to DIN EN 60512-4-1)
Insertion/withdrawal cycles≥ 100 (Quantity: 500 with Phoenix Contact mating connector)
Torque0.4 Nm
Ambient temperature (operation)-40 °C ... 90 °C
Weight10 g ±5 g
Back to top

Characteristics head 2

Head typePlug straight M12 SPEEDCON / IP65
No. of positions (pin connector pattern)4
CodingD (Data)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Shieldedyes
Insulation resistance≥ 100 MΩ
Test voltage500 V DC ±15 V DC (for 60 s, insulation resistance according to DIN EN 60512-3-1)
1.4 kV AC (for 60 s, dielectric strength according to DIN EN 60512-4-1)
Insertion/withdrawal cycles≥ 100 (Quantity: 500 with Phoenix Contact mating connector)
Torque0.4 Nm
Ambient temperature (operation)-40 °C ... 90 °C
Weight10 g ±5 g
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-101
Flammability rating according to UL 94V0
Back to top

Cable

Cable typePROFINET railway applications
Cable type (abbreviation)939
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulation1.4 mm ±0.1 mm
Wire colorswhite-blue, orange-yellow
Overall twistStar quad
ShieldingAluminum-lined polyester foil, tinned copper braided shield
External sheath, colorblack
Outer sheath thickness1 mm
External cable diameter D6.6 mm ±0.2 mm
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation6 x D
Tensile strength GRP≤ 60 N (temporary)
≤ 15 N (Permanent)
Cable weight71 kg/km
Outer sheath, materialPE-X
Material conductor insulationCell PE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 5 GΩ*km
Conductor resistance≤ 54.4 Ω/km
Cable capacity44 nF/km (core-core)
Wave impedance100 Ω ±5 Ω (f = 100 MHz)
Near end crosstalk attenuation (NEXT)76 dB (with 1 MHz)
71 dB (at 4 МHz)
64 dB (at 10 MHz)
60 dB (at 16 MHz)
56 dB (at 31.25 МHz)
52 dB (at 62.5 МHz)
48 dB (at 100 MHz)
45 dB (at 155 MHz)
42 dB (at 200 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)73 dB (with 1 MHz)
68 dB (at 4 МHz)
61 dB (at 10 MHz)
57 dB (at 16 MHz)
53 dB (at 31.25 МHz)
49 dB (at 62.5 МHz)
45 dB (at 100 MHz)
42 dB (at 155 MHz)
39 dB (at 200 MHz)
Attenuation1.5 dB (with 1 MHz)
3.3 dB (at 4 МHz)
5.3 dB (at 10 MHz)
6.9 dB (at 16 MHz)
9.9 dB (at 31.25 МHz)
14.5 dB (at 62.5 МHz)
18.8 dB (at 100 MHz)
23.6 dB (at 155 MHz)
27.3 dB (at 200 MHz)
Return loss (RL)25 dB (with 1 MHz)
25 dB (at 4 МHz)
28 dB (at 10 MHz)
28 dB (at 16 MHz)
27 dB (at 31.25 МHz)
26 dB (at 62.5 МHz)
25 dB (at 100 MHz)
25 dB (at 155 MHz)
23 dB (at 200 MHz)
Signal speed0.75 c
Signal runtime4.4 ns/m
Shield attenuation60 dB (up to 1000 MHz)
Coupling resistance< 13.00 mΩ/m (f = 1 MHz)
< 8.00 mΩ/m (f = 10 MHz ... 100 MHz)
Cable impedance100 Ω ±15 Ω (f = 0.5 MHz ... 3 MHz)
Nominal voltage, cable125 V
Test voltage Core/Core1000 V AC (50 Hz, 1 min.)
Test voltage Core/Shield1000 V AC (50 Hz, 1 min.)
Fire protection in rail vehiclesBS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II)
DIN 5510-2 (Fire protection level 1, 2, 3, 4)
EN 45545-2 (Risk level HL1 - HL3)
EN 50306-4
NF F16-101 (Classification C/F1)
NF F16-101 (Internal cable A1, A2, B/external cable A1, A2, B)
NFPA 130
PN-K-02511
UIC 564-2 (Class A)
Flame resistanceaccording to EN 60332-1-2
according to EN 50266-2-5
according to ISO 14572 5.21 (UN ECE-R 118.01)
Halogen-freeAccording to EN 50267-2-1
according to EN 60684-2
Resistance to oilaccording to EN 60684-2, 72 h at 100 °C, IRM 902
Other resistanceResistant to fuel according to EN 60684-2, 72 h at 100 °C, IRM 903
Resistant to ozone according to EN 50306-4, 72 h at 40 °C, procedure B, volume concentration 200 x 10-6
Concentration of fumesEN 61034-2
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 70 °C (cable, flexible installation)
