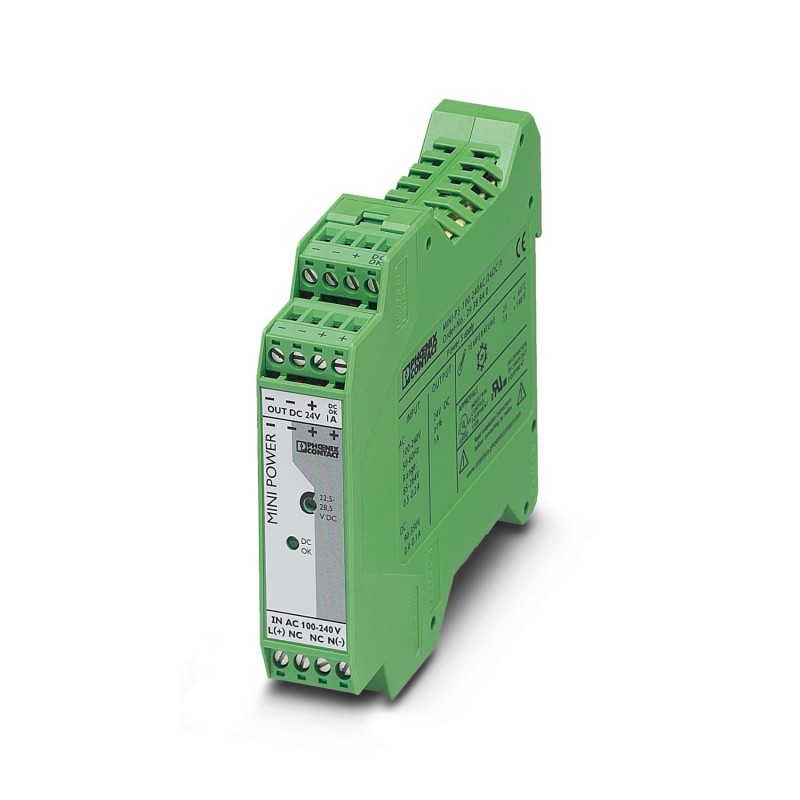

MINI-PS-100-240AC/24DC/1 2938840 PHOENIX CONTACT Power supply unit
MINI-PS-100-240AC/24DC/1
2938840
PHOENIX_CONTACT
Power supply unit
Power Supplies (PS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2938840 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 38 (IF-2005) |
| GTIN | 4017918927097 |
| Weight per Piece (excluding packing) | 200.000 g |
| Custom tariff number | 85044030 |
| Country of origin | CN (China) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) |
Input data
| Nominal input voltage range | 100 V AC ... 240 V AC |
|---|---|
| Input voltage range | 85 V AC ... 264 V AC |
| 90 V DC ... 350 V DC | |
| AC frequency range | 45 Hz ... 65 Hz |
| Frequency range DC | 0 Hz |
| Current consumption | 0.5 A (85 V AC) |
| 0.2 A (264 V AC) | |
| approx. 0.4 A (90 V DC) | |
| approx. 0.1 A (350 V DC) | |
| Nominal power consumption | 45 VA |
| Inrush surge current | < 15 A (typical) |
| Mains buffering | > 20 ms (120 V AC) |
| > 110 ms (230 V AC) | |
| Input fuse | 1.25 A (slow-blow, internal) |
Output data
| Nominal output voltage | 24 V DC ±1 % |
|---|---|
| Setting range of the output voltage (USet) | 22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted) |
| Nominal output current (IN) | 1 A (up to 60°C) |
| POWER BOOST (IBoost) | 1.3 A |
| Connection in parallel | Yes, for assembling redundant systems and increasing efficiency |
| Connection in series | yes |
| Residual ripple | < 100 mVPP |
| Output power | 24 W |
| Typical response time | < 0.2 s |
| Peak switching voltages nominal load | < 100 mVPP(20 MHz) |
| Maximum power dissipation in no-load condition | < 1.4 W |
| Power loss nominal load max. | < 4.5 W |
General
| Net weight | 0.2 kg |
|---|---|
| Operating voltage display | Green LED |
| Efficiency | > 80 % (for 230 V AC and nominal values) |
| Insulation voltage input/output | 3 kV (routine test) |
| 3 kV (type test) | |
| Protection class | II (in closed control cabinet) |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | > 500000 h |
| Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
| Assembly instructions | alignable: vertical with spacing = 5 cm, horizontal with zero spacing |
Connection data, input
| Connection method | Pluggable screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 7 mm |
| Screw thread | M3 |
Connection data, output
| Connection method | Pluggable screw connection |
|---|---|
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Stripping length | 7 mm |
Signaling
| Output name | Active |
|---|---|
| Output description | UOUT> 21.5 V: High signal |
| Output voltage | + 24 V (Signal) |
| Continuous load current | max. 20 mA |
| Status display | Green LED (Uout> 21,5 V DC: LED permanently lit) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise emission | EN 55011 (EN 55022) |
| Noise immunity | EN 61000-6-3:2007/A1:2011 |
| Connection in acc. with standard | CUL |
| Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
| Standard - Safe isolation | DIN VDE 0100-410 |
| UL approvals | UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 25; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027040702eCl@ss 4.127040702eCl@ss 5.027242213eCl@ss 5.127242200eCl@ss 6.027049000eCl@ss 7.027049002eCl@ss 8.027049002eCl@ss 9.027040701
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PROTECTION EN.pdf | 27 Mbytes |
|
