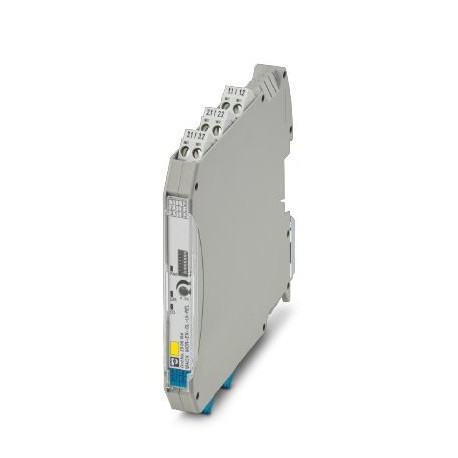

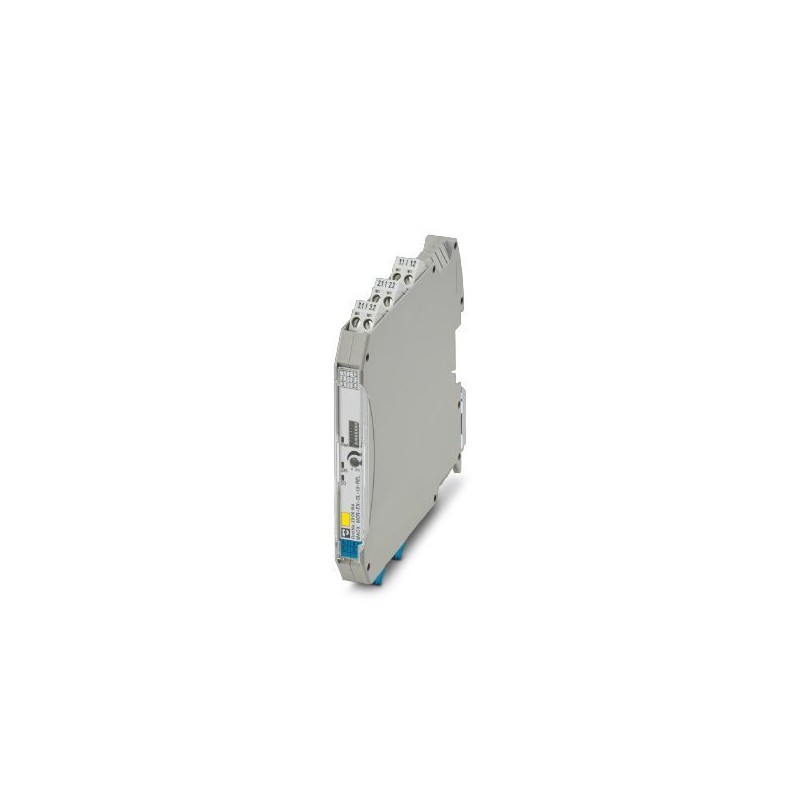

MACX MCR-EX-SL-UI-REL

2906164

PHOENIX_CONTACT

Limit value switch with Ex i input for active current and voltage signals and a limit-value relay output (changeover contact). Can be set via DIP switch and potentiometer, galvanic 3-way electrical isolation, up to SIL2 (SC3), PLc Cat.1, screw connection.

Limit value switch with intrinsically safe input for active voltage and current signals and a limit value relay output (switched contacts). Adjustable with DIP switch and potentiometer, 3-way galvanic separation, up to SIL2 (SC3), PLc cat.1, screw connection.

More details


Sensors > Isolation amplifier

INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $576.27
Unit price: $576.27
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Key Commercial Data

Orderkey2906164
Packing unit1
Catalog pagePage 168 (C-5-2019)
GTIN4055626043173
Custom tariff number85437090

Drawings

Block diagram

Block diagram

Pictogram

Pictogram

Back to top

Dimensions

Width12.5 mm
Height99 mm
Depth114.5 mm
Back to top

Ambient conditions

Ambient temperature (operation)-20 °C ... 65 °C (Any mounting position)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Maximum altitude≤ 2000 m
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Degree of protectionIP20
Noise immunityEN 61000-6-2 When being exposed to interference, there may be minimal deviations.
Back to top

Input data

Signal inputIntrinsically safe
Voltage input signal0.1 V ... 10 V
Current input signal0.2 mA ... 20 mA
0.18 mA ... 21 mA (Maximum range)
Input resistance of voltage input> 100 kΩ
Input resistance current input< 28 Ω
Switching hysteresisoff: approx. 0.5 %, on: approx. 1 %
Line fault detectionBreak U
Short circuit U > 10.8 V, I > 21.1 mA
Back to top

Output data

Output nameRelay output
Contact type1 PDT
Contact materialAgSnO2, hard gold-plated
Max. switching current≤ 4 A AC (cos phi = 1)
≤ 1 A DC (ohmic load, 24 V DC, 50 mW)
≤ 0.2 A DC (ohmic load, 120 V DC)
Mechanical service life≤ 107cycles
Back to top

Power supply

Nominal supply voltage24 V DC
Supply voltage range9.6 V DC ... 30 V DC (12 V DC ... 24 V DC (-20 % ... +25 %))
Typical current consumption38 mA (24 V DC)
Max. current consumption90 mA (10 V DC)
Power dissipation< 0.9 W
Power consumption≤ 1.2 W
Back to top

Connection data

Connection methodScrew connection
Stripping length7 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 14
Torque0.5 Nm ... 0.6 Nm
Back to top

Connection data 2

Connection nameTest socket
Max. diameter2 mm
Back to top

General

Maximum transmission error0.1 %
Maximum temperature coefficient0.01 %/K
Step response (0–99%)≤ 22 ms
Status displayGreen LED (supply voltage, PWR)
Red LED, flashing (line, sensor error, ERR)
Yellow LED (switching output)
Degree of pollution2
Overvoltage categoryII
Electromagnetic compatibilityConformance with EMC directive
Interference emissionEN 61000-6-4
Housing materialPA 6.6-FR
DesignationInput/output
Electrical isolation375 V (Peak value in accordance with EN 60079-11)
DesignationInput/output/supply, DIN rail connector
Electrical isolation300 Vrms(Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1))
2.5 kV (50 Hz, 1 min., test voltage)
DesignationInput/supply, DIN rail connector
Electrical isolation375 V (Peak value in accordance with EN 60079-11)
Back to top

Safety data

Input voltage Ui30 V (Current and voltage input)
Input current Ii120 mA (Current and voltage input)
Input power Pi900 mW (Current and voltage input)
Max. internal inductance Linegligible
Max. internal capacitance Ci75 nF (for current input)
Max. output voltage Uo0 V DC (Current input)
Max. output current Io0 mA (Current input)
Max. output power Po0 mW (Current input)
GroupIIC
Max. external inductivity Lo100 mH
Max. external capacitance Co3.3 µF
GroupIIC
Max. external inductivity Lo5 mH
Max. external capacitance Co4.7 µF
GroupIIC
Max. external inductivity Lo1 mH
Max. external capacitance Co6.3 µF
GroupIIB/IIIC
Max. external inductivity Lo100 mH
Max. external capacitance Co16 µF
GroupIIB/IIIC
Max. external inductivity Lo5 mH
Max. external capacitance Co24 µF
GroupIIB/IIIC
Max. external inductivity Lo1 mH
Max. external capacitance Co35 µF
Safety-related maximum voltage Um253 V AC
Back to top

Standards and Regulations

Electromagnetic compatibilityConformance with EMC directive
Noise emissionEN 61000-6-4
GroupIIC
IIC
IIC
IIB/IIIC
IIB/IIIC
IIB/IIIC
Back to top

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027210100
eCl@ss 4.127210100
eCl@ss 5.027210100
eCl@ss 5.127210100
eCl@ss 6.027210100
eCl@ss 7.027210120
eCl@ss 8.027210120
eCl@ss 9.027210120
Back to top

ETIM

ETIM 4.0EC002653
ETIM 5.0EC002653
ETIM 6.0EC002653
ETIM 7.0EC002653
Back to top

ETIM for 2906164 Sensors (EC002653)
Feature Name Feature Value
Type of power supply (EF001469) Other
Rated supply voltage DC (EF007078) 9.6 V
Number of input ranges -60 mV ... +60 mV (EF006927) 0
Number of input ranges -100 mV ... +100 mV (EF006912) 0
Number of input ranges -300 mV ... +300 mV (EF006920) 0
Number of input ranges -500 mV ... +500 mV (EF006926) 0
Number of input ranges -1 V ... +1 V (EF006906) 0
Number of input ranges -2 V ... +2 V (EF006913) 0
Number of input ranges -2.5 V ... +2.5 V (EF006915) 0
Number of input ranges -5 V ... +5 V (EF006923) 0
Number of input ranges -10 V ... +10 V (EF006909) 0
Number of input ranges -20 V ... +20 V (EF006917) 0
Number of input ranges 0 mV ... 60 mV (EF006905) 0
Number of input ranges 0 mV ... 100 mV (EF006893) 0
Number of input ranges 0 mV ... 200 mV (EF006898) 0
Number of input ranges 0 mV ... 300 mV (EF006901) 0
Number of input ranges 0 mV ... 500 mV (EF006904) 0
Number of input ranges 0 V ... 1 V (EF006890) 0
Number of input ranges 0 V ... 2 V (EF006894) 0
Number of input ranges 0 V ... 2.5 V (EF006895) 0
Number of input ranges 0 V ... 5 V (EF006903) 0
Number of input ranges 0 V ... 10 V (EF006892) 1
Number of input ranges 0 V ... 20 V (EF006897) 0
Number of input ranges 0 V ... 24 V (EF006899) 0
Number of input ranges 0 V ... 30 V (EF006900) 0
Number of input ranges 1 V ... 5 V (EF006907) 0
Number of input ranges 2 V ... 10 V (EF006914) 0
Number of input ranges +5 V ... -5 V (EF006889) 0
Number of input ranges +10 V ... -10 V (EF006888) 0
Number of input ranges 5 V ... 0 V (EF006924) 0
Number of input ranges 5 V ... 1 V (EF006925) 0
Number of input ranges 10 V ... 0 V (EF006910) 0
Number of input ranges 10 V ... 2 V (EF006911) 0
Number of input ranges 0 mA ... 5 mA (EF006902) 0
Number of input ranges 0 mA ... 10 mA (EF006891) 0
Number of input ranges 0 mA ... 20 mA (EF006896) 1
Number of input ranges 4 mA ... 20 mA (EF006921) 1
Number of input ranges -5 mA ... +5 mA (EF006922) 0
Number of input ranges -10 mA ... +10 mA (EF006908) 0
Number of input ranges -20 mA ... +20 mA (EF006916) 0
Number of input ranges 20 mA ... 0 mA (EF006918) 0
Number of input ranges 20 mA ... 4 mA (EF006919) 0
Number of output ranges -60 mV ... +60 mV (EF006880) 0
Number of output ranges -100 mV ... +100 mV (EF006865) 0
Number of output ranges -300 mV ... +300 mV (EF006873) 0
Number of output ranges -500 mV ... +500 mV (EF006879) 0
Number of output ranges -1 V ... +1 V (EF006859) 0
Number of output ranges -2 V ... +2 V (EF006866) 0
Number of output ranges -2.5 V ... +2.5 V (EF006868) 0
Number of output ranges -5 V ... +5 V (EF006876) 0
Number of output ranges -10 V ... +10 V (EF006862) 0
Number of output ranges -20 V ... +20 V (EF006870) 0
Number of output ranges 0 mV ... 60 mV (EF006858) 0
Number of output ranges 0 mV ... 100 mV (EF006846) 0
Number of output ranges 0 mV ... 200 mV (EF006851) 0
Number of output ranges 0 mV ... 300 mV (EF006854) 0
Number of output ranges 0 mV ... 500 mV (EF006857) 0
Number of output ranges 0 V ... 1 V (EF006843) 0
Number of output ranges 0 V ... 2 V (EF006847) 0
Number of output ranges 0 V ... 2.5 V (EF006848) 0
Number of output ranges 0 V ... 5 V (EF006856) 0
Number of output ranges 0 V ... 10 V (EF006845) 0
Number of output ranges 0 V ... 20 V (EF006850) 0
Number of output ranges 0 V ... 24 V (EF006852) 0
Number of output ranges 0 V ... 30 V (EF006853) 0
Number of output ranges 1 V ... 5 V (EF006860) 0
Number of output ranges 2 V ... 10 V (EF006867) 0
Number of output ranges +5 V ... -5 V (EF006842) 0
Number of output ranges +10 V ... -10 V (EF006841) 0
Number of output ranges 5 V ... 0 V (EF006877) 0
Number of output ranges 5 V ... 1 V (EF006878) 0
Number of output ranges 10 V ... 0 V (EF006863) 0
Number of output ranges 10 V ... 2 V (EF006864) 0
Number of output ranges 0 mA ... 5 mA (EF006855) 0
Number of output ranges 0 mA ... 10 mA (EF006844) 0
Number of output ranges 0 mA ... 20 mA (EF006849) 0
Number of output ranges 4 mA ... 20 mA (EF006874) 0
Number of output ranges -5 mA ... +5 mA (EF006875) 0
Number of output ranges -10 mA ... +10 mA (EF006861) 0
Number of output ranges -20 mA ... +20 mA (EF006869) 0
Number of output ranges 20 mA ... 0 mA (EF006871) 0
Number of output ranges 20 mA ... 4 mA (EF006872) 0
Malfunction message output (EF007499) No
Inherently safe according to EN 60947-5-6 NAMUR (EF007112) No
Height (EF000040) 112.5 mm
Width (EF000008) 12.5 mm
Depth (EF000049) 113.7 mm
Power consumption (EF000346) 1.2 W
Operating temperature (EF002393) -20 °C
Temperature drift (EF007507) 0.01 %/K
Construction type of device (EF007276) Built-in device
Type of electric connection (EF003961) Screw connection
Mounting method (EF000003) Snap mounting support rail
Degree of protection (IP) (EF005474) IP20
