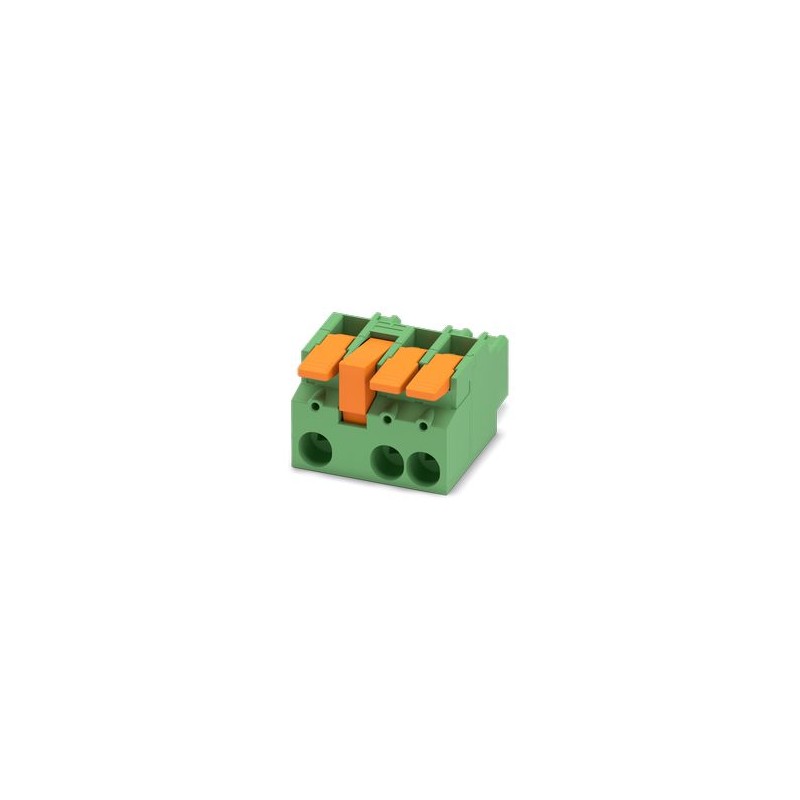

LPC 16 HC/ 3-STL2-10,16 1716825 PHOENIX CONTACT Printed circuit board connector, nominal section: 16 mm2, co.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

LPC 16 HC/ 3-STL2-10,16 1716825 PHOENIX CONTACT Printed circuit board connector, nominal section: 16 mm2, co..

LPC 16 HC/ 3-STL2-10,16

1716825

PHOENIX_CONTACT

25

Printed circuit board connector, nominal section: 16 mm2, color: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, contact surface: Sn, contact connection type: Female, number of rows: 1, number of poles: 3, family of articles: LPC 16 HC/.. -STL, pitch: 10.16 mm, connection type: Push-in lever connection, conductor connection direction/printed circuit board: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON PC 16 advanced, locking: Snap lock, clamping type: Locking trigger, packaging type: boxed

PCB connector, nominal cross-section: 16 mm², colour: green, nominal current: 76 A, nominal voltage (III/2): 1000 V, surface contacts: Tin, contact type: Female, number of rows: 1, number of poles: 3, article family: LPC 16 HC/. -STL, pitch: 10.16 mm, connection type: Lever push-in connection, driver/PCB connection direction: 0°, clamping hook: - without clamping hook, plug-in system: COMBICON PC 16 advanced, locking: Lace lock, fixing type: Lace flange, packing type: boxed packaging

PCB connector, nominal cross-section: 16 mm2, colour: green, rated current: 76 A, dimensioning voltage (III/2): 1000 V, contact surface: tin, contact connection type: Female, number of rows: 1, number of poles: 3, product series: LPC 16 HC/.. -STL, pitch: 10.16 mm, connection type: Push-in connection with lever, conductor/board connection direction: 0 °, locking hook: - without locking hook, plug system: COMBICON PC 16 advanced, locking: Snap locking, fixing type: Locking flange, packaging type: packed in carton

More details


Connectors > Cable connector

PCB Connectors (PCC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total: $321.79
Unit price: $12.87
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Product LineCOMBICON Connectors XL
Product TypePrinted circuit board connector
Product FamilyLPC 16 HC/.. -STL
No. of poles3
Step10.16 mm
Number of rows1
Fixing flangeLocking flange
Rated Current IN76 A
Rated voltage UN1000 V
Degree of pollution3
Mass Resistivity0.235 mΩ
Sizing voltage (III/3)1000 V
Sizing impulse voltage (III/3)8 kV
Sizing voltage (III/2)1000 V
Sizing Impulse Voltage (III/2)8 kV
Sizing voltage (II/2)1000 V
Sizing Impulse Voltage (II/2)6 kV
Connection technology
Connector systemCOMBICON PC 16 advanced
Nominal cross-section16 mm²
Contact Connection Typefemale
Blockage
Clamping TypeSnap lock
Fixing flangeLocking flange
Conductor connection
LinkPush-in connection with lever
Conductor/board connection direction0 °
Rigid conductor cross-section0.75 mm² ... 16 mm²
Flexible conductor cross-section0.75 mm² ... 16 mm²
Conductor cross-section AWG18 ... 4
Flexible conductor cross-section with cable lug without plastic collar0.75 mm² ... 16 mm²
Flexible conductor cross-section with mounted lug and plastic collar0.75 mm² ... 16 mm²
Buffer Gauge a x b / diameter- / 5.4 mm
Length of the section to be stripped18 mm
Material information - contacts
noteComplies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu Alloy
Surface FinishHot-dip galvanizing
Metal Surface, Connection Point (Surface Layer)Tin (10 - 16 μm Sn)
Metal surface contact zone (surface layer)Tin (10 - 16 μm Sn)
Material information - case
Color (Case)Green (6021)
Insulation materialPA
Insulation Material GroupThe
CTI according to IEC 60112600
Combustibility class according to UL 94V0
Material data - drive element
Colour (Drive Element)Orange (2003)
Insulation materialPA GF
Insulation Material GroupThe
CTI according to IEC 60112600
Combustibility class according to UL 94V0
Dimensioned Drawing
Step10.16 mm
Width [w]43.84 mm
Height [h]32.2 mm
Length [l]56.3 mm
Note for OperationAccording to DIN EN 61984, COMBICON connectors are switchable powerless (COC) connectors. For intended use, they must not be plugged in or disconnected when they are still energized or under load.
Conductor connection
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Conductor Integrity and Stability Test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Repeated connection and disconnection
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Tensile test
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/conductor type/tensile force nominal value/actual value0.75 mm² / rigid / > 30 N
0.75 mm² / flexible / > 30 N
16 mm² / rigid / > 100 N
16 mm² / flexible / > 100 N
Insertion/tensile force
ResultTest passed
Number of cycles25
Insertion force per pole approx.8 N
Tensile force per pole approx.6 N
Resistance of lettering
Test SpecificationDIN EN 60068-2-70:1996-07
ResultTest passed
Polarization and encoding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultTest passed
Visual inspection
Test SpecificationDIN EN 60512-1-1:2003-01
ResultTest passed
Dimensional control
Test SpecificationDIN EN 60512-1-2:2003-01
ResultTest passed
Vibration test
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.15 mm (10 Hz ... 60.1 Hz)
Sweep Speed20 m/s² (60.1 Hz ... 150 Hz)
Test duration per axle2.5 h
Electrical life control
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Vertical impulse tension above sea level9.8 kV
Mass Resistivity R10.235 mΩ
Mass Resistivity R20.212 mΩ
Manoeuvring cycles25
Insulation Resistance Between Contiguous Poles> 5 MΩ
Climate control
Test SpecificationDIN EN ISO 6988:1997-03
Stress due to corrosion0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle
Stress due to the effect of heat105 °C/168 h
Fixed AC voltage4.26 kV
Environmental conditions
Ambient temperature (operating)-40 °C ... 105 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (transport and storage)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Thermal Test Control Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested6
Insulation Resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Between Contiguous Poles> 5 MΩ
Temperature Cycling
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultTest passed
Air and Surface Clearance Distances 1. Insulation coordination
Test SpecificationDIN EN 61984 (VDE 0627):2009-11
Insulation Material GroupThe
Resistance to surface currents (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)1000 V
Rated impulse voltage (III/3)8 kV
Minimum clearance value - inhomogeneous range (III/3)8 mm
Minimum creepage value (III/3)12.5 mm
Rated Isolation Voltage (III/2)1000 V
Rated impulse voltage (III/2)8 kV
Minimum creepage value - inhomogeneous range (III/2)8 mm
Minimum creepage value (III/2)8 mm
Rated Isolation Voltage (II/2)1000 V
Rated Impulse Voltage (II/2)6 kV
Minimum creepage value - inhomogeneous range (II/2)5.5 mm
Minimum creepage value (II/2)5.5 mm
Air and Surface Clearance Distances 2. Insulation coordination
Test SpecificationIEC 60664-1:2020-05
Insulation Material GroupThe
Resistance to surface currents (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)1000 V AC/DC
Rated impulse voltage (III/3)8 kV
Minimum clearance value - inhomogeneous range (III/3)8 mm
Minimum creepage value (III/3)12.5 mm
Rated Isolation Voltage (III/2)1500 V DC
Rated impulse voltage (III/2)10 kV
Minimum creepage value - inhomogeneous range (III/2)11 mm
Minimum creepage value (III/2)11 mm
Rated Isolation Voltage (II/2)1500 V DC
Rated Impulse Voltage (II/2)8 kV
Minimum creepage value - inhomogeneous range (II/2)8 mm
Minimum creepage value (II/2)8 mm
PackagingPacked in carton

ETIM for 1716825 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 10.16 mm
Modular spacing connections (EF006827) 10.16 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Rated surge voltage (EF002993) 6 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.75 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.75 mm²
Connectable conductor cross section solid-core (EF007337) 0.75 mm²
Type of electric connection (EF003961) Spring clamp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Datasheet - PDF

▲
