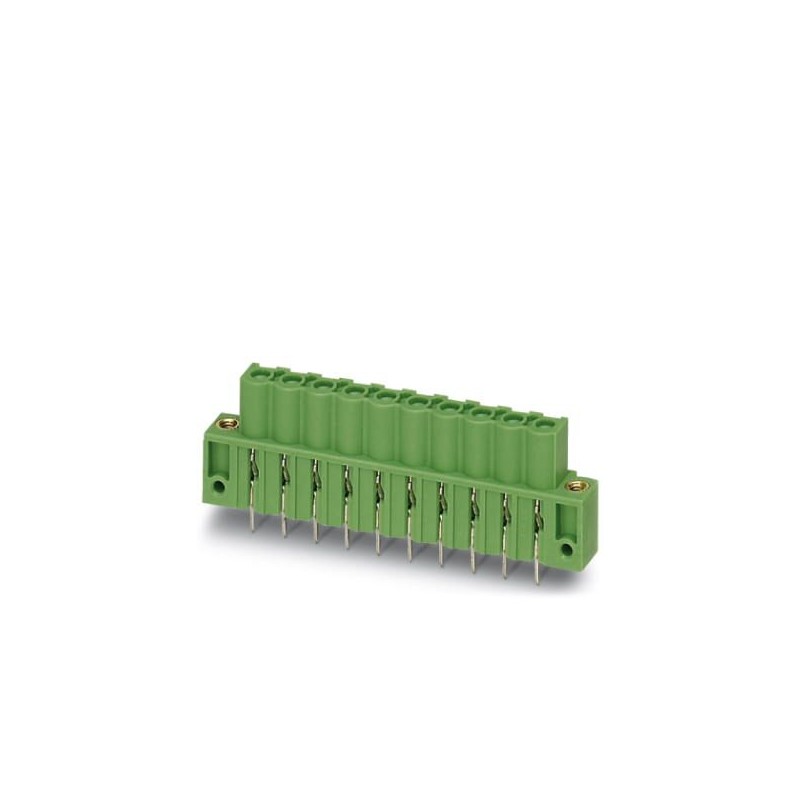

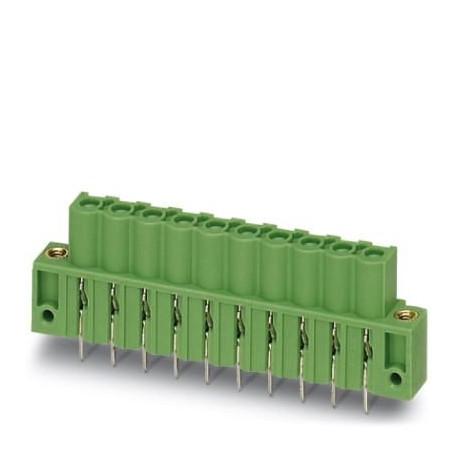

ICV 2,5/16-GF-5,08 BK 1778489 PHOENIX CONTACT Housing base printed circuit board, nominal current: 12 A, num..
ICV 2,5/16-GF-5,08 BK
1778489
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Housing base printed circuit board, nominal current: 12 A, number of poles: 16, pitch: 5,08 mm, color: black, surface of contact: Tin, assembly: wave Soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of potentials: 16, number of rows: 1, number of poles: 16, number of connections: 16, family of articles: ICV 2.5/.. -GF, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.6 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Basic printed circuit board assembly, nominal current: 12 A, test voltage (III/2): 320 V, number of poles: 16, pitch: 5,08 mm, color: black, contact surface: Tin, assembly: Soldering wave
Business
| The code of the application | One million seven hundred seventy eight thousand four hundred eighty nine |
|---|---|
| The amount of the package (C#) | 50 Pcs |
| Note | The production is linked to the application (no removal) |
| GTIN | Four trillion forty six billion three hundred fifty six million five hundred twenty six thousand three hundred twenty six |
| Weight per piece (excluding packing) | 11,580 GRM |
| The number of corporate and commercial | Eighty five million three hundred sixty six thousand nine hundred thirty |
| The country-of-origin | IN Germany |
Measures
| Dimensions [ l ] | 10.2 mm |
|---|---|
| The width | 91.4 mm |
| The measure of the step | Two inches (5.08 mm) |
| The extent of the | 76.2 mm |
| A width of [ w], | 91.4 mm |
| Time [ h ] | The 22.6-mm |
| Time | (19 mm) |
| The length of the pin to solder to | 3.6 mm |
| Measurements of the pin | 0.5 x 1,14 mm |
| Long | 10.2 mm |
The general
| The family | ICV 2,5/..-GF - |
|---|---|
| The voltage-scaling (III/3) | 320 V, |
| The connection according to the standard | EN-VDE |
| Rated RN | Twelve |
| Color | black |
| The number of poles in the | Sixteen |
The rules and the provisions of
| The connection according to the standard | EN-VDE |
|---|---|
| The CSA |
Environmental And Product Compliance
| REACh-SVHC | |
|---|---|
| Lead 7439-92-1 | |
| As China RoHS | The period for the approved purpose (EFUP) is 50 years old |
| For more information on hazardous materials, see manufacturer's declaration in the Download |
Ratings
eCl@ss
| the eCl@ss 4.0 | Twenty seven million one hundred forty one thousand one hundred nine |
|---|---|
| the eCl@ss 4.1 | Twenty seven million one hundred forty one thousand one hundred nine |
| the eCl@ss 5.0 | Twenty seven million one hundred forty one thousand one hundred ninety |
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| the eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
ETIM
| ETIM 3.0 | EC001121 |
|---|---|
| ETIM 4.0 | EC002643 |
| ETIM 5.0 | EC002637 |
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
UNSPSC
| UNSPSC 6.01 | Thirty million two hundred eleven thousand eight hundred one |
|---|---|
| UNSPSC 7.0901 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 11 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 12.01 | Thirty nine million one hundred twenty one thousand four hundred thirty two |
| UNSPSC 13.2 | Thirty nine million one hundred twenty one thousand four hundred nine |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 16 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.6 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
