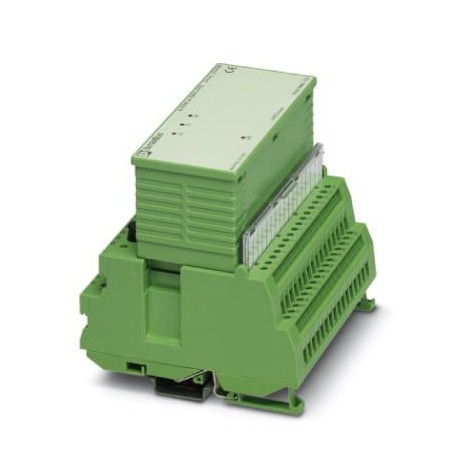

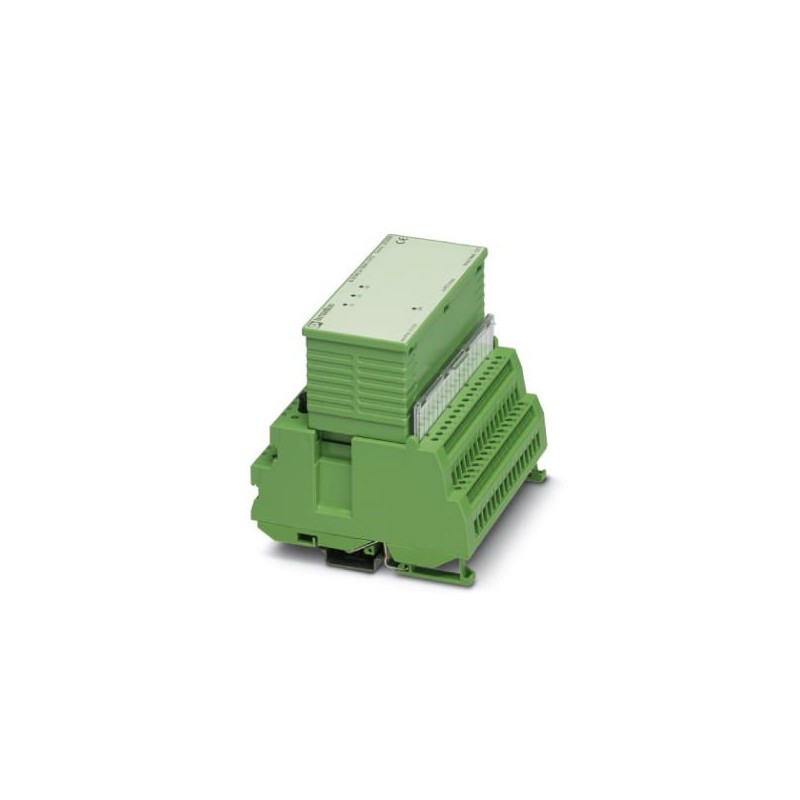

IB ST ZF 24 TEMP 4 RTD 2701959 PHOENIX CONTACT I/O module
IB ST ZF 24 TEMP 4 RTD
2701959
PHOENIX_CONTACT
I/O module
I/O
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2701959 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356895880 |
| Weight per Piece (excluding packing) | 562.800 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Air pressure (operation) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 80 kPa ... 106 kPa (up to 2000 m above sea level) |
| Degree of protection | IP20 |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 562.8 g |
| Operating mode | Process data mode with 4 words |
| Diagnostics messages | Failure of the internal I/O supply I/O error message sent to the bus coupler |
| F1 fuse failure I/O error message sent to the bus coupler | |
| I/O supply failure I/O error message sent to the bus coupler |
Interfaces
| Designation | ST local bus |
|---|---|
| No. of channels | 2 |
| Connection method | ST local bus connector |
| Transmission speed | 500 kbps |
| Transmission physics | Copper |
Power supply for module electronics
| Connection method | ST local bus connector |
|---|---|
| Designation | Communications power |
| Supply voltage | 9 V DC (from the ST local bus) |
| Current consumption | typ. 54 mA |
| max. 80 mA | |
| Power consumption | typ. 0.5 W |
Analog inputs
| Number of inputs | 4 (for resistance temperature detectors) |
|---|---|
| Input name | Analog RTD inputs |
| Description of the input | Inputs for resistive temperature sensors |
| Connection technology | 2, 3, 4-wire (shielded) |
| Sensor types (RTD) that can be used | Pt 100, Pt 1000, Ni 100, Ni 1000 |
| Measuring principle | Sigma/Delta process |
| Measured value representation | 16 bit two's complement |
| Resolution A/D | 24 bit |
Electrical isolation
| Test section | Bus/Inputs 500 V AC 50 Hz 1 min. |
|---|---|
| Supply voltage/inputs 500 V AC 50 Hz 1 min. | |
| Supply voltage/Ground conductor 500 V AC 50 Hz 1 min. | |
| I/O voltage/Ground conductor 500 V AC 50 Hz 1 min. |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| No hazardous substances above threshold values |
Classifications
