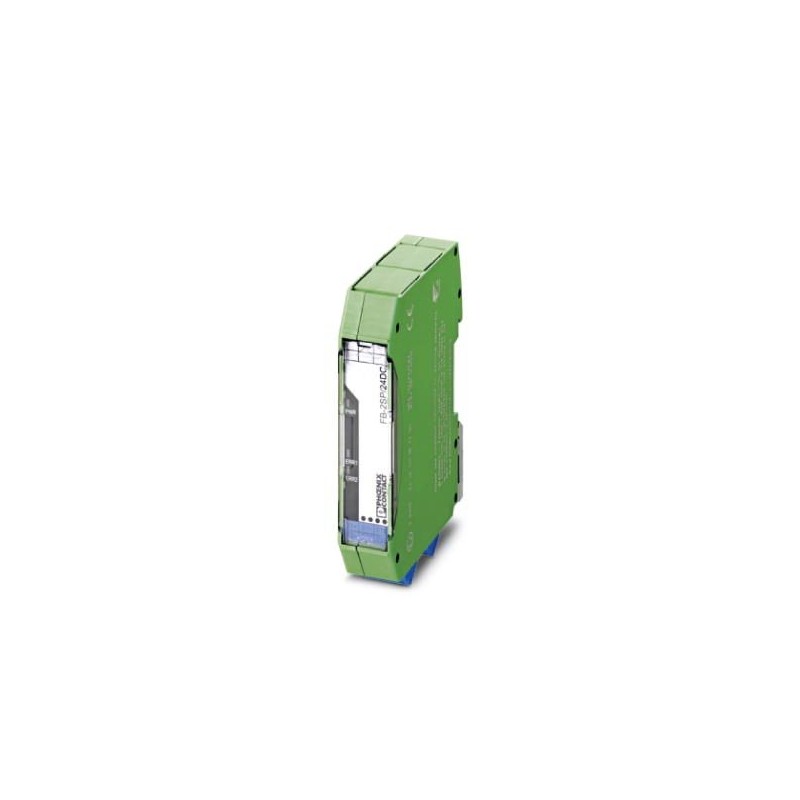

FB-2SP/24DC 2316352 PHOENIX CONTACT Device coupler
FB-2SP/24DC
2316352
PHOENIX_CONTACT
Device coupler
Foundation Fieldbus separator to be able to install intrinsically safely in Zone 2.
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2316352 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 513 (C-6-2017) |
| GTIN | 4055626088716 |
| Weight per Piece (excluding packing) | 111.500 g |
| Custom tariff number | 85389099 |
| Country of origin | US (United States) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Degree of protection | IP20 |
General
| Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
|---|---|
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Net weight | 111.5 g |
| Color | green |
| Fieldbus Foundation | FF-846 |
Power supply
| Supply voltage range | 9 V DC ... 30 V DC |
|---|---|
| Conductor cross section flexible max. | 0.20 mm² |
| Conductor cross section flexible min. | 2.50 mm² |
| Conductor cross section solid max. | 0.20 mm² |
| Conductor cross section solid min. | 2.50 mm² |
| Max. AWG conductor cross section, flexible | 12 |
| Min. AWG conductor cross section, flexible | 24 |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Serial interface
| Interface 1 | Foundation Fieldbus and PROFIBUS PA Segment |
|---|---|
| No. of ports | 2 |
| Connection method | Pluggable COMBICON screw connection for each spur |
| Termination resistor | via FB-ET/E |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Torque | 0.5 Nm ... 0.6 Nm |
| Output nominal voltage | ≤ 32 V (each spur) |
| Maximum output current | 35 mA (per channel) |
| 50 mA (per module) | |
| Inductance Li | 4 µH (spurs) |
| Max. output voltage Uo | 23.56 V DC (spurs) |
Safety data
| Max. output voltage Uo | 23.56 V DC (spurs) |
|---|---|
| Max. output current Io | 40.9 mA (spurs) |
| Max. output power Po | 0.964 W (spurs) |
| Max. external capacity Co | 60 nF |
| Additional text | spurs |
| Max. external inductivity Lo | 250 µH |
| Additional text | spurs |
| ATEX | Sira 13ATEX4016; II 3(3)G Ex nA [ic] IIC T4 Gc |
| IECEx | IECEx SIR 13.0001X; Ex nA [ic] IIC T4 Gc |
| CSA, USA/Canada | Class I, Div. 2, Groups A, B, C, D; Ex nA[ic] IIC T4 Gc Class I, Zone 2; AEx nA[ic] IIC T4 Gc |
Standards and Regulations
| Type of test | Corrosive resistance in acc. to ANSI-ISA 71.04-1985 - Severity level G3 |
|---|---|
| Designation | Standards/regulations |
| Standards/regulations | Ring wave noise immunidty in acc. with IEC 61000-4-12 |
| Designation | Standards/regulations |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Designation | Standards/regulations |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| IEC 61158-2 | |
| Shock | 15g, 11 ms |
| Vibration (operation) | 1g, 10 Hz ... 150 Hz |
| Fieldbus Foundation | FF-846 |
| ATEX | Sira 13ATEX4016; II 3(3)G Ex nA [ic] IIC T4 Gc |
| IECEx | IECEx SIR 13.0001X; Ex nA [ic] IIC T4 Gc |
| CSA, USA/Canada | Class I, Div. 2, Groups A, B, C, D; Ex nA[ic] IIC T4 Gc Class I, Zone 2; AEx nA[ic] IIC T4 Gc |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
