EV-T2G3PC-3AC32A-4,0M6,0ESBK01 1623509 PHOENIX CONTACT AC charging cable
EV-T2G3PC-3AC32A-4,0M6,0ESBK01
1623509
PHOENIX_CONTACT
AC charging cable

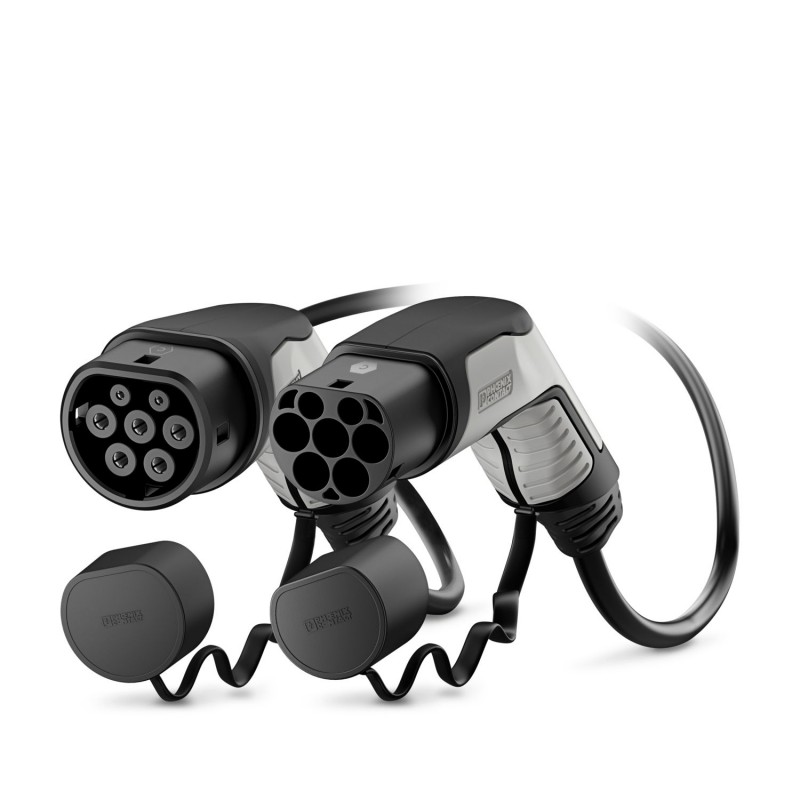

CHARX connect, Mobile AC charging cable, with charging connectors for vehicles and infrastructures, For charging with alternating current (AC) electric vehicles (EV) with charging inputs for type 2 vehicles, With cap, Type 2, IEC62196-2, 32 A / 480 V (AC), C-Line, housing: black, gray, PHOENIX CONTACT logo, cable: 4 m, black, straight
CHARX connect comfort, Mobile AC charging cable, with vehicle charging connector and infrastructure charging plug, for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets, with protective cap, Type 2, IEC 62196-2, 32 A / 480 V (AC), housing: black, gray, PHOENIX CONTACT logo, cable: 4 m, black, straight
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | AC charging cable |
| Product family | CHARX connect comfort |
| Application | for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets |
| compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE) | |
| Type | Mobile AC charging cable |
| with vehicle charging connector and infrastructure charging plug | |
| Design | with protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Data management status | |
| Article revision | 12 |
| Charging mode | Mode 3, Case B |
| Charging standard | Type 2 |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 220 Ω (between PE and PP) |
| Type of charging current | AC 3-phase |
| Charging power | 26.6 kW |
| Charging current | 32 A |
| Power contact | |
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Infrastructure charging plug | |
| Dimensional drawing |  Infrastructure plug |
| Width | 58 mm |
| Height | 131.8 mm |
| Depth | 233.4 mm |
| Vehicle charging connector | |
| Dimensional drawing |  Vehicle connector |
| Width | 70 mm |
| Height | 137 mm |
| Depth | 215.9 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | gray (7042) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Infrastructure charging plug) | Plastic |
| Material (Contact surface) | Silver |
| Cable length | 4 m |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Wiring certifications | VDE |
| Cable weight | max. 505.00 kg/km |
| Cable type | Class 5 |
| Cable type | straight |
| Cable structure | 5 x 4.0 mm² + 1 x 0.5 mm² |
| External cable diameter | 14.20 mm ±0.3 mm |
| Outer sheath, material | TPE-U |
| Cable resistance | ≤ 0.00425 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 127.5 mm (7.5x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Infrastructure charging plug) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Protective cap) | IP54 |
| Ambient temperature (operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC 3-phase |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Type 2 |
| Type infrastructure side (EF009319) | Type 2 |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 3 |
| Nominal current (EF000001) | 32 A |
| Nominal voltage (EF000002) | 480 V |
| With temperature sensor (EF006034) | No |
| Cable length (EF000536) | 4 m |
| Cable type (EF000081) | Straight |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
