EV-T2G3C-3AC32A-20FT6,0ESBK11U 1085857 PHOENIX CONTACT AC charging cable, AC charging cable with vehicle con..
EV-T2G3C-3AC32A-20FT6,0ESBK11U
1085857
PHOENIX_CONTACT
50

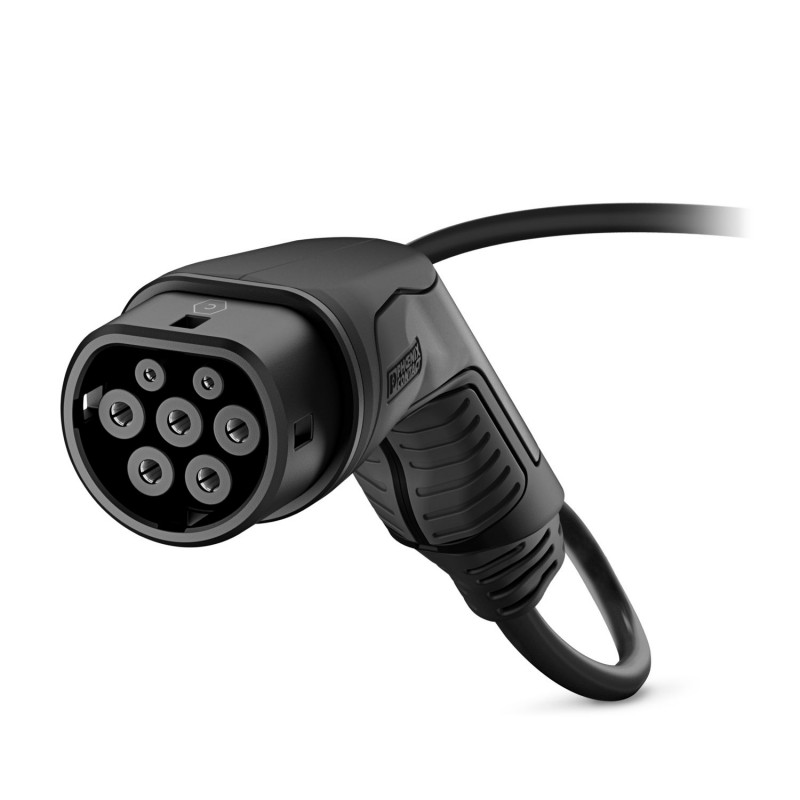

AC charging cable, AC charging cable with vehicle connector, open cable end, without protective cap, C-Line black / black, Type 2, IEC 62196-2, 32 A / 480 V (AC), design line C-Line, cable: 20 ft, black, straight, mating face: black, handle area: black
CHARX connect, AC charging cable, with vehicle charging connector and open cable end, For alternating current (AC) charging electric vehicles (EV) with type 2 vehicle charging inputs, Capless, Type 2, IEC62196-2, 32 A / 480 V (AC), C-Line, cable: 20 ft, black, straight
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1085857 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4055626876016 |
| Weight per Piece (excluding packing) | 3,640.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Drawings
Product definition
| Product type | AC charging cable with vehicle connector, open cable end, without protective cap |
|---|---|
| Type | C-Line black / black |
| Standards/regulations | IEC 62196-2 |
| Charging standard | Type 2 |
| Charging mode | Mode 3, Case C |
Dimensions
| Vehicle connector width | 70.00 mm |
|---|---|
| Vehicle connector height | 137.00 mm |
| Vehicle connector depth | 215.90 mm |
| Conductor length | 20 ft |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP54 (Protective cap) |
Electrical properties
| Maximum charging power | 26.6 kW |
|---|---|
| Number of phases | 3 |
| Number of power contacts | 5 (L1, L2, L3, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 480 V AC |
| Number of signal contacts | 2 (CP, PP) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 220 Ω (between PE and PP) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | C-Line |
|---|---|
| Housing color | black |
| Mating face color | black |
| Color handle area | black |
| Color protective cap | black |
| Customer variations | On request |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Material protective cap | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 5 x 6.0 mm² + 1 x 0.5 mm² |
|---|---|
| Wiring standards/regulations | prEN 50620 / DIN EN 50620 |
| Wiring class | Class 5 |
| Wiring certifications | VDE |
| External cable diameter | 17 mm ±0.4 mm |
| Type of conductor | straight |
| Cable resistance | ≤ 0.0033 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Outer sheath, material | TPE-U |
| External sheath, color | black |
| Minimum bending radius | 255 mm (15 x diameter) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 10; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Type of current (EF000143) | AC 3-phase |
| Number of communication conductors (EF009317) | 2 |
| Type vehicle side (EF009318) | Type 2 |
| Type infrastructure side (EF009319) | Free conductor end |
| With Incable Control Box (ICCB) (EF009320) | No |
| Charging mode (EF009321) | Mode 3 |
| Nominal current (EF000001) | 32 A |
| Nominal voltage (EF000002) | 480 V |
| With temperature sensor (EF006034) | No |
| Cable length (EF000536) | 6.096 m |
| Cable type (EF000081) | Straight |
| Contact material (EF004019) | Other |
| Surface treatment contacts (EF002558) | Other |
