EV-T1G2C-1AC40A-25FT12ASBK11U 1102140 PHOENIX CONTACT AC charging cable, AC charging cable with vehicle conn..
EV-T1G2C-1AC40A-25FT12ASBK11U
1102140
PHOENIX_CONTACT

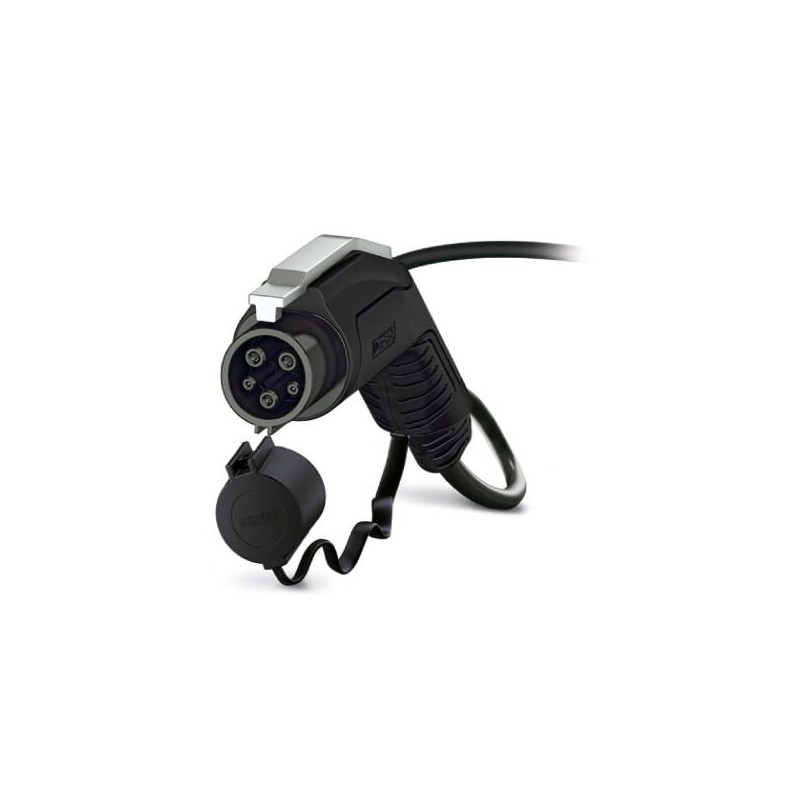

AC charging cable, AC charging cable with vehicle connector, open cable end, without protective cap, C-Line black / black, Type 1, SAE J1772, IEC 62196-2, 40 A / 250 V (AC), design line C-Line, cable: 25 ft, black, straight, NOTE: Cable management may be required., mating face: black, handle area: black
CHARX connect, AC charging cable with vehicle charging connector and open cable end, Without cap, Black-black housing color, for alternating current (AC) charging electric vehicles (EV) with type 1 vehicle inputs, for installation on charging stations for electromobility (EVSE), Type 1, SAE J1772, IEC 62196-2, 40 A / 250 V (AC), C-Line, "PHOENIX CONTACT" logo, cable: 25 ft., black, straight, IMPORTANT: Cables may need to be organized.
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1102140 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626962108 |
| Weight per Piece (excluding packing) | 3,340.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Drawings
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
Product definition
| Product type | AC charging cable with vehicle connector, open cable end, without protective cap |
|---|---|
| Type | C-Line black / black |
| Standards/regulations | SAE J1772 |
| IEC 62196-2 | |
| Charging standard | Type 1 |
| Charging mode | Level 2 |
| Note | NOTE: Cable management may be required. |
| Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1). |
Dimensions
| Vehicle connector width | 58.00 mm |
|---|---|
| Vehicle connector height | 151.10 mm |
| Vehicle connector depth | 236.10 mm |
| Conductor length | 25 ft |
| Stripping length | 60 mm ±15 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | 3R (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
Electrical properties
| Maximum charging power | 10 kW |
|---|---|
| Number of phases | 1 |
| Number of power contacts | 3 (L1, N, PE) |
| Rated current of power contacts | 40 A |
| Rated voltage for power contacts | 250 V AC |
| Number of signal contacts | 2 (CP, CS) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 480 Ω (Lever actuated) |
| 150 Ω (Lever not actuated) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 75 N |
| Withdrawal force | < 75 N |
Design
| Design line | C-Line |
|---|---|
| Housing color | black |
| Mating face color | black |
| Color handle area | black |
| Actuating element color | silver |
| Color protective cap | black |
| Customer variations | On request |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Actuating lever material | Metal |
| Material protective cap | Soft plastic |
| Material mating face | Plastic |
| Flammability rating | V0 |
| Material surface of contacts | Ag |
Cable
| Cable structure | 4 x 12 AWG 1 x 10 AWG + 5 x 22 AWG |
|---|---|
| Wiring standards/regulations | UL 62 |
| External cable diameter | 14.5 mm |
| Type of conductor | straight |
| Outer sheath, material | TPE |
| External sheath, color | black |
| Minimum bending radius | 72.5 mm |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 10; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 6 Mbytes |
|
