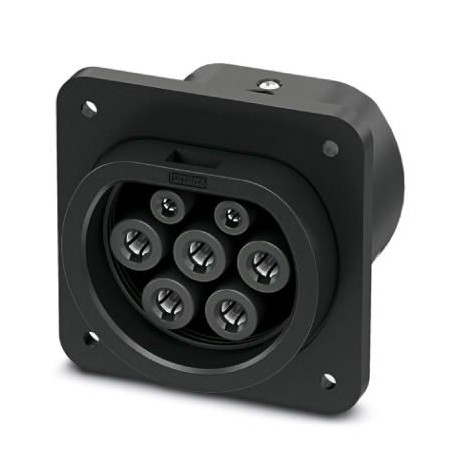

EV-GBM3S-3AC32A-0,7M6,0E00
1408170
PHOENIX_CONTACT
1
Socket Outlet
Industrial socket/plug applications > Charging connector E-Mobility
E-Mobility
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1408170 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 756 (C-2-2017) |
GTIN | 4046356856041 |
Weight per Piece (excluding packing) | 699.000 g |
Custom tariff number | 85444290 |
Country of origin | CN (China) |
Product type | Infrastructure Socket Outlet for charging electric vehicles with alternating current (AC), compatible with Infrastructure Plugs |
---|---|
Type | Rear protective cover screw connection |
Standards/regulations | GB/T 20234.2-2015 |
Charging standard | GB/T |
Charging mode | Mode 3, Case B |
Note | NOTE This product version does not include a locking actuator. |
Make sure that the Infrastructure Plug is locked into the Infrastructure Socket Outlet during the charging process according to IEC 61851-1. We recommend using our locking actuators (1624129, 1622317). If another type of locking is selected, we recommend sealing the mounting surface (1621465), see also accessories. | |
Note on the connection method | Crimp connection, cannot be disconnected |
Height | 79.5 mm |
---|---|
Width | 75 mm |
Depth | 70.8 mm |
Bore dimensions | 60 mm x 60 mm |
Conductor length | 0.7 m (AC cables) |
Cable structure | 5x 6.0 mm² + 2x 0.5 mm² |
Type of conductor | Single wires |
Ambient temperature (operation) | -30 °C ... 50 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Max. altitude | 5000 m (above sea level) |
Degree of protection | IP55 (plugged in) |
IP55 (with protective cover, see accessories) |
Maximum charging power | 14 kW |
---|---|
Type of charging current | AC 3-phase |
Number of phases | 3 |
Number of power contacts | 5 (L1, L2, L3, N, PE) |
Rated current of power contacts | 32 A |
Rated voltage for power contacts | 440 V AC |
Number of signal contacts | 2 (CP, CC) |
Rated current for signal contacts | 2 A |
Rated voltage for signal contacts | 30 V AC |
Type of signal transmission | Pulse width modulation |
Note on the connection method | Crimp connection, cannot be disconnected |
Insertion/withdrawal cycles | > 10000 |
---|---|
Insertion force | < 100 N |
Withdrawal force | < 100 N |
Possible mounting positions | Front and rear mounting |
---|---|
Restrictions to mounting position | Only 0 to 90 degree frontal inclination possible, see figure |
Mounting position of the locking actuator | Not pre-assembled, top center mounting possible |
Required installation depth | < 5 mm (Rear panel mounting) |
< 10 mm (Front mounting) | |
Max. wall thickness | < 51.8 mm (Front mounting) |
> 57 mm (Rear panel mounting) | |
Mounting hole diameter | 7.00 mm (ø) |
China RoHS | Environmentally Friendly Use Period = 10; |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CHARGING TECHNOLOGY ELECTROMOBILITY EN.pdf | 5 Mbytes |
