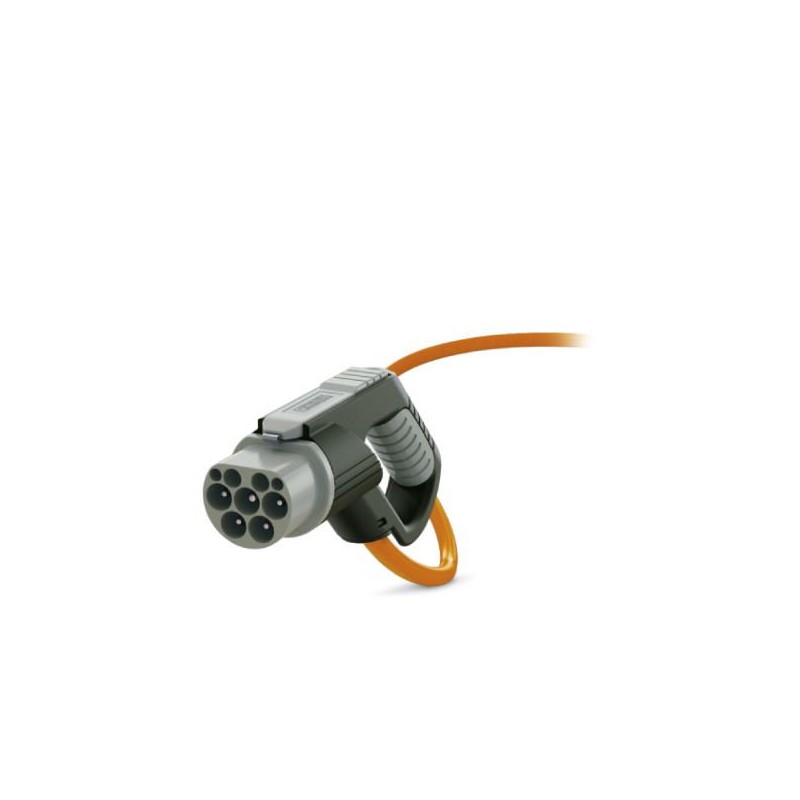

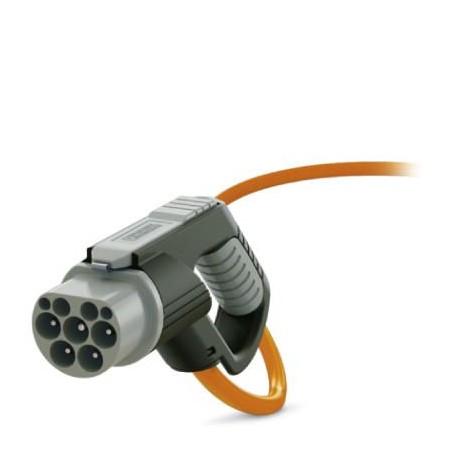

EV-GBM3C-1AC32A-7,0M6,0ESOGDH 1021771 PHOENIX CONTACT AC charging cable
EV-GBM3C-1AC32A-7,0M6,0ESOGDH
1021771
PHOENIX_CONTACT
AC charging cable
CHARX connect, AC charging cable with vehicle charging connector and open cable end, Without cap, Black-gray housing color, For alternating current (AC) charging electric vehicles (EV) with GB/T vehicle inputs, for installation on charging stations for electromobility (EVSE), GB/T, GB/T 20234.2, 32 A / 250 V (AC), D-Line, "PHOENIX CONTACT" logo, Ferrules, cable: 7 m, orange, straight, IMPORTANT: it may be necessary to organize the cables.
Industrial socket/plug applications > Charging cable E-Mobility
E-Mobility
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1021771 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626514802 |
| Weight per Piece (excluding packing) | 2,800.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
Product definition
| Product type | AC charging cable with vehicle connector, open cable end, without protective cap |
|---|---|
| Type | D-Line |
| Standards/regulations | GB/T 20234.2 |
| Charging standard | GB/T |
| Charging mode | Mode 3, Case C |
| Note | NOTE: Cable management may be required. |
| Cable management is required in certain regions if the cable length exceeds 5.0 m (Switzerland) or 7.5 m (USA) (IEC 61851-1). | |
| Special version with individual ferrules |
Dimensions
| Vehicle connector width | 60.00 mm |
|---|---|
| Vehicle connector height | 112.40 mm |
| Vehicle connector depth | 219.10 mm |
| Conductor length | 7 m |
| Stripping length | 45 mm ±10 mm |
Ambient conditions
| Ambient temperature (operation) | -30 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Max. altitude | 5000 m (above sea level) |
| Degree of protection | IP55 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| IP54 (Protective cap) |
Electrical properties
| Maximum charging power | 8 kW |
|---|---|
| Number of phases | 1 |
| Number of power contacts | 3 (L, N, PE) |
| Rated current of power contacts | 32 A |
| Rated voltage for power contacts | 250 V |
| Number of signal contacts | 2 (CP, CC) |
| Rated current for signal contacts | 2 A |
| Rated voltage for signal contacts | 30 V AC |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Resistor coding | 220 Ω (between PE and CC) |
Mechanical properties
| Insertion/withdrawal cycles | > 10000 |
|---|---|
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
Design
| Design line | D-Line |
|---|---|
| Housing color | black |
| Mating face color | gray |
| Color handle area | gray |
| Actuating element color | gray |
| Color protective cap | black |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
Material
| Housing material | Plastic |
|---|---|
| Material handle area | Soft plastic |
| Actuating lever material | Plastic |
| Material protective cap | Plastic |
| Material mating face | Plastic |
| Material surface of contacts | Ag |
Cable
| Cable structure | 3 x 6 mm² + 1 x 0.5 mm² (GB/T 25087-2010, ISO 14572) |
|---|---|
| Wiring class | Class 6 |
| External cable diameter | 13.9 mm ±0.5 mm |
| Type of conductor | straight |
| Outer sheath, material | TPE |
| External sheath, color | orange |
| Minimum bending radius | 208.5 mm (15 x diameter) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
