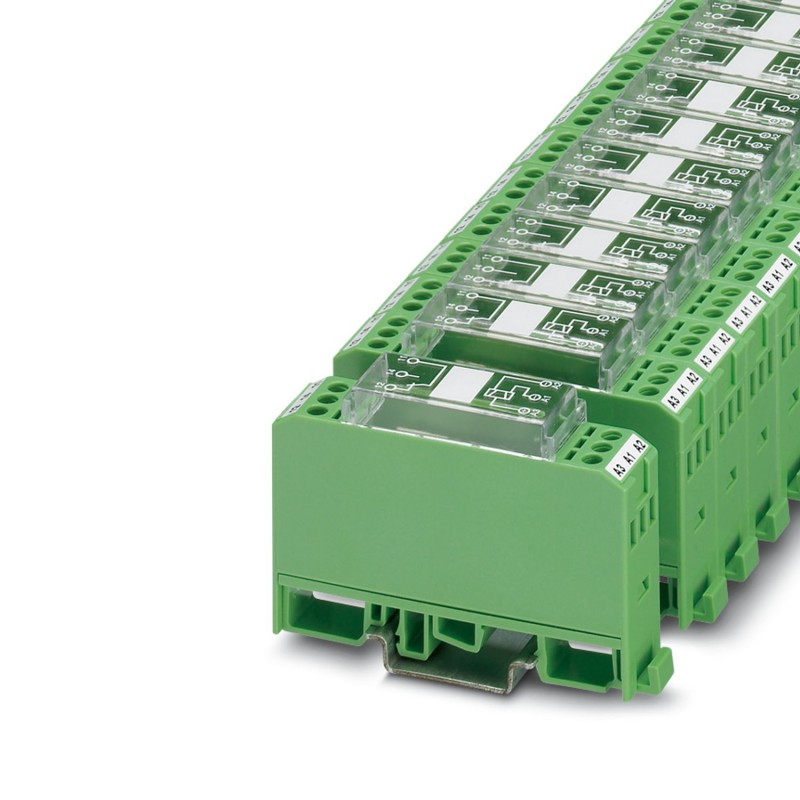

EMG 17-REL/SG-B 48/21/P
2946654
PHOENIX_CONTACT
10
Relay Module
Industrial Relays
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2946654 |
---|---|
Packing unit | 10 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 145 (IF-2009) |
GTIN | 4017918118037 |
Weight per Piece (excluding packing) | 48.940 g |
Custom tariff number | 85364190 |
Country of origin | DE (Germany) |
Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
---|
Ambient temperature (operation) | -40 °C ... 50 °C |
---|---|
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Nominal input voltage UN | 48 V DC |
---|---|
Input voltage range in reference to UN | 0.8 ... 1.1 |
Typical input current at UN | typ. 8.5 mA |
Typical response time | 5 ms |
Typical release time | 5 ms |
Coil voltage | 24 V DC |
Protective circuit | Free-wheeling diode Damping diode |
Reverse polarity protection Polarity protection diode | |
Pulse time range | 30 ms ... 5 s |
Power dissipation for nominal condition | 0.41 W |
Contact type | Single contact, 1-PDT |
---|---|
Type of switch contact | Single contact |
Contact material | AgSnO |
Maximum switching voltage | 250 V AC/DC |
Minimum switching voltage | 5 V (at 100 mA) |
24 V (At 1 mA) | |
Min. switching current | 1 mA (at 24 V) |
100 mA (At 5 V) | |
Maximum inrush current | 8 A |
Limiting continuous current | 6 A |
Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
43 W (at 48 V DC) | |
42 W (at 60 V DC) | |
55 W (at 110 V DC) | |
100 W (at 220 V DC) | |
1500 VA (for 250 V AC) |
Maximum switching voltage | 250 V AC/DC |
---|---|
Limiting continuous current | 6 A |
Maximum inrush current | 8 A |
Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
40 W (at 48 V DC) | |
35 W (at 60 V DC) | |
30 W (at 110 V DC) | |
55 W (at 220 V DC) | |
1500 VA (for 250 V AC) |
Test voltage relay winding/relay contact | 4 kVrms(50 Hz, 1 min.) |
---|---|
Operating mode | 100% operating factor |
Mechanical service life | approx. 107cycles |
Mounting position | any |
Assembly instructions | In rows with zero spacing |
Net weight (SAP) | 48.94 g |
Connection name | Coil side |
---|---|
Connection method | Screw connection |
Stripping length | 8 mm |
Screw thread | M3 |
Conductor cross section solid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 |
Connection name | Contact side |
---|---|
Connection method | Screw connection |
Stripping length | 8 mm |
Screw thread | M3 |
Conductor cross section solid | 0.2 mm² ... 4 mm² |
Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
Conductor cross section AWG | 24 ... 12 |
Degree of pollution | 2 |
---|---|
Overvoltage category | III |
Designation | Air clearances and creepage distances between the power circuits |
Standards/regulations | DIN EN 50178 |
Insulation | Safe isolation, reinforced insulation |
REACh SVHC | Lead 7439-92-1 |
---|---|
China RoHS | Environmentally Friendly Use Period = 50 |
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
