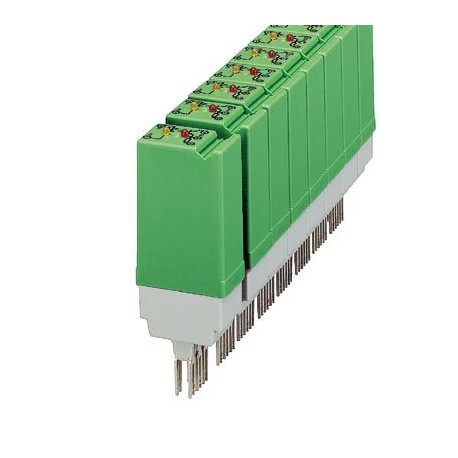

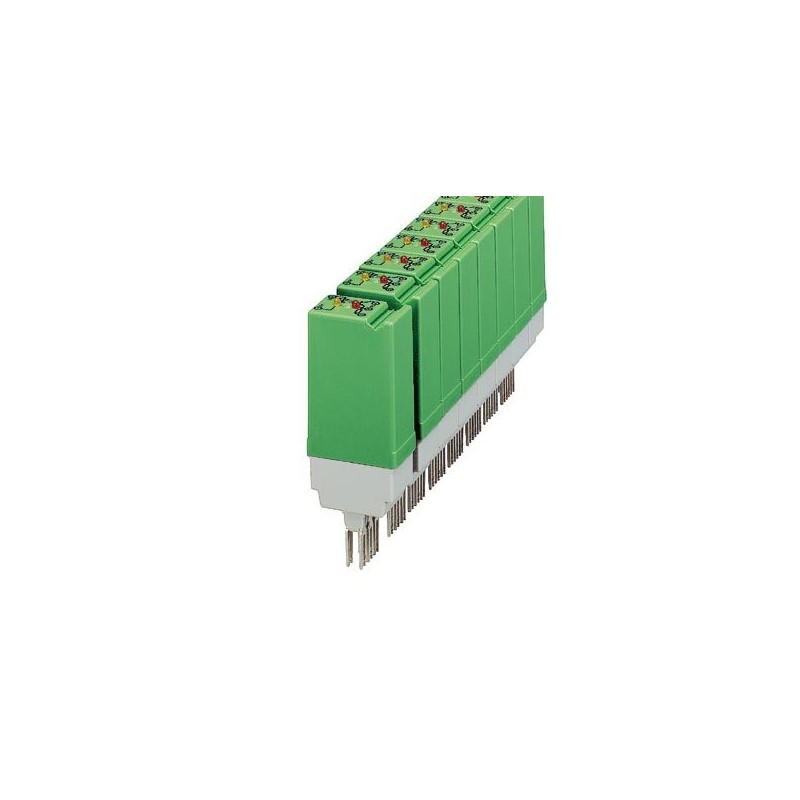

ST-OV3- 24DC/ 24DC/2 2905190 PHOENIX CONTACT Solid-state relays
ST-OV3-24DC/ 24DC/2
2905190
PHOENIX_CONTACT
Solid-state relays
Pluggable solid-state power relay, with indicator light and protection circuit in input and output circuit, input: 24 V DC, output: short circuit resistance, 10-30 V DC/max. 2 A, pluggable to base terminal blocks
Relays > Optocoupler
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2905190 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 91 (IF-2005) |
| GTIN | 4017918079338 |
| Weight per Piece (excluding packing) | 30.230 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Switching threshold "0" signal, voltage | ≤ 6.9 V |
| Switching threshold "1" signal voltage | ≥ 8.5 V |
| Typical input current at UN | 5 mA |
| Typical response time | 17 µs |
| Typical turn-off time | 104 µs |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 1000 Hz |
Output data
| Output voltage range | 10 V DC ... 30 V DC |
|---|---|
| Limiting continuous current | 2 A (see derating curve) |
| Peak offstate voltage | 35 V DC (Collector-emitter reverse voltage) |
| Voltage drop at max. limiting continuous current | 1.5 V |
| Output circuit | 3-conductor, ground-referenced |
| Status display | LED red |
| Type of protection | Reverse polarity protection |
| Free running | |
| Protective circuit/component | Polarity protection diode |
| Damping diode |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Input voltage (EF003840) | 19.2 V |
| Output voltage (EF003933) | 10 V |
| Rated operation current Ie (EF001443) | 2 A |
| Type of digital output (EF003601) | Electronic |
| With LED indication (EF005950) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN .pdf | 28 Mbytes |
|
