EM-D-8/4-24DC-IFS 2904473 PHOENIX CONTACT Extension module
EM-D-8/4-24DC-IFS
2904473
PHOENIX_CONTACT
Extension module

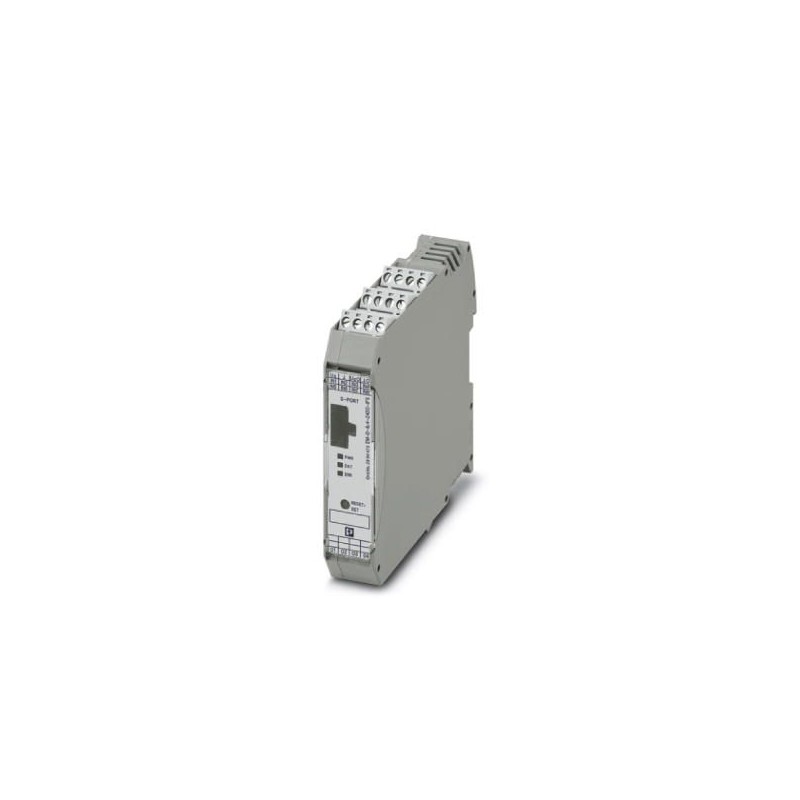

The expansion module offers you digital inputs and outputs for the most complex applications with system interface (IFS) equipment for processing additional signals in the field. Easy connection via rail bus connector as a slave to an IFS link gateway.
PLC's > Fieldbus, decentr. periphery - digital I/O module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2904473 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 17 (C-5-2017) |
| GTIN | 4046356826051 |
| Weight per Piece (excluding packing) | 99.990 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Device supply
| Rated control circuit supply voltage US | 24 V DC -20 % ... +25 % |
|---|---|
| Rated control supply current IS | 85 mA (plus load current of the outputs) |
| Protective circuit | Reverse polarity protection |
| Surge protection |
Digital inputs
| Number | 8 |
|---|---|
| Rated actuating voltage UC | 24 V DC ±20 % |
| Rated actuating current IC | 3 mA |
| Protective circuit | Reverse polarity protection |
Digital outputs
| Designation | Switching outputs |
|---|---|
| Number | 4 |
| Note on protection circuit | Fusing with max. 8 A F-fuse |
| Residual voltage | 1 V |
| Maximum switching voltage | 23 V DC (UB- Uresid.of the output) |
| Max. switching current | 500 mA (per output) |
| Protective circuit | Parallel protection against polarity reversal, pay attention to the fuse |
Connection data supply
| Connection name | Supply |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 2 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 12 ... 24 |
Service interface
| Connection name | Programming connection |
|---|---|
| Connection method | S-PORT (socket) |
| Number of connections | 1 |
| Number of positions | 12 |
Connection data INTERFACE system
| Connection name | INTERFACE system |
|---|---|
| Connection method | DIN rail bus connectors |
| Number of connections | 1 |
| Number of positions | 5 |
General
| Operating mode | 100% operating factor |
|---|---|
| Degree of protection | IP20 |
| Standards/regulations | EN 61131-2 |
| Degree of pollution | 2 |
| Overvoltage category | III |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Mounting type | DIN rail mounting |
| Housing material | Polyamide PA non-reinforced |
| Color | gray |
Serial interface
| Interface 1 | IFS interface |
|---|---|
| Serial transmission speed | 76.8 kbps |
| Connection method | DIN rail bus connectors |
Ambient conditions
| Ambient temperature (operation) | -35 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -35 °C ... 80 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027242604eCl@ss 4.127242604eCl@ss 5.027242604eCl@ss 5.127379100eCl@ss 6.027242600eCl@ss 7.027242604eCl@ss 8.027242604eCl@ss 9.027242604
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of digital inputs (EF001992) | 8 |
| Number of digital outputs (EF001993) | 4 |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | No |
| Input current at signal 1 (EF001428) | 0.003 mA |
| Permitted voltage at input (EF007554) | 19.2 V |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | Other |
| Output current (EF003202) | 0.5 A |
| Type of output voltage (EF008222) | DC |
| Short-circuit protection, outputs available (EF003203) | Yes |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | No |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | Yes |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Type of electric connection (EF003961) | Screw connection |
| Time delay at signal change (EF002382) | 0 ms |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| SIL according to IEC 61508 (EF009889) | None |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 22.65 mm |
| Height (EF000040) | 108.028528 mm |
| Depth (EF000049) | 113.801091 mm |
