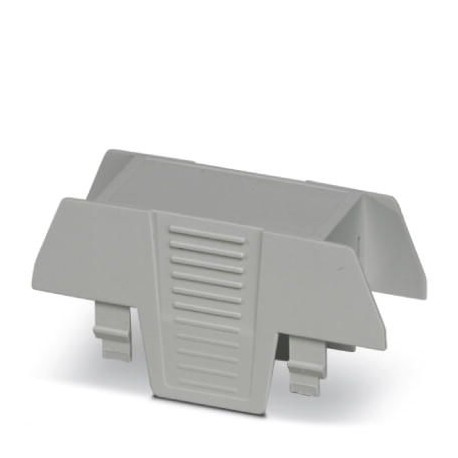

EH 22,5-C DS/ABS 2202199 PHOENIX CONTACT Upper part of housing
EH 22,5-C DS/ABS
2202199
PHOENIX_CONTACT
10
Upper part of housing

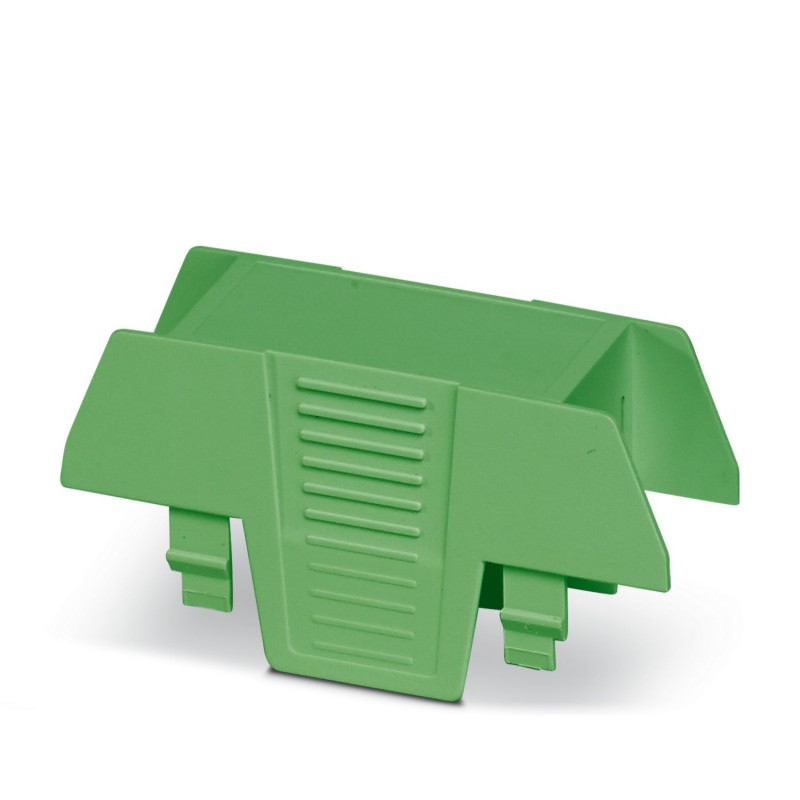

Rail box, Top of housing, tall design, connection hole on both sides, width: 22.6 mm, height: 75.26 mm, depth: 36.95 mm, color: green (6021)
DIN rail housing, Upper housing part, tall design, connection opening on both sides, width: 22.6 mm, height: 75.26 mm, depth: 36.95 mm, color: green (similar RAL 6021)
Low-voltage industrial components > Extruded profile modular housing
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Assembly note | Refer to the data sheet for the range in the download area. |
| Product type | Upper housing part |
| Housing type | DIN rail housing |
| Housing series | EH |
| Product family | EH..ABS.. |
| Max. number of positions | 10 (pitch: 3.5 mm) |
| Type | Upper housing part, tall design, connection opening on both sides |
| Ventilation openings present | no |
| Data management status | |
| Article revision | 00 |
| Dimensional drawing |  |
| Width | 22.6 mm |
| Height | 75.26 mm |
| Depth | 36.95 mm |
| Depth from base support surface | 19.95 mm |
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | HB |
| Housing material | ABS |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 80 °C |
| Relative humidity (storage/transport) | 95 % |
| Type of PCB mount | Latching |
| Mounting type | Snap in |
| Feature Name | Feature Value |
|---|---|
| Type of enclosure (EF003086) | Closed |
| Housing connectable (EF003088) | No |
| Suitable for rail mounting (EF003972) | No |
| Wall mounting possible (EF003973) | No |
| With integrated PCB-mounting connection system (EF003087) | No |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
| Colour (EF000007) | Green |
| RAL-number (EF000116) | 6021 |
| Width (EF000008) | 22.6 mm |
| Height (EF000040) | 75.26 mm |
| Depth (EF000049) | 36.95 mm |
