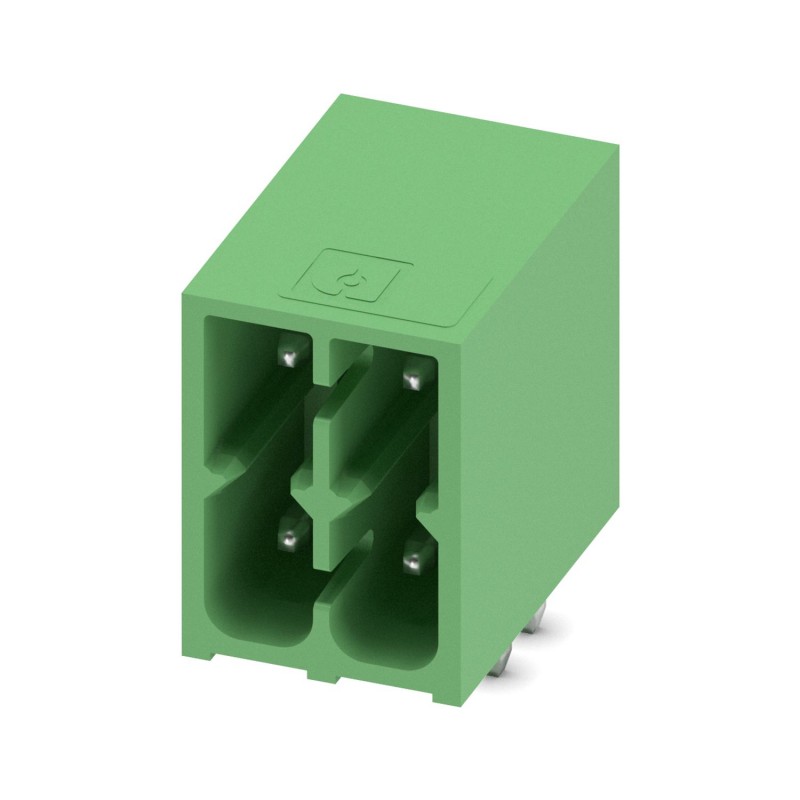

DMC 1,5/ 2-G1-3,5 P35 1053808 PHOENIX CONTACT Housing base for printed circuit board, nominal current: 8 A, ..
DMC 1,5/ 2-G1-3,5 P35
1053808
PHOENIX_CONTACT
50
Housing base for printed circuit board, nominal current: 8 A, voltage and sizing (III/2): 160 V, number of poles: 2, pitch: 3.5 mm, color: green, surface of contact: Tin, assembly: wave Soldering
Printed circuit board base housing, nominal section: 1.5 mm², color: green, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 2, number of poles: 2, number of connections: 4, family of articles: DMC 1.5/.. -G1, pitch: 3.5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 1.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed
PCB base socket, nominal cross-section: 1.5 mm2, colour: green, rated current: 8 A, dimensioning voltage (III/2): 160 V, contact surface: Sn, contact connection type: plug, number of potentials: 4, number of rows: 2, number of poles: 2, number of connections: 4, product series: DMC 1.5/.. -G1, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug system: COMBICON DFMC 1.5, Insertion pin orientation: Standard, locking: none, fastening type: none, packaging type: packed in carton
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Basic socket for printed circuit boards |
| Product Family | DMC 1.5/.. -G1 |
| Product Line | COMBICON Connectors S |
| Number of poles | 2 |
| Step | 3.5 mm |
| Number of connections | 4 |
| Number of rows | 2 |
| Number of potentials | 4 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 1 |
| Data maintenance status | |
| Article review | 00 |
| Rated Current IN | 8 A |
| Rated voltage UN | 160 V |
| Mass Resistivity | 3 mΩ |
| Sizing voltage (III/3) | 160 V |
| Sizing impulse voltage (III/3) | 2.5 kV |
| Sizing voltage (III/2) | 160 V |
| Sizing Impulse Voltage (III/2) | 2.5 kV |
| Sizing voltage (II/2) | 250 V |
| Sizing Impulse Voltage (II/2) | 2.5 kV |
| Mounting type | Wave Soldering |
| Pin Layout | Linear Pinning |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Galvanic tin plating |
| Metal surface contact zone (surface layer) | Tin (4 - 8 μm Sn) |
| Metal surface contact area (middle layer) | Nickel (1.5 - 4 μm Ni) |
| Metal Surface Welding Area (Surface Layer) | Tin (4 - 8 μm Sn) |
| Metal Surface Weld Area (Middle Layer) | Nickel (1.5 - 4 μm Ni) |
| Material information - case | |
| Color (Case) | Green (6021) |
| Insulation material | PBT |
| Insulation Material Group | IIIa |
| CTI according to IEC 60112 | 225 |
| Combustibility class according to UL 94 | V0 |
| Dimensioned Drawing |  |
| Step | 3.5 mm |
| Width [w] | 7.8 mm |
| Height [h] | 14.3 mm |
| Length [l] | 11.6 mm |
| Installation Height | 10.8 mm |
| Weld Shank Length [P] | 3.5 mm |
| Shank sizes | 0.8 x 0.8 mm |
| Printed circuit board design | |
| Shank Distance | 2.50 mm |
| Bore diameter | 1.2 mm |
| Visual inspection | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Test passed |
| Dimensional control | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Test passed |
| Resistance of lettering | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Test passed |
| Polarization and encoding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Test passed |
| Contact holder in use | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Areas of application for contact holders Application >20 N | Test passed |
| Insertion/tensile force | |
| Result | Test passed |
| Number of cycles | 25 |
| Insertion force per pole approx. | 3 N |
| Tensile force per pole approx. | 2 N |
| Thermal Test Control Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 20 |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | IIIa |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 225 |
| Rated insulation voltage (III/3) | 160 V |
| Rated impulse voltage (III/3) | 2.5 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 1.5 mm |
| Minimum creepage value (III/3) | 2.5 mm |
| Rated Isolation Voltage (III/2) | 160 V |
| Rated impulse voltage (III/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 1.5 mm |
| Minimum creepage value (III/2) | 1.6 mm |
| Rated Isolation Voltage (II/2) | 250 V |
| Rated Impulse Voltage (II/2) | 2.5 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 1.5 mm |
| Minimum creepage value (II/2) | 2.5 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep Speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axle | 2.5 h |
| Test Directions | X, Y, and Z axis |
| Electrical life control | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Vertical impulse tension above sea level | 2.95 kV |
| Mass Resistivity R1 | 3 mΩ |
| Mass Resistivity R2 | 3.5 mΩ |
| Manoeuvring cycles | 25 |
| Climate control | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Stress due to corrosion | 0.2 dm3KNOW2on 300 dm3/40 °C/1 cycle |
| Stress due to the effect of heat | 105 °C/168 h |
| Fixed AC voltage | 1.39 kV |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 4 |
| Number of plug-in contact rows (EF006935) | 2 |
| Modular spacing contacts (EF007326) | 3.5 mm |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 160 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.2 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
