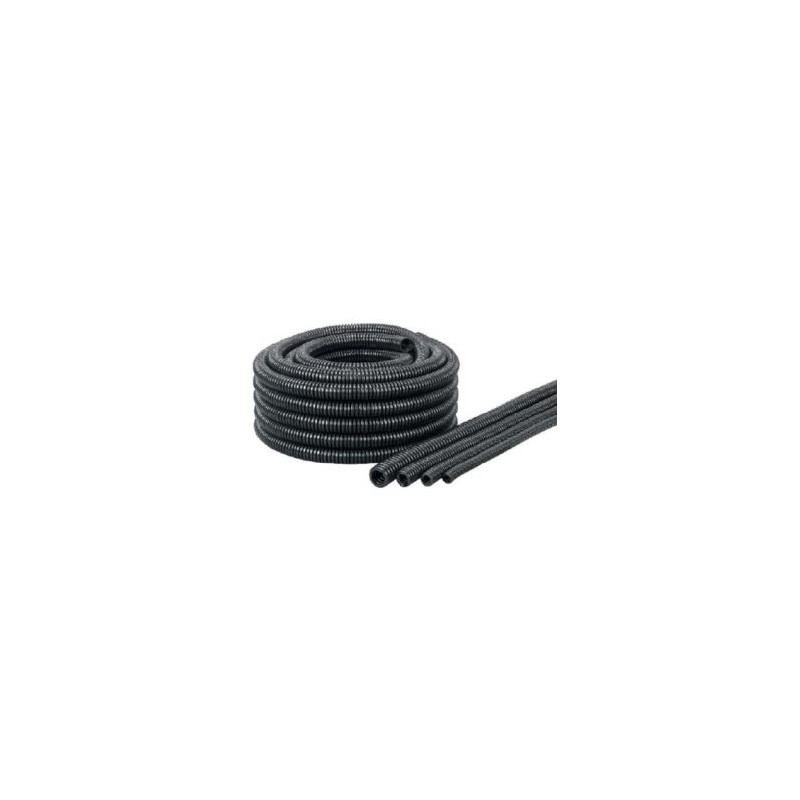

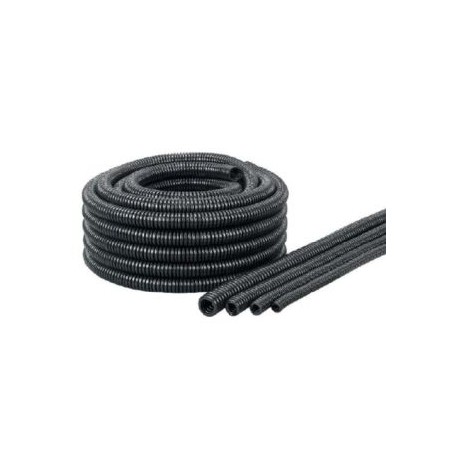

83980092 MURRPLASTIK Conduits and fitting systems Type EW-PA-LS Standard corrugation
83980092
MURRPLASTIK
50
Conduits and fitting systems Type EW-PA-LS Standard corrugation
EW-PA-LS M25/P21 Murrflex, sw
Type EW-PA-LS
Corrugated pipes and fittings
Brand new product in its original packaging covered by the warranties and certifications provided by MURRPLASTIK
Best sellers
▲More info
▲simple, lightweight version - for the installation of pre-assembled cables
flexible conduit for simple dynamic applications
medium mechanical load
resource-saving through recycled material
for mechanical engineering and chemical plants
Halogen-free
-40°C – 120°C, short term 160°C
acc. to UL94 HB
| Type | Order No. | Colour | A Ø mm | B Ø mm | R stat. mm | Weight kg/100m | MOQ m | ||
|---|---|---|---|---|---|---|---|---|---|
Standard corrugation | |||||||||
| EW-PA-LS-06 | 83163850 | Black | 6.6 | 10 | 21 | 2.2 | 50 | ||
| EW-PA-LS-M10/P7 | 83163851 | Black | 8.5 | 11.4 | 24 | 2.5 | 50 | ||
| EW-PA-LS-M12/P9 | 83163852 | Black | 9.8 | 13 | 26 | 2.8 | 50 | ||
| EW-PA-LS-M16/P11 | 83163854 | Black | 12.3 | 15.8 | 38 | 3.8 | 50 | ||
| EW-PA-LS-M20/P16 | 83163856 | Black | 15.8 | 21 | 55 | 5.8 | 50 | ||
| EW-PA-LS-M25/P21 | 83980092 | Black | 22.5 | 28.5 | 59 | 9.0 | 50 | ||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG MURRPLASTIKS CONDUIT AND FITTING SYSTEMS EN.pdf | 11 Mbytes |
|
| 83980092 83980092 EN_83980092.pdf | 867 Kbytes |
|
