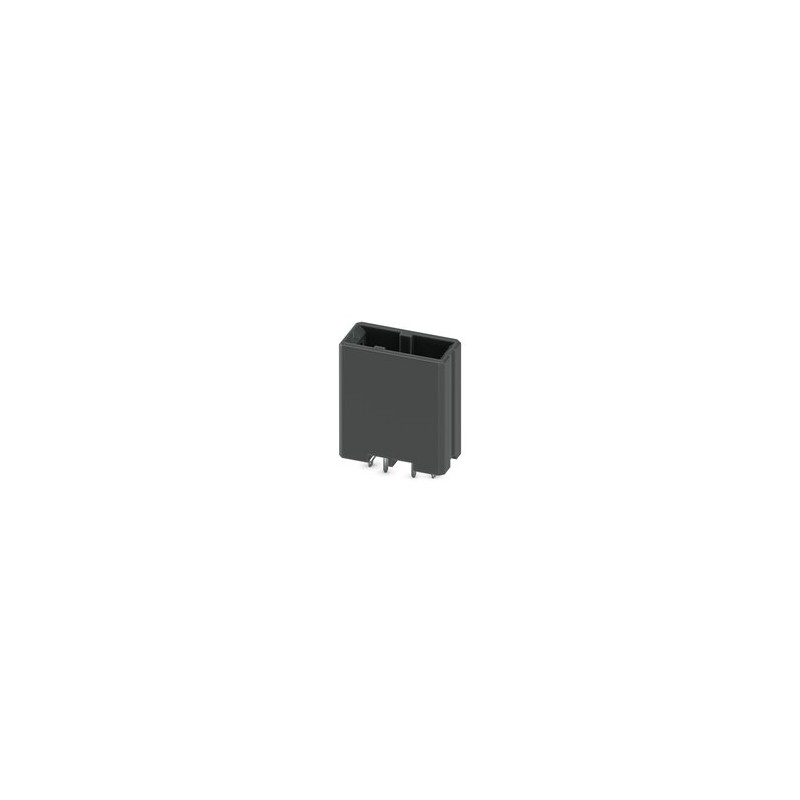

D32H 2,2/ 2-V-5,08-Y 1378286 PHOENIX CONTACT Printed circuit board base housing, color: black, rated current..
D32H 2,2/ 2-V-5,08-Y
1378286
PHOENIX_CONTACT
100
Product on demand only, returns will not be accepted.
Printed circuit board base housing, color: black, rated current: 8 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Male, number of rows: 1, number of poles: 2, item family: D32H 2.2/.. -V, pitch: 5.08 mm, connection type: Crimp connection, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.8 mm, number of potential welding pins: 1, plug-in system: CONNEXIS D, Plug-in face orientation: Standard, locking: Snap-in lock, fixing type: Socket protrusion, packaging type: Boxed Packaging
PCB base housing, color: black, rated current: 8 A, rated voltage (III/2): 320 V, surface contacts: tin, contact type: Male, number of rows: 1, number of poles: 2, item family: D32H 2,2/.. -V, pitch: 5.08 mm, connection type: Crimped connection, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: CONNEXIS D, Pluggable Face Orientation: Standard, Lock: Lace Lock, Fixing Type: Lace Protrusion, Packing Type: Boxed Packaging
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Line | CONNEXIS Connectors M |
| Product Type | Printed circuit board base housing |
| Product Family | D32H 2,2/.. -V |
| Number of poles | 2 |
| Step | 5.08 mm |
| Number of rows | 1 |
| Pin Design | Linear Pin Arrangement |
| Number of Solder Pins Per Potential | 1 |
| Nominal Current IN | 8 A |
| Nominal voltage UN | 320 V |
| Degree of pollution | 3 |
| Contact resistance | 0.9 mΩ |
| Sizing voltage (III/3) | 250 V |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning voltage (III/2) | 320 V |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 600 V |
| Dimensioning transient voltage (II/2) | 4 kV |
| Type of mounting | Wave soldering |
| Pin Design | Linear Pin Arrangement |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Galvanically tinned |
| Metal surface contact area (top layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Contact Area (Middle Layer) | Nickel (1.3 - 3 μm Ni) |
| Metal surface weld area (top layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Welding Area (Middle Layer) | Nickel (1.3 - 3 μm Ni) |
| Material data - housing | |
| Color (Housing) | Black (9005) |
| Insulating material | PBT |
| Insulating material group | Ii |
| CTI according to IEC 60112 | 400 ≤ CTI |
| Flammability class according to UL 94 | V0 |
| Note on contact | These are connectors without switching capability (COC) according to DIN EN 61984. In the event of use as prescribed, they must not be plugged in or unplugged under voltage or load. |
| Dimension Scheme |  |
| Step | 5.08 mm |
| Width [w] | 19.08 mm |
| Height [h] | 25.4 mm |
| Length [l] | 9.35 mm |
| Overall Height | 21.6 mm |
| Weld Pin Length [P] | 3.8 mm |
| Printed circuit board design | |
| Hole diameter | 1.1 mm |
| 2 mm | |
| Eye Exam | |
| Test Specification | DIN EN 60512-1-1:2003-01 |
| Result | Approved Test |
| Dimensional Examination | |
| Test Specification | DIN EN 60512-1-2:2003-01 |
| Result | Approved Test |
| Resistance of the signs | |
| Test Specification | DIN EN 60068-2-70:1996-07 |
| Result | Approved Test |
| Polarization & Coding | |
| Test Specification | DIN EN 60512-13-5:2006-11 |
| Result | Approved Test |
| Used contact holder | |
| Test Specification | DIN EN 60512-15-1:2009-03 |
| Contact Holder Used Requirement >20 N | Approved Test |
| Forces when plugging in and unplugging | |
| Result | Approved Test |
| Number of cycles | 25 |
| Plug-in force approx. | 4 N |
| Power when unplugging by pole approx. | 4 N |
| Thermal Test | Test Group C | |
| Test Specification | DIN EN 60512-5-1:2003-01 |
| Number of poles tested | 10 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | IEC 60664-1:2020-05 |
| Insulating material group | Ii |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI ≥400 to <600 |
| Sizing Insulation Voltage (III/3) | 250 V |
| Nominal transient voltage (III/3) | 4 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 3 mm |
| Minimum creepage line value (III/3) | 3.6 mm |
| Sizing Insulation Voltage (III/2) | 320 V |
| Nominal transient voltage (III/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 3 mm |
| Minimum creepage line value (III/2) | 3 mm |
| Sizing Insulation Voltage (II/2) | 600 V |
| Nominal transient voltage (II/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 3 mm |
| Minimum creepage line value (II/2) | 4.5 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 50 m/s² (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Durability Test | |
| Test Specification | DIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12 |
| Bearable shock voltage at sea level | 4.8 kV |
| Contact Resistance R1 | 0.9 mΩ |
| Contact Resistance R2 | 1 mΩ |
| Plug Cycles | 25 |
| Climate Essay | |
| Test Specification | DIN EN ISO 6988:1997-03 |
| Corrosion fatigue | 0.2 dm3UNDER2in 300 dm3/40 °C/1 cycle |
| Thermal stress | 105 °C/168 h |
| Bearable AC voltage | 2.21 kV |
| Crash | |
| Test Specification | DIN EN 60068-2-27 (VDE 0468-2-27):2010-02 |
| Shock Type | Semi-sinusoid |
| Acceleration | 30g |
| Duration of the crash | 11 ms |
| Test Directions | X, Y, and Z axes (pos. and neg.) |
| Environmental conditions | |
| Ambient Temperature (Service) | -55 °C ... 105 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Type of packaging | Boxed Packaging |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 8 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 3.8 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -55 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
