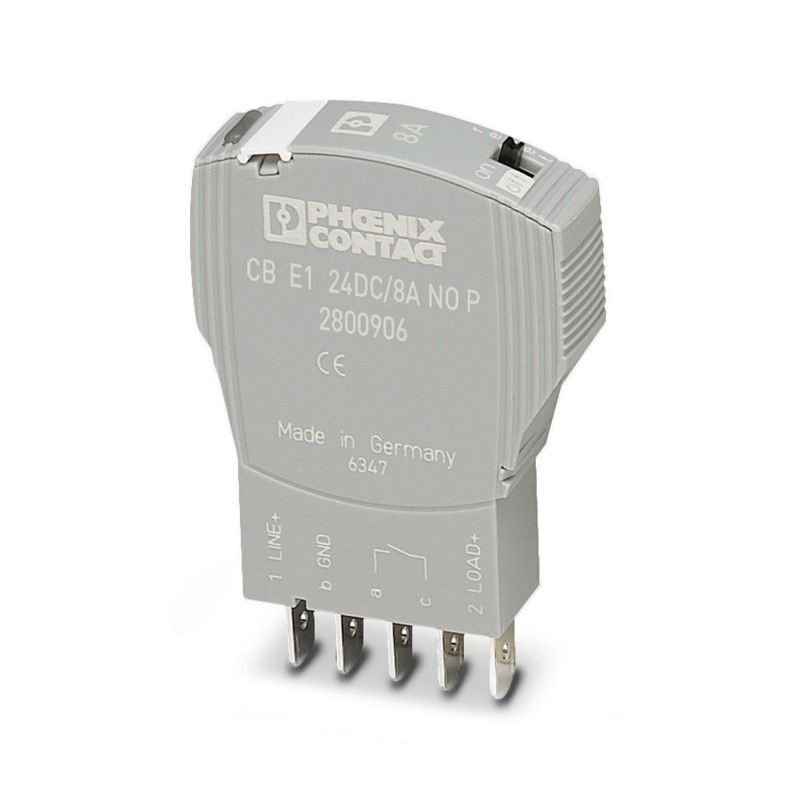

CB E1 24DC/8A NO P 2800906 PHOENIX CONTACT Electronic device circuit breaker
CB E1 24DC/8A NO P
2800906
PHOENIX_CONTACT
Electronic device circuit breaker
Interruption. Protec. Electronic, 1 pole, active current limiter, 1 NO contact, connector for base element.
Electronic circuit breaker, 1-pole, active current limiter, 1 normally open contact, plug for base element.
Circuit breakers and fuses > Device circuit breaker
Over Current Protection
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2800906 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356690768 |
| Weight per Piece (excluding packing) | 36.400 g |
| Custom tariff number | 85362010 |
| Country of origin | DE (Germany) |
Dimensions
| Height | 45 mm |
|---|---|
| Width | 12.3 mm |
| Depth | 52 mm |
| Complete module height | 90 mm |
| Complete module width | 12.3 mm |
| Complete module depth | 77.3 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Humidity test | 96 h, 95% RH, 40°C |
| Vibration (operation) | 3g (In accordance with IEC 60068-2-6, Test Fc) |
| Degree of protection | IP30 (Actuation area) |
General
| Flammability rating according to UL 94 | V0 |
|---|---|
| Mounting type | on base element |
| Color | gray |
| Number of positions | 1 |
| Degree of pollution | 2 |
| Type | Male |
Electrical data
| Fuse type | electronic |
|---|---|
| Rated surge voltage | 0.5 kV |
| Operating voltage | 24 V DC |
| 18 V DC ... 30 V DC | |
| Nominal current IN | 8 A |
| Active current limitation | typ. 1.25 x IN |
| Closed circuit current I0 | typ. 8 mA (When switched on) |
| typ. 17 mA (With alarm output) | |
| Power dissipation | 1.21 W (Nominal operation) |
| Temperature derating | 7.2 A (at 50 °C) |
| Tripping method | E (electronic) |
| Required backup fuse | not required, integrated failsafe element |
| Dielectric strength | max. 30 V DC (Load circuit) |
| Voltage drop | 100 mV (at IN) |
| Shutdown time load circuit | 100 ms (see time/current characteristic curve) |
| Undervoltage shutdown load circuit | < 14 V (typ. OFF) |
| > 17 V (typ. ON) | |
| Max. capacitive load load circuit | 20000 µF |
| Auxiliary type of contact | floating signal contact |
| Minimum auxiliary contact operating voltage | 10 V DC |
| Maximum auxiliary contact operating voltage | 30 V DC |
| Minimum auxiliary contact operating current | 10 mA |
| Maximum auxiliary contact operating current | 0.5 A |
Standards and Regulations
| Standards/specifications | UL 2367 UL recognized |
|---|---|
| UL 508 UL/C-UL listed | |
| EMV EN 61000-6-3 Interference emission | |
| EMV EN 61000-6-2 Noise immunity |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027141116eCl@ss 4.127141116eCl@ss 5.027141116eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141116eCl@ss 8.027141116eCl@ss 9.027141116
| Feature Name | Feature Value |
|---|---|
| Inflammability class of insulation material according to UL94 (EF002521) | Other |
| Number of poles (EF001391) | 1 |
| Construction type (EF000767) | Plug |
| Width (EF000008) | 12.3 mm |
| Height (EF000040) | 45 mm |
| Depth (EF000049) | 52 mm |
| Mounting method (EF000003) | Other |
| Operating voltage (EF000111) | 30 V |
| Nominal current (EF000001) | 8 A |
| Active current limitation x IN (EF011922) | 1.25 |
| Fuse type (EF011923) | Electronic |
| Fail safe element (EF011924) | 15 A |
| Switch-off time (EF011925) | 0.1 ms |
| Max. capacitive load (EF011926) | 0.02 µF |
| With remote signalling contact (EF000422) | No |
| Ambient temperature during operating (EF007515) | -25 °C |
