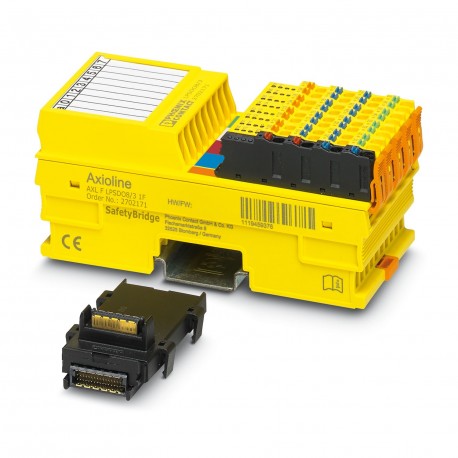

AXL F LPSDO8/3 1F 2702171 PHOENIX CONTACT Safety module
AXL F LPSDO8/3 1F
2702171
PHOENIX_CONTACT
Safety module
Safety-oriented digital output module, IP20 degree of protection, for the SafetyBridge system. The module has 4 secure digital outputs with two-channel occupancy or 8 secure digital outputs with single-channel occupancy
Axioline F, Digital Output Module, Functional Safety, SafetyBridge Solution, Digital Outputs: 4 (With 2-channel assignment), 8 (With 1-channel assignment), 2 A, protection rating: IP20
PLC's > Fieldbus, decentr. periphery - digital I/O module
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2702171 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 300 (C-6-2017) |
| GTIN | 4055626004983 |
| Weight per Piece (excluding packing) | 222.000 g |
| Custom tariff number | 85389091 |
| Country of origin | DE (Germany) |
Dimensions
| Dimensional drawing | |
|---|---|
| Width | 53.6 mm |
| Height | 126.1 mm |
| Depth | 54 mm |
| Note on dimensions | Housing dimensions |
Ambient conditions
| Ambient temperature (operation) | -35 °C ... 60 °C (Mounting position: any) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 75 % (on average, 85% infrequently, non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 75 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 108 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
| Degree of protection | IP20 |
Digital outputs
| Output name | Digital outputs |
|---|---|
| Connection method | Direct plug-in technology |
| Connection technology | 2, 3-wire |
| Number of outputs | 4 (with two-channel assignment) |
| 8 | |
| Type of protection | Overload protection, freewheeling circuit for inductive loads, Discharge circuit for accelerated discharge of capacitive loads |
| Output voltage | 24 V DC |
| Output current | max. 2 A (per channel) |
| max. 1.5 A (per channel according to CULUS) | |
| max. 4 A (per group) | |
| max. 3 A (per group according to CULUS) | |
| max. 8 A (Total current of all outputs; Please observe the notes in the user manual.) | |
| max. 6 A (Total current of all outputs according to CULUS) | |
| Maximum output current per channel | 2 A |
| Maximum output current per module / terminal block | 8 A |
General
| Mounting type | DIN rail |
|---|---|
| Net weight | 222 g |
| Note on weight specifications | with connectors and bus base module |
Axioline potentials
| Designation | Axioline F local bus supply (UBus) |
|---|---|
| Supply voltage | 5 V DC (via bus base module) |
| Current consumption | typ. 260 mA (all outputs set; power supply by UOof 19.2 V DC to 30.2 V DC) |
| max. 280 mA | |
| Designation | Supply for digital output modules (UO) |
| Supply voltage | 24 V DC |
| Supply voltage range | 19.2 V DC ... 30.2 V DC (including all tolerances, including ripple) |
| Current consumption | typ. 25 mA (all outputs set; power supply by UOwith 30.2 V DC; without power supply to the actuator) |
| Type of protection | Protection against polarity reversal, EMC protective circuit, undervoltage detection |
SafetyBridge properties
| Connection to I/O modules | max. 16 (safe digital I/O modules) |
|---|---|
| Logic memory | 30 kByte |
Safety-related characteristic data
| Designation | IEC 61508 - High demand |
|---|---|
| Safety Integrity Level (SIL) | max. 3 (two channel; dependent in parameterization and wiring) |
| Designation | IEC 61508 - Low demand |
| Safety Integrity Level (SIL) | max. 3 (two channel; dependent in parameterization and wiring) |
| Designation | EN ISO 13849 |
| Performance level (PL) | max. e (two channel; dependent in parameterization and wiring) |
| Category | max. 4 (two channel; dependent in parameterization and wiring) |
| Designation | EN 62061 |
| Safety Integrity Level Claim Limit (SIL CL) | max. 3 (two channel; dependent in parameterization and wiring) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Supply voltage DC (EF007534) | 19.2 V |
| Voltage type (supply voltage) (EF002991) | DC |
| Number of digital inputs (EF001992) | 0 |
| Number of digital outputs (EF001993) | 4 |
| Digital inputs configurable (EF008516) | No |
| Digital outputs configurable (EF008520) | No |
| Type of voltage (input voltage) (EF003033) | DC |
| Type of digital output (EF003601) | None |
| Output current (EF003202) | 2 A |
| Permitted voltage at output (EF007553) | 24 V |
| Short-circuit protection, outputs available (EF003203) | No |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Number of HW-interfaces wireless (EF006933) | 0 |
| Number of HW-interfaces USB (EF003025) | 0 |
| Number of HW-interfaces other (EF003027) | 0 |
| With optical interface (EF003028) | No |
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for TCP/IP (EF003050) | No |
| Supporting protocol for PROFIBUS (EF003052) | No |
| Supporting protocol for CAN (EF003053) | No |
| Supporting protocol for INTERBUS (EF003054) | Yes |
| Supporting protocol for ASI (EF003051) | No |
| Supporting protocol for KNX (EF003055) | No |
| Supporting protocol for Modbus (EF003057) | No |
| Supporting protocol for Data-Highway (EF003058) | No |
| Supporting protocol for DeviceNet (EF003059) | No |
| Supporting protocol for SUCONET (EF003060) | No |
| Supporting protocol for LON (EF003017) | No |
| Supporting protocol for PROFINET IO (EF007525) | No |
| Supporting protocol for PROFINET CBA (EF007524) | No |
| Supporting protocol for SERCOS (EF006657) | No |
| Supporting protocol for Foundation Fieldbus (EF007522) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | No |
| Supporting protocol for DeviceNet Safety (EF007520) | No |
| Supporting protocol for INTERBUS-Safety (EF006662) | No |
| Supporting protocol for PROFIsafe (EF007526) | No |
| Supporting protocol for SafetyBUS p (EF007527) | No |
| Supporting protocol for other bus systems (EF003062) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| Radio standard GSM (EF008524) | No |
| Radio standard UMTS (EF008525) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Time delay at signal change (EF002382) | 0 ms |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | Yes |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 53.6 mm |
| Height (EF000040) | 125.894343 mm |
| Depth (EF000049) | 52.59 mm |
