UFT31W FT-31W PANASONIC Fiber (thru-beam, bending radius R2, M3, 2m, IP67)
UFT31W
FT-31W
FT-31W
PANASONIC
Fiber (thru-beam, bending radius R2, M3, 2m, IP67)
Fiber optic barrier, model "Tough", M3, long. 2m (cuttable), curvat radius. 1mm (R1), IP67, temp. range -40/+60ºC
FT-31W_Thru-beam type Fiber_Threaded Type Fiber_Threaded Type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-31W |
| Part Number | FT-31W |
| Product | Thru-beam type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-31W |
| Part Number | FT-31W |
| Sensing mode | Thru-beam type |
| Fiber type | Threaded type |

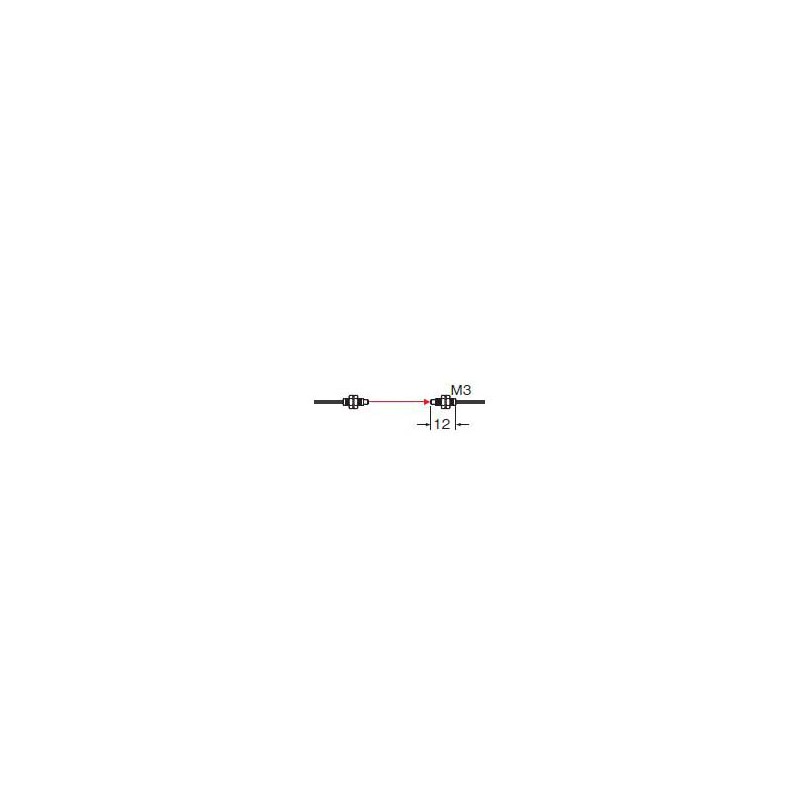

| Fiber head dia. | M3 |
| Fiber head length | 12 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 0.5 mm |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R1 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | FTP-N500,FTP-N1000,FTP-N1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 60 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 260 mm 10.236 in (FX-500 series) |
| Sensing range（HYPR） | 990 mm 38.976 in (FX-500 series) |
| Sensing range（U-LG） | 590 mm 23.228 in (FX-500 series) |
| Sensing range（LONG） | 440 mm 17.323 in (FX-500 series) |
| Sensing range（FAST） | 150 mm 5.906 in (FX-500 series) |
| Sensing range（H-SP） | 53 mm 2.087 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FT31W - FT-31W | FT-31W | 4 Mbytes |
|
| Download general catalog |
|
