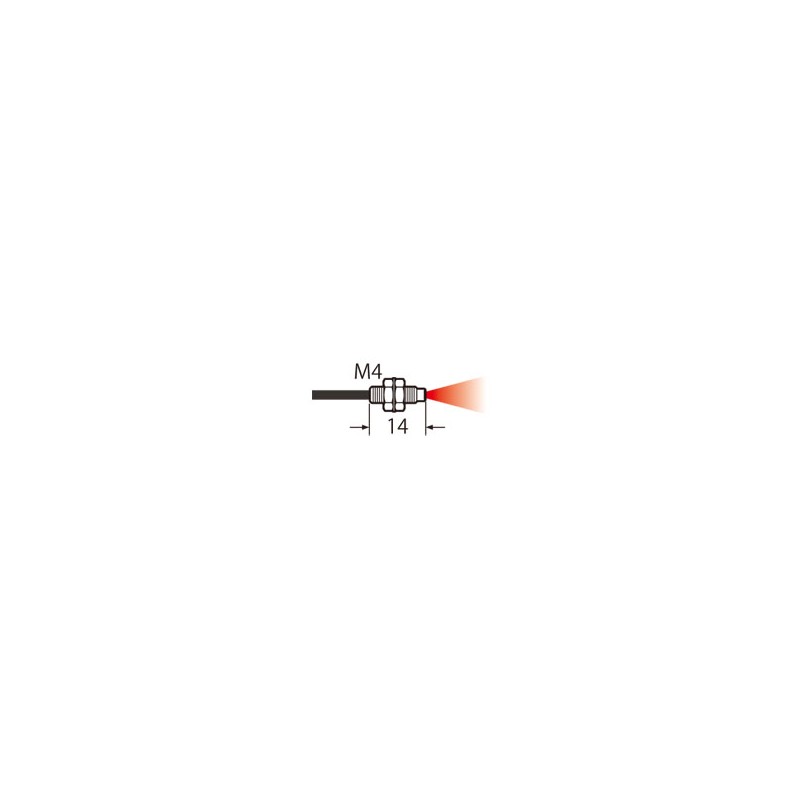

FD-41 PANASONIC Fiber, reflective, M4 head, 2 m cable
FD-41
PANASONIC
Fiber, reflective, M4 head, 2 m cable
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
* Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
More info
▲| Product Number | FD-41 |
| Part Number | FD-41 |
| Product | Reflective type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-41 |
| Part Number | FD-41 |
| Sensing mode | Reflective type |
| Fiber type | Threaded type |
| Fiber head dia. | M4 |
| Fiber head length | 14 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis accuracy : Beam axis position | 150 micro m |
| Beam axis accuracy : Beam axis Inclination | plus or minus 3 degrees |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | FDP-N500,FDP-N1000,FDP-N1500 |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 125 mm 4.921 in (FX-500 series) |
| Sensing range（HYPR） | 515 mm 20.276 in (FX-500 series) |
| Sensing range（U-LG） | 290 mm 11.417 in (FX-500 series) |
| Sensing range（LONG） | 220 mm 8.661 in (FX-500 series) |
| Sensing range（FAST） | 80 mm 3.150 in (FX-500 series) |
| Sensing range（H-SP） | 25 mm 0.984 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| Datasheet 1: FD41 - FD-41 | 4 Mbytes |
 |
| Download general catalog |
|
