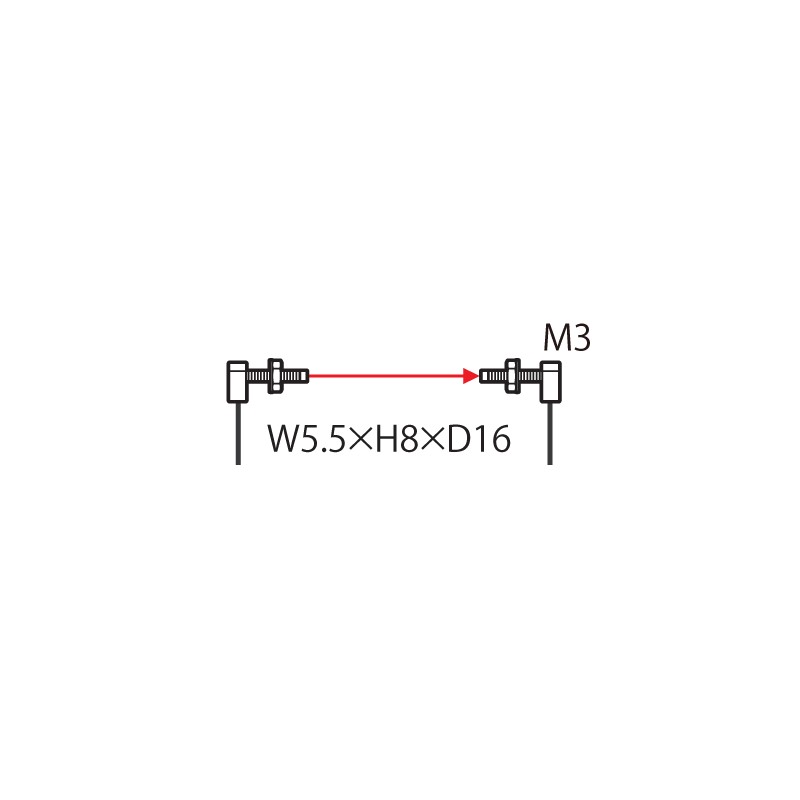

UFTR31 FT-R31 PANASONIC Fiber, Thru-beam type, M3, beam diam. 0.5 mm, 2m, IP67
UFTR31
FT-R31
PANASONIC
Fiber, Thru-beam type, M3, beam diam. 0.5 mm, 2m, IP67
Fiber Optic Flexible Rectangular Head 90° Projection, Barrier, M3, Range 1m, Beam Diameter 0.5mm, Fiber Length 2m, IP67
FT-R31_Thru-beam type Fiber_Square Head Fiber_Square Head type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-R31 |
| Part Number | FT-R31 |
| Product | Thru-beam type Fiber |
| Details | Square Head type Fiber |
| Product name | Square Head Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-R31 |
| Part Number | FT-R31 |
| Sensing mode | Thru-beam type |
| Fiber type | Square head type |
| Fiber head dia. | M3 |
| Fiber head length | W5.5 x H8 x D16 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 0.5 mm |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Semi-custom | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 270 mm 10.630 in (FX-500 series) |
| Sensing range（HYPR） | 1,000 mm 39.370 in (FX-500 series) |
| Sensing range（U-LG） | 580 mm 22.835 in (FX-500 series) |
| Sensing range（LONG） | 440 mm 17.323 in (FX-500 series) |
| Sensing range（FAST） | 160 mm 6.299 in (FX-500 series) |
| Sensing range（H-SP） | 55 mm 2.165 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Download general catalog |
|
