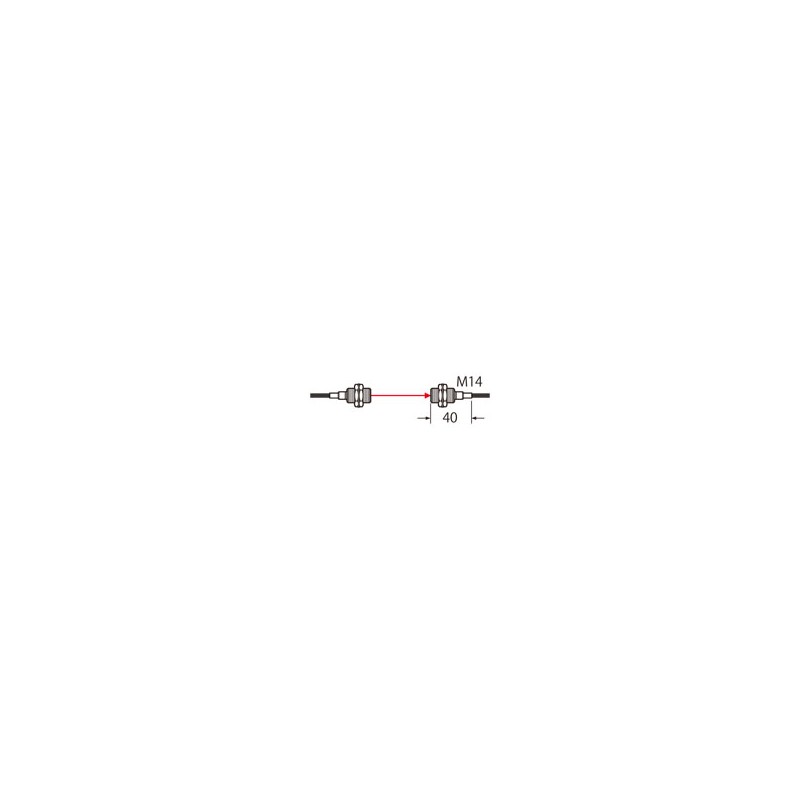

UFT140 FT-140 PANASONIC Fiber (thru-beam, long range, bending radius R4, M14, 10m, IP67)
UFT140
FT-140
FT-140
PANASONIC
Fiber (thru-beam, long range, bending radius R4, M14, 10m, IP67)
Barrier fiber optics, "Tough" model, long range, M14, radius curvat. 4mm (R4), length.10m, IP67, temp.-40/+70ºC range
FT-140_Thru-beam type Fiber_Threaded Type Fiber_Threaded Type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FT-140 |
| Part Number | FT-140 |
| Product | Thru-beam type Fiber |
| Details | Threaded Type Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FT-140 |
| Part Number | FT-140 |
| Sensing mode | Thru-beam type |
| Fiber type | Threaded type Long range |
| Fiber head dia. | M14 |
| Fiber head length | 40 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 10 mm |
| Beam axis accuracy : Beam axis position | - |
| Beam axis accuracy : Beam axis Inclination | - |
| Fiber cable length | 10 m |
| Allowable bending radius | R4 mm |
| Free-cut | Available |
| Mounting lens | Not available |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP67 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 19,600 mm 771.654 in (FX-500 series) |
| Sensing range（HYPR） | 19,600 mm 771.654 in (FX-500 series) |
| Sensing range（U-LG） | 19,600 mm 771.654 in (FX-500 series) |
| Sensing range（LONG） | 19,600 mm 771.654 in (FX-500 series) |
| Sensing range（FAST） | 16,000 mm 629.921 in (FX-500 series) |
| Sensing range（H-SP） | 6,300 mm 248.031 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FT140 - FT-140 | FT-140 | 4 Mbytes |
|
| Download general catalog |
|
