UFD32G FD-32G PANASONIC Fiber (reflective, coaxial, bending radius R2, M3, 2m, IP40)
UFD32G
FD-32G
FD-32G
PANASONIC
Fiber (reflective, coaxial, bending radius R2, M3, 2m, IP40)
Reflex fiber optics. direct M3, coaxial, "Tough" model, lens application, curved radius. 2mm (R2), long.2m, cuttable, detection. up to 1150mm with FX551, temp.-55/+80ºC range, IP40
FD-32G_Reflective type Fiber_Threaded Type Fiber_Small Spot Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-32G |
| Part Number | FD-32G |
| Product | Reflective type Fiber |
| Details | Small Spot Fiber |
| Product name | Threaded Type Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-32G |
| Part Number | FD-32G |
| Sensing mode | Reflective type |
| Fiber type | Threaded type |

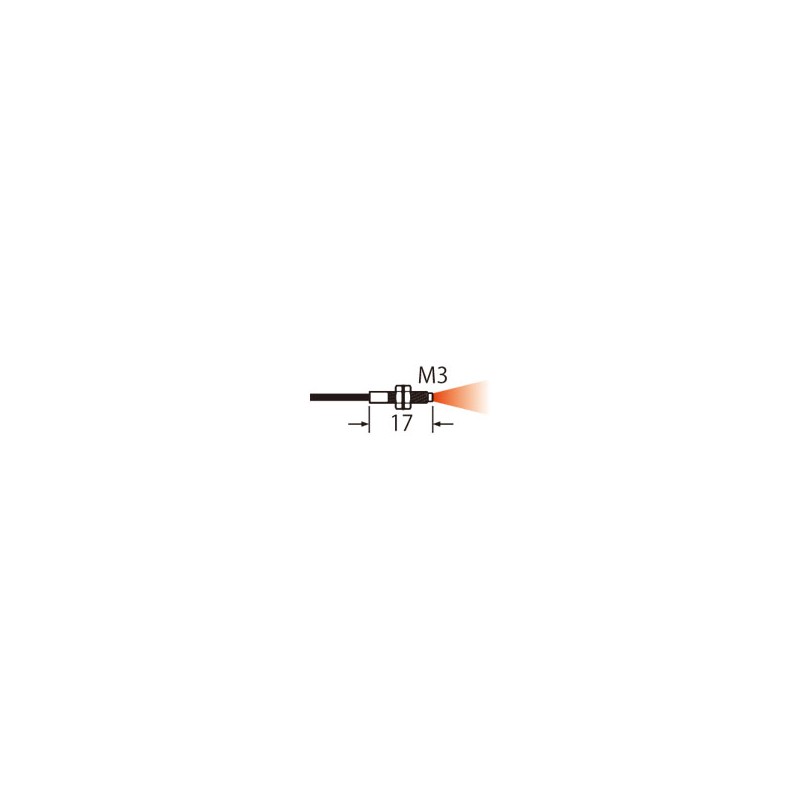

| Fiber head dia. | M3 |
| Fiber head length | 17 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | dia. 0.4mm dia. 0.016 in (FX-MR6), dia. 0.5 mm dia. 0.020 in (FX-MR3), dia. 0.4 mm dia. 0.016 in (FX-MR7), dia. 0.8 to dia. 3.5 mm dia. 0.031 to dia. 0.138 in (FX-MR8), dia. 4.0 mm dia. 0.157 in (FX-MR9) |
| Fiber cable length | 2 m |
| Allowable bending radius | R2 mm |
| Free-cut | Available |
| Semi-custom | Fiber length change |
| Mounting lens | Available |
| Applicable lens | FX-MR6, FX-MR3, FX-MR7, FX-MR8, FX-MR9 |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 80 degrees |
| Environmental resistance : Ambient temperature MIN | -55 degrees |
| Sensing range（STD） | 200 mm 7.874 in (FX-500 series) |
| Sensing range（HYPR） | 650 mm 25.591 in (FX-500 series) |
| Sensing range（U-LG） | 380 mm 14.961 in (FX-500 series) |
| Sensing range（LONG） | 270 mm 10.630 in (FX-500 series) |
| Sensing range（FAST） | 95 mm 3.740 in (FX-500 series) |
| Sensing range（H-SP） | 27 mm 1.063 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Datasheet 1: FD32G - FD-32G | FD-32G | 4 Mbytes |
|
| Download general catalog |
|
