UFDR32EG FD-R32EG PANASONIC Fiber, Reflective type, lens mountable, M3, beam diam. 0.25 mm, 0.5m, IP40
UFDR32EG
FD-R32EG
PANASONIC
Fiber, Reflective type, lens mountable, M3, beam diam. 0.25 mm, 0.5m, IP40
Reflex fiber optics. direct, high precision, rectangular head, 90° projection, M3, coaxial, lens mountable; Detection range. 170 mm (FX500), curved radius. 4mm (R4), long. 0.5 m, temp. range -40º/+70ºC, IP40
FD-R32EG_Reflective type Fiber_Square Head Fiber_Square Head type Fiber
Fiber - PANASONIC > STANDARD type optical fibers - PANASONIC
Brand new product in its original packaging covered by the warranties and certifications provided by PANASONIC
Best sellers
▲More info
▲| Product Number | FD-R32EG |
| Part Number | FD-R32EG |
| Product | Reflective type Fiber |
| Details | Square Head type Fiber |
| Product name | Square Head Fiber |
| Item | Specifications |
|---|---|
| Product Number | FD-R32EG |
| Part Number | FD-R32EG |
| Sensing mode | Reflective type |
| Fiber type | Square head type |
| Fiber head dia. | M3 |

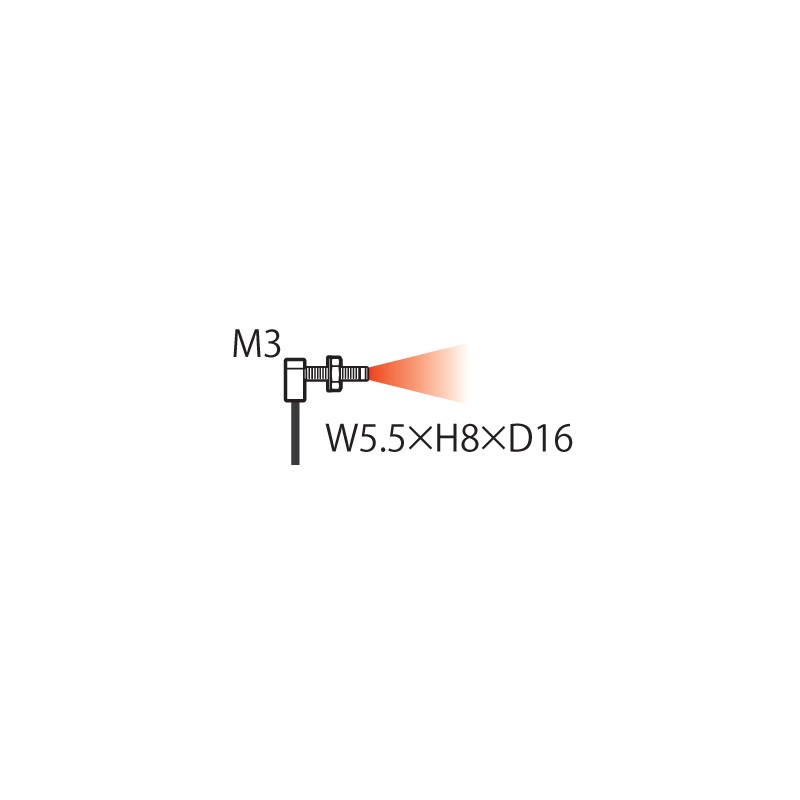

| Fiber head length | W5.5 x H8 x D16 mm |
| With sleeve | No |
| Beam direction | Top-view |
| Beam axis dia./ Spot diameter | Emitter dia. 0.25 mm |
| Fiber cable length | 500 mm |
| Allowable bending radius | R4 mm |
| Free-cut | Not available |
| Semi-custom | Available |
| Mounting lens | Available |
| Applicable lens | FX-MR3,FX-MR6,FX-MR7,FX-MR8,FX-MR9 |
| Mounting protective tube | Not available |
| Application | General-purpose |
| Environmental resistance : Protection | IP40 |
| Environmental resistance : Ambient temperature MAX | 70 degrees |
| Environmental resistance : Ambient temperature MIN | -40 degrees |
| Sensing range（STD） | 45 mm 1.772 in (FX-500 series) |
| Sensing range（HYPR） | 170 mm 6.693 in (FX-500 series) |
| Sensing range（U-LG） | 110 mm 4.331 in (FX-500 series) |
| Sensing range（LONG） | 92 mm 3.622 in (FX-500 series) |
| Sensing range（FAST） | 30 mm 1.181 in (FX-500 series) |
| Sensing range（H-SP） | 9 mm 0.354 in (FX-500 series) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PANASONIC SENSORS EN.pdf | 31 Mbytes |
|
| PDF CATALOGUE PANASONIC EN .pdf | 15 Mbytes |
|
| Download general catalog |
|
